Team Details

Monash Motorsport

University Monash University
AU Melbourne Monash short 51
team logo
LocationMelbourne, Australia
Homepagehttps://www.monashmotorsport.com/
Social Media LinkedIn Instagram YouTube TikTok facebook
CV Team Monash Motorsport
DV Team Monash Motorsport
Short Linktid.fsg.one/910

Team Description

We compete in the Formula SAE competition which sees students design, build, test and race their latest creation against over 1000+ teams worldwide. We are based in Melbourne, Australia and celebrated 25 years in 2024.


Event Profile

Past Events

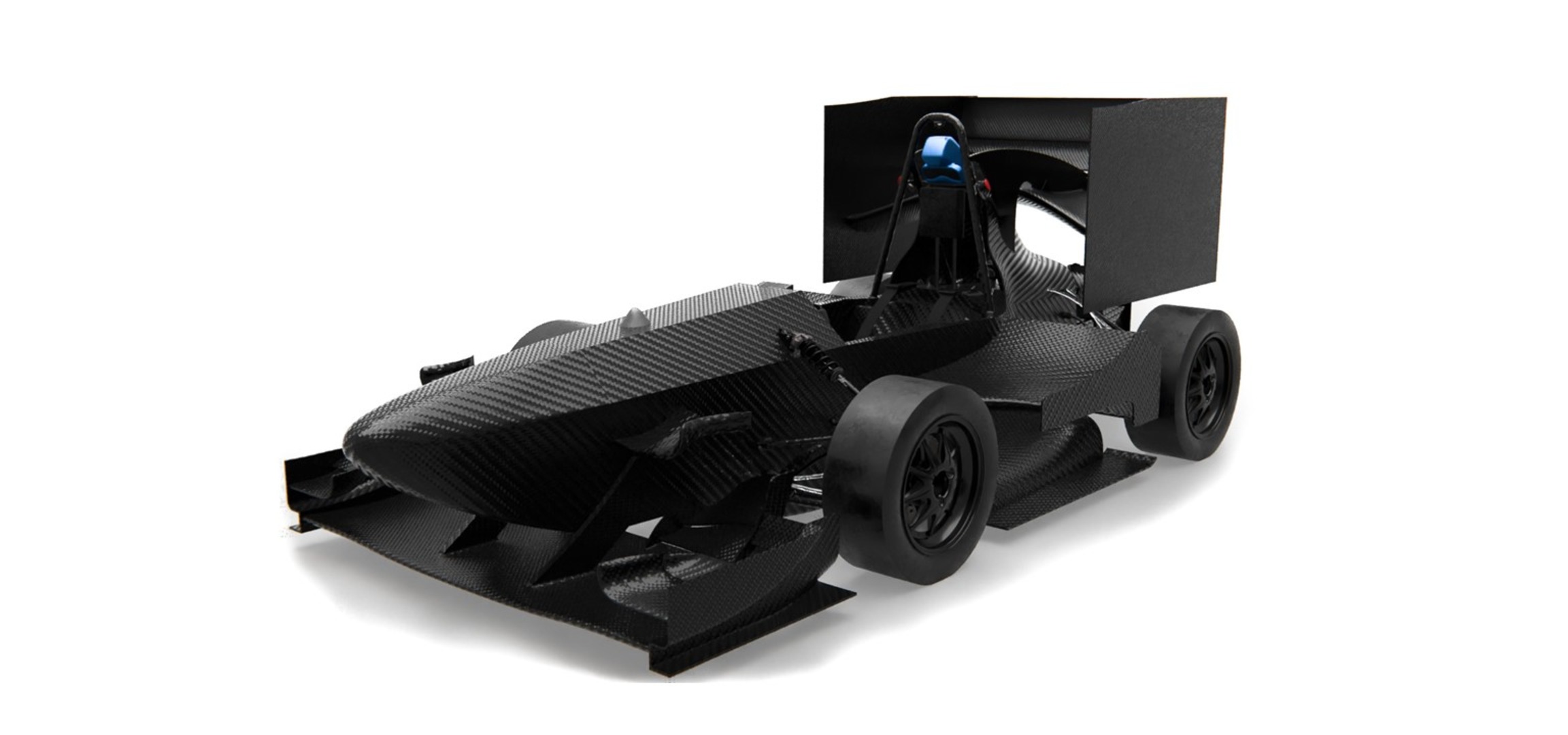

Car 66 – 2024
2024
Car #66
Info
Monash Motorsport (a.k.a MMS) is coming back to Europe! With a team of 120 passionate Australian Engineers we have created our latest car M24. With some serious upgrades consisting of an AWD Outboard Powertrain, DV Integrated system and a new aerodynamics package including DRS, we're ready to race. Our team is excited to get involved with the FS community and meet all the amazing teams so come drop by our pit anytime.
Engineering Design Priorities:
Reliability DV Integration AWD Outboard Powertrain Aero Focussed Monocoque
Car Specifications
General
Frame Construction FRP Monocoque
Material CFRP Prepreg and Al5056 Honeycomb
Overall Length (mm) 3248
Overall Width (mm) 1515
Overall Height (mm) 1191
Wheelbase (mm) 1515
Track Front (mm) 1300
Track Rear (mm) 1300
Weight Front (kg) 152
Weight Rear (kg) 177
Suspension Double unequal length A-Arm. Direct acting spring and damper
Tyres 20.0 x 7.0 R13, Goodyear D2773
Wheels 7.0x13, 2
Drive Type Compound Planetary In Hub Gearbox
Differential N/A
Cooling Rear mounted PWR radiator, 2 x 5.2in puller fans
Brake System 4-Disk, 204mm Diameter Disalloy 80, Adjustable Bias Bar, GP200 1.25in Calipers
Electronics Custom BMS, 4WD Torque Vectoring, Traction Control, Launch Control, Pneumatic DRS
Powertrain
Number of Motors 4
Motor Location Outboards
Max Motor Power 35kW
Motor Type Fischer. TI085-052-070-04B7S-07S04BE2
Max Motor RPM 20.000
Motor Controller Bucher Mobile DCU - EMDAG2603603U
Max System Voltage (V) 504V
Electrode Materials LiCoO2
Accumulator Capacity 6,2kWh
Transmission Ratio Primary 1:15,5
Transmission Ratio Secondary N/A
Driverless System
Processing Units MoTeC M150, Nvidia Jetson Orin, PSOC 5LP (BMS & Autonomous), Teensy 4.0 (BMS)
Processing Units FLOPS 5325 FP32
Processing Units Power (W) 100
Cameras N/A
Radar Sensors N/A
LiDAR Sensors 1 unit, 40m range, HFOV 120°, VFOV 25°
Other Sensors IMU, Magnetometer, Steering angle
DV System Highlights First Australian team entering a driverless competition. Simplicity and reliability based approach, combining EKF SLAM, Delaunay triangulation and Model Predictive Control. NVIDIA computing, pneumatic EBS and Moog motor steering. LiDAR based cone detection, completely colour blind with accuracy up to 40 metres. No Cameras, No Problem.

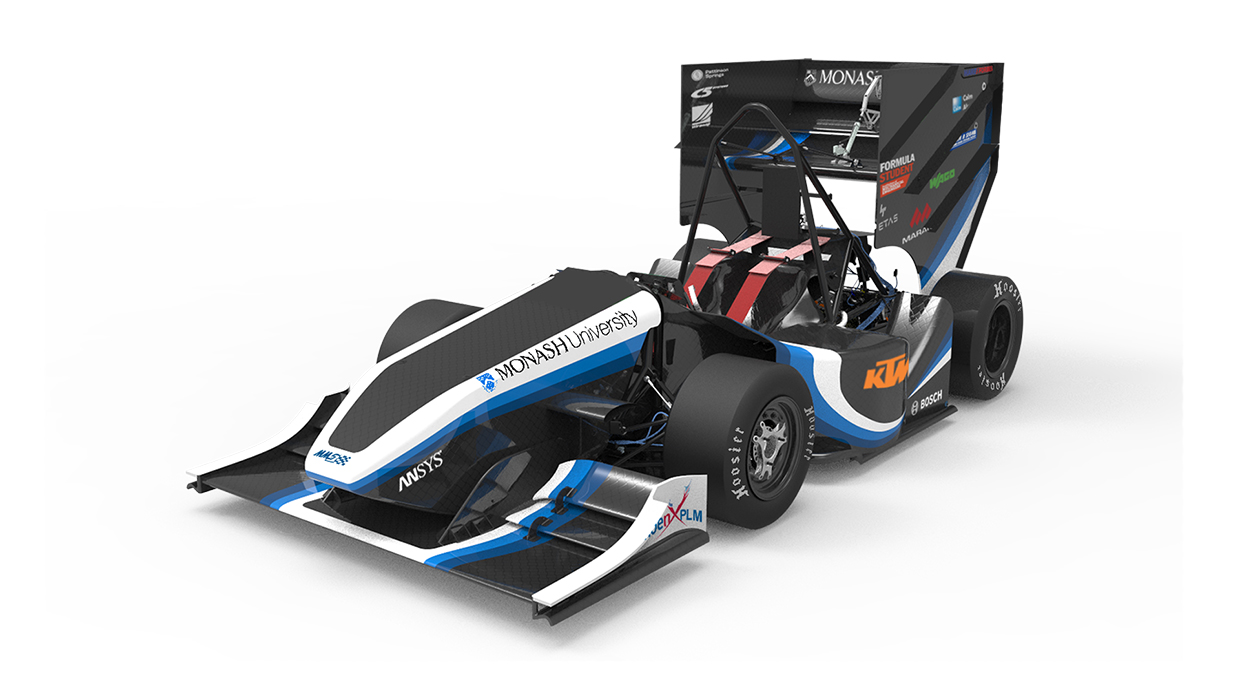

Car 65 – 2018
2018
Car #65
Info
Based in Melbourne, Australia, Monash Motorsport consists of 100+ undergraduate students operating as one team responsible for both an IC and EV car. 2018 will mark the first time Monash competes overseas in both classes, with the goal to maximise the sum of points across the two vehicles. As Monash’s first EV car, M17-E features shared components with its twin, allowing for the prioritisation of testing and tuning the new electrical systems to ensure a consistent and high performing package.
Car Specifications
General
Frame Construction Steel tube spaceframe, CF panel floors, Al rear bulkhead plate, steel rear frame
Material 1020 and 4130 steel tubing, composite panels, 7075-T651, Al rear bulkhead
Overall Length (mm) 2985
Overall Width (mm) 1391
Overall Height (mm) 1185
Wheelbase (mm) 1550
Track Front (mm) 1150
Track Rear (mm) 1150
Weight Front (kg) 145
Weight Rear (kg) 184
Suspension Double unequal length A-Arm. Direct acting spring and damper. Rear anti-roll bar.
Tyres 190x53 R10, Hoosier R25B / 190x53 R10, Hoosier R25B
Wheels 8x10, +3 inch offset, 3 pc CF rim, Al centre / 8x10, 0 inch offset, 3 pc CF rim, Al centre
Drive Type Single reduction 428 pitch chain drive
Differential Drexler Limited Slip, Drive BR: 12:88, Decel BR: 49:51, 30-35Nm preload
Cooling Twin side pod mounted radiators with digitally thermal control of fans
Brake System Outboard 4 disc system, high tensile steel rotors, adjustable brake balance
Electronics Self-designed ECU firmware with active SoC based derating and multi-mode traction control
Powertrain
Number of Motors 1
Motor Location Rear Inboard
Max Motor Power 80
Motor Type Emrax 228 High Voltage Combined Cooling
Max Motor RPM 6500
Motor Controller Bamocar D3-700-400-PG
Max System Voltage (V) 498V
Electrode Materials Li(NiCoMn)O2
Accumulator Capacity 9.96
Transmission Ratio Primary 3.4
Transmission Ratio Secondary n/a

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2025.12
FSAE AU
21
12.
3.
2.
3.
-
-
-
-
-
-
-
0.00
304.80
2024.12
FSAE AU
22
1.
1.
10.
1.
1.
-
2.
-
1.
3.
9.
0.00
862.56
2024.08
FS DE
79
14.
3.
1.
8.
34.
11.
20.
11.
18.
-
-
0.00
494.52
2024.08
FS East
32
6.
11.
12.
2.
-
-
11.
-
13.
7.
-
0.00
505.71
2024.07
FS AT
38
16.
-
18.
8.
12.
-
11.
-
14.
-
-
0.00
289.40
2024.07
FS NL
31
5.
9.
17.
6.
10.
-
9.
-
-
4.
4.
0.00
531.07
2023.12
FSAE AU
22
5.
1.
4.
2.
5.
-
2.
-
7.
14.
9.
0.00
590.01
2022.12
FSAE AU
20
5.
4.
9.
1.
2.
-
6.
-
9.
5.
7.
0.00
564.61
2019.12
FSAE AU
16
1.
3.
6.
1.
1.
-
4.
-
1.
1.
2.
0.00
911.60
2018.12
FSAE AU
14
2.
5.
7.
2.
3.
-
2.
-
2.
1.
3.
0.00
794.60
2018.08
FS DE
39
6.
1.
23.
11.
18.
-
18.
-
14.
5.
9.
-55.00
633.66
2018.08
FS AT
19
4.
2.
8.
9.
12.
-
14.
-
10.
4.
8.
-5.00
741.50
2018.07
FS UK
70
3.
7.
28.
8.
7.
-
10.
-
3.
2.
3.
-4.00
767.00
