Team Details
Monash Motorsport
| University | Monash University
AU Melbourne Monash short 51 |
![]() |
|---|---|---|
| Location | Melbourne, Australia | |
| Homepage | https://www.monashmotorsport.com/ | |
| Social Media |
|
|
| DV Team | Monash Motorsport | |
| EV Team | Monash Motorsport | |
| Short Link | tid.fsg.one/54 | |
Event Profile
Past Events

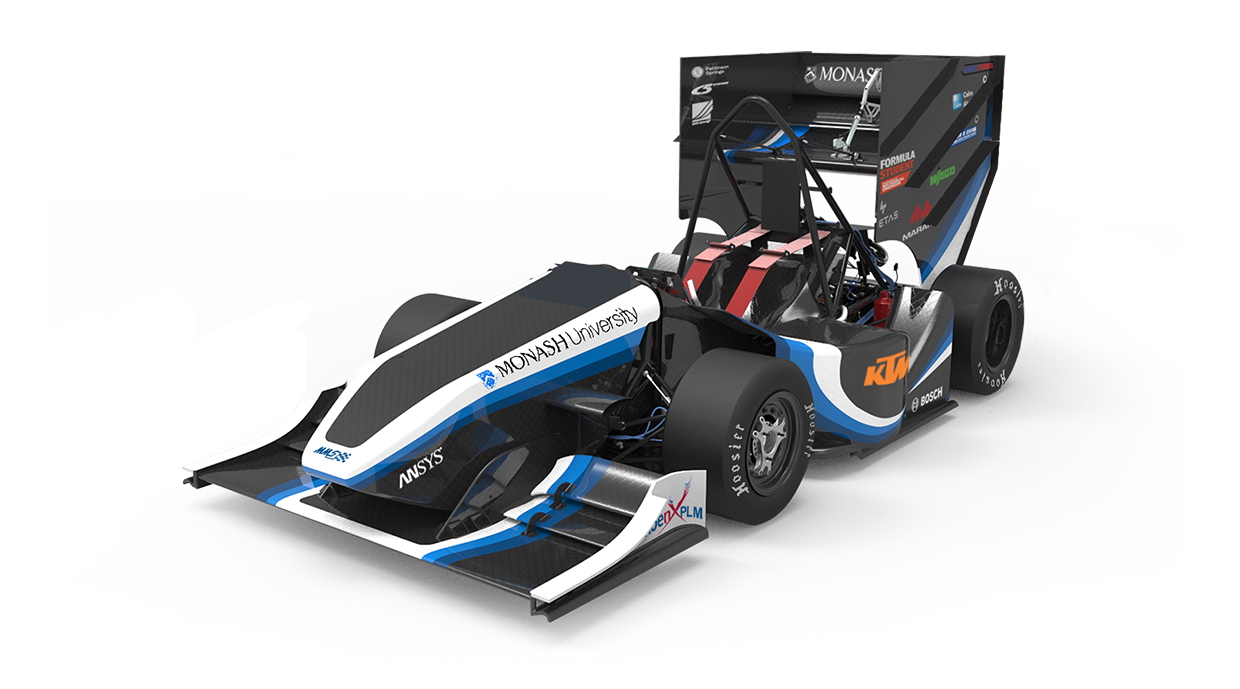

2018
Info
Based in Melbourne, Australia, Monash Motorsport consists of 100+ undergraduate students operating as one team responsible for both an IC and EV car. 2018 will mark the first time Monash competes overseas in both classes, with the goal to maximise the sum of points across the two vehicles. M17-C features a KTM 690 Duke-R and new aerodynamics developed in the Monash Wind Tunnel. With 2000+ km of testing and driver training under its belt, M17-C is ready to take on the competition at FSG.
Car Specifications
General
| Frame Construction | Steel tube spaceframe, CF panel floors, Al rear bulkhead plate |
|---|---|
| Material | 1020 and 4130 steel tubing, composite panels, 7075-T651, Al rear bulkhead |
| Overall Length (mm) | 2985 |
| Overall Width (mm) | 1391 |
| Overall Height (mm) | 1185 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1150 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 134 |
| Weight Rear (kg) | 145 |
| Suspension | Double unequal length A-Arm. Direct acting spring and damper. Rear anti-roll bar. |
| Tyres | 190x53 R10, Hoosier R25B / 190x53 R10, Hoosier R25B |
| Wheels | 8x10, +3 inch offset, 3 pc CF rim, Al centre / 8x10, 0 inch offset, 3 pc CF rim, Al centre |
| Drive Type | Single reduction 428 pitch chain drive |
| Differential | Spool drive |
| Cooling | 2x side mounted 26mm core, single pass radiators. Twin 400cfm thermatic fans |
| Brake System | Outboard 4 disc system, high tensile steel rotors, adjustable brake balance |
| Electronics | MoTeC ADL, ECU and PDM15, electropneumatic shifting, multi-mode launch control |
Powertrain
| Engine | 2017 KTM 690 Duke-R |
|---|---|
| Bore (mm) | 105 |
| Stroke (mm) | 80 |
| Cylinders | 1 |
| Displacement (ccm) | 693 |
| Compression Ratio | 12.7:1 |
| Fuel System | xSpurt 725 single injector, controlled by MoTeC M400 ECU |
| Fuel | 98 octane unleaded gasoline |
| Max Power (kW) | 8000 |
| Max Torque (Nm) | 5500 |

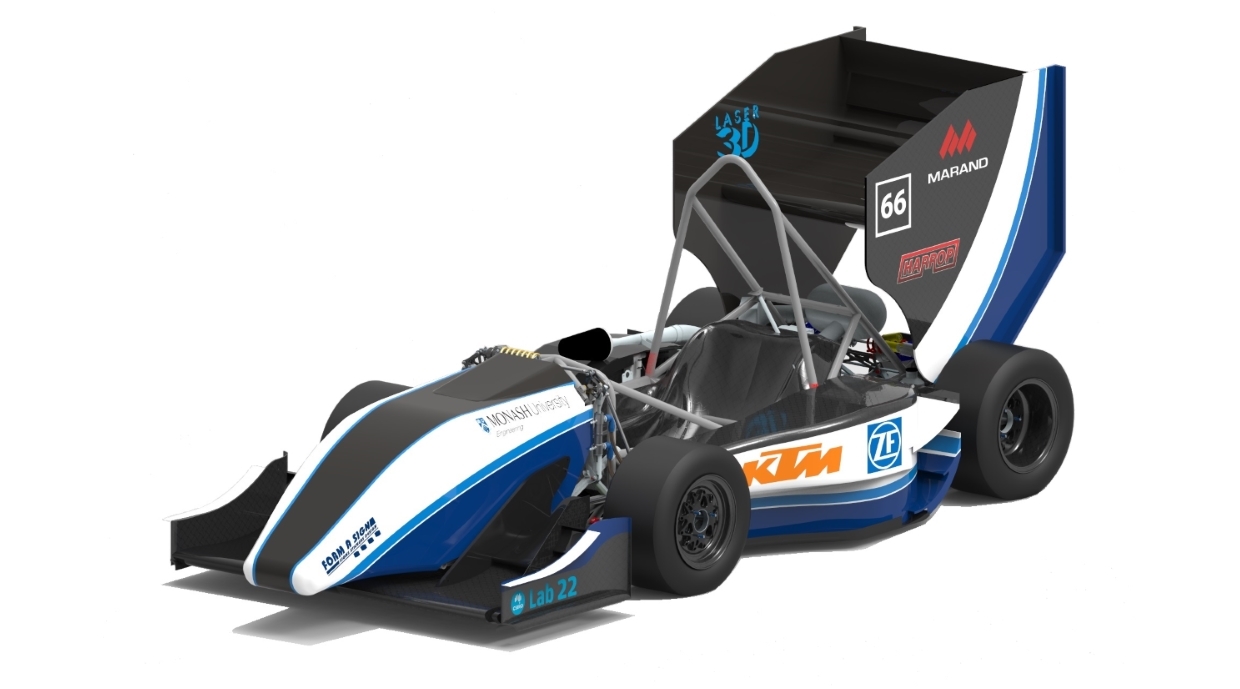

2016
Info
Monash Motorsport is based at Monash University in Melbourne, Australia. The team has competed in FSAE since 2000 with a strong belief in the importance of points simulation, early testing and vehicle tuning. Our latest concept, the M15, showcases a new turbocharged KTM 500, a unique suspension layout and our most highly integrated aerodynamics package yet. Newly developed carbon fibre wheels alongside CSIRO's titanium printed outboard help make this Monash's lightest entry to date.
Car Specifications
General
| Frame Construction | Steel tube spaceframe with bonded composite sandwich panels, aluminium rear bulkhead |
|---|---|
| Material | 1020 mild steel, 4130 chromoly (roll hoops), carbon fibre and nomex honeycomb core |
| Overall Length (mm) | 3220 |
| Overall Width (mm) | 1340 |
| Overall Height (mm) | 1200 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1110 |
| Track Rear (mm) | 1050 |
| Weight Front (kg) | 135 |
| Weight Rear (kg) | 135 |
| Suspension | Double Unequal length A-Arm, push rod actuation, monoshock and hydraulic anti roll system |
| Tyres | 18x7.5-10 R25B Hoosier |
| Wheels | 8 |
| Drive Type | Single reduction 428 chain |
| Differential | Drexler clutch pack limited slip, 25Nm preload, 30deg ramp angle on power side |
| Cooling | dual side mounted 26mm core single pass radiator , 620 cfm fan mounted to radiator shroud |
| Brake System | Wilwood GP320, 4 pot opposing pistons (1.25'')/Wilwood PS1, twin pot opposing pistons (1.0'') |
| Electronics | Wiring harness, Launch control, One way telemetry, |
Powertrain
| Engine | 2015 KTM 500EXC |
|---|---|
| Bore (mm) | 95mm |
| Stroke (mm) | 72mm |
| Cylinders | 1 |
| Displacement (ccm) | 510 |
| Compression Ratio | 11.8:1 |
| Fuel System | MoTec M400 ECU, single injection |
| Fuel | E85 |
| Max Power (kW) | 7500 |
| Max Torque (Nm) | 5500 |

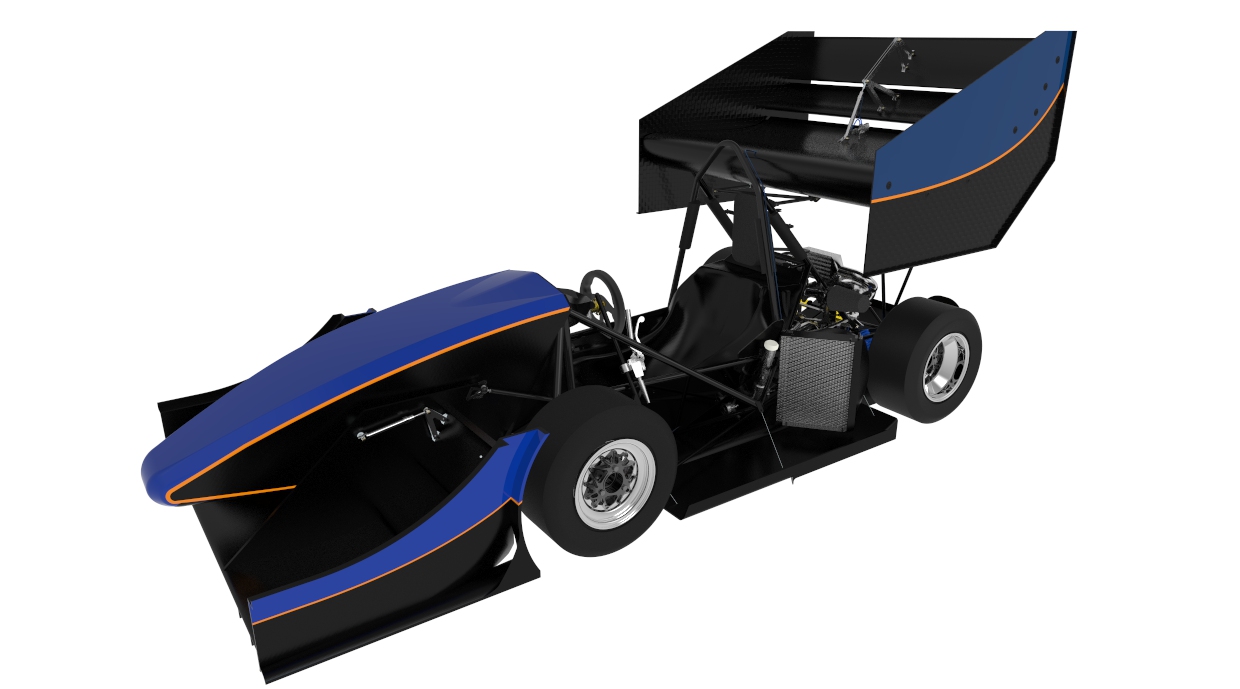

2014
Info
Monash Motorsport is based at Monash University in Melbourne, Australia. The team has competed in FSAE since 2000 with a strong belief in the importance of points simulation, early testing and a heavy focus on aerodynamics. Their latest concept, the M13, is a competition proven clean sheet redesign. It features a turbocharged KTM 450 SX-F, 10" wheels with direct acting suspension and an aggressive aerodynamic package, which was designed around a drag reduction system.
Car Specifications
General
| Frame Construction | Steel tube spaceframe with bonded composite sandwich panels, aluminium rear bulkhead |
|---|---|
| Material | 1020 mild steel, 4130 chromoly (roll hoops), carbon fibre and nomex honeycomb core |
| Overall Length (mm) | 3160 |
| Overall Width (mm) | 1309 |
| Overall Height (mm) | 1424 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1100 |
| Track Rear (mm) | 1050 |
| Weight Front (kg) | 136 |
| Weight Rear (kg) | 136 |
| Suspension | Double Unequal length A-Arm, direct acting, adjustable roll bars |
| Tyres | 18.0x7.5-10 R25B Hoosier |
| Wheels | 8'' wide, 3 piece Al wheels, 3'' positive offset / 8'' wide, 3 piece Al wheels, 0'' offset |
| Drive Type | Single reduction 428 chain |
| Differential | Drexler clutch pack limited slip, 25Nm preload, 30deg ramp angle on power side |
| Cooling | Side mounted, 28mm core dual pass radiator, 360 cfm fan mounted to radiator shroud |
| Brake System | Floating bisalloy rotors, 190mm/175mm. Wilwood calipers, Tilton master cylinders, adj. bias bar. |
| Electronics | Motec M400 ECU, PDM15, ADL. Launch control, gear change ignition cut. Denso 50A alternator. |
Powertrain
| Engine | Turbocharged KTM 450SXF |
|---|---|
| Bore (mm) | 97 |
| Stroke (mm) | 60.8 |
| Cylinders | 1 |
| Displacement (ccm) | 449 |
| Compression Ratio | 12.5:1 |
| Fuel System | Motec M400 ECU, sequential injection and fuel pressure regulator |
| Fuel | E85 |
| Max Power (kW) | 10000 |
| Max Torque (Nm) | 7000 |

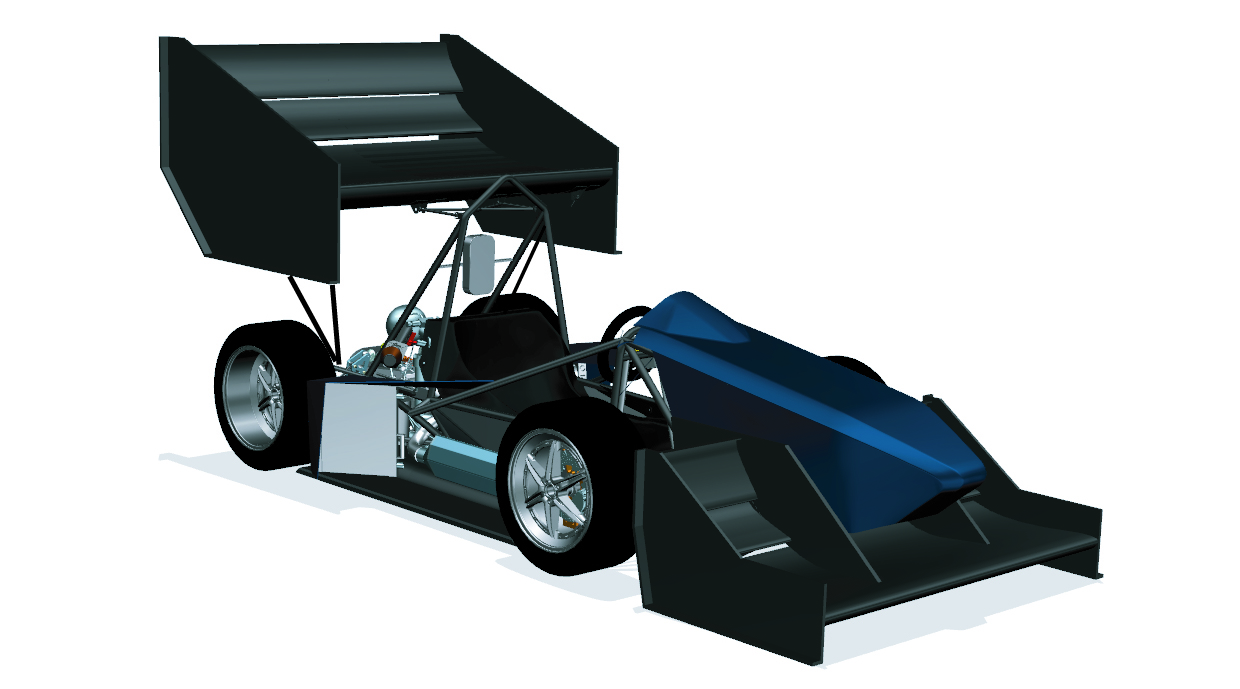

2012
Info
The Monash Motorsport M11 has been the team's first clean sheet redesign since 2006. Thanks to KTM, the team has recently switched to the 450SX-F single cylinder engine, which has helped us to dramatically reduce overall vehicle weight and fuel consumption. Taking advantage of the 2011 aerodynamics rule changes, the M11 runs one of the largest wings and diffuser packages ever seen in Formula Student to generate 90 kg of downforce at 60 km/h, and the car’s and driver's weight in downforce at 105 km/h. Thanks to new Goodyear D2704 tyres the M11 can make the most of this additional download, and regularly sustains +2g cornering in competition. The M11 was completed four months prior to its first competition (FSAE-A 2011), and has completed 1200 km (equivalent to 54 Endurance lengths) before arriving at Formula Student Germany. We would like to thank RWTH Aachen for hosting us and we look forward to seeing all the teams in Hockenheim!
Car Specifications
General
| Frame Construction | Frt and rear tubular space frame/Monocoque mid section, aluminium rear bulkhead |
|---|---|
| Material | 1020 mild steel, 4130 chrome moly (roll hoops), carbon fibre and nomex honeycomb core panels |
| Overall Length (mm) | 3085 |
| Overall Width (mm) | 1300 |
| Overall Height (mm) | 1470 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1100 |
| Track Rear (mm) | 1050 |
| Weight Front (kg) | 133 |
| Weight Rear (kg) | 135 |
| Suspension | Double unequal length A-Arm. Pull/Push rod actuated spring / damper. Adjustable Roll bars |
| Tyres | 20x7-13 D2704 Goodyear / 20x7-13 D2704 Goodyear |
| Wheels | 7x13, 63.5mm offset, 3 pc Al Rim / 7x13, -47.2mm offset, 3 pc Al Rim |
| Drive Type | Single Reduction 428 Chain |
| Differential | Drexler clutch pack limited slip, 25Nm preload, 30deg ramp angle on power side |
| Cooling | Single side radiator, thermostatic controlled electric fan. Swirl pot water |
| Brake System | 4-Disk system, self developed rotors with 207mm/172.5mm diameter, adjustable brake balance |
| Electronics | Motec M400, PDM15, EDL, Traction control, Launch control, Gear change ignition cut. Denso Alternator |
Powertrain
| Engine | 2011 KTM 450SX-F |
|---|---|
| Bore (mm) | 97.0 |
| Stroke (mm) | 60.8 |
| Cylinders | 1 |
| Displacement (ccm) | 449 |
| Compression Ratio | 12.5:1 |
| Fuel System | MoTeC M400 ECU, sequential injection and fuel pressure regulator |
| Fuel | 98 Octane Unleaded Gasoline |
| Max Power (kW) | 9000 |
| Max Torque (Nm) | 7500 |
2006
No media information available for this year.
Car Specifications
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2019.12 | 13 |
1. |
2. |
7. |
1. |
1. |
- |
3. |
- |
1. |
1. |
3. |
0.00 |
938.80 |
|
| 2018.12 | 18 |
1. |
2. |
6. |
1. |
2. |
- |
1. |
- |
1. |
4. |
1. |
0.00 |
931.70 |
|
| 2018.08 | 57 |
6. |
7. |
16. |
2. |
21. |
- |
14. |
- |
14. |
9. |
12. |
-20.00 |
750.33 |
|
| 2018.08 | 30 |
2. |
1. |
12. |
1. |
8. |
- |
8. |
- |
8. |
3. |
2. |
0.00 |
789.90 |
|
| 2018.07 | 70 |
1. |
10. |
9. |
3. |
4. |
- |
7. |
- |
2. |
1. |
9. |
-4.00 |
863.60 |
|
| 2017.12 | 16 |
1. |
1. |
3. |
1. |
1. |
- |
1. |
- |
1. |
1. |
5. |
0.00 |
959.30 |
|
| 2016.12 | 32 |
3. |
1. |
3. |
2. |
2. |
- |
12. |
- |
6. |
8. |
7. |
0.00 |
827.80 |
|
| 2016.08 | 73 |
21. |
9. |
28. |
20. |
15. |
- |
33. |
- |
33. |
17. |
31. |
-30.00 |
506.44 |
|
| 2016.08 | 21 |
14. |
1. |
4. |
6. |
18. |
- |
15. |
- |
10. |
17. |
15. |
0.00 |
474.50 |
|
| 2016.07 | 106 |
27. |
10. |
2. |
6. |
9. |
- |
44. |
- |
21. |
60. |
- |
0.00 |
441.70 |
|
| 2015.12 | 29 |
1. |
4. |
9. |
1. |
3. |
- |
10. |
- |
1. |
2. |
3. |
0.00 |
894.60 |
|
| 2014.12 | 22 |
1. |
1. |
3. |
1. |
1. |
- |
9. |
- |
1. |
1. |
6. |
0.00 |
916.00 |
|
| 2014.08 | 74 |
19. |
5. |
2. |
4. |
2. |
- |
42. |
- |
6. |
- |
20. |
0.00 |
522.38 |
|
| 2014.07 | 90 |
5. |
3. |
7. |
7. |
1. |
- |
26. |
- |
3. |
2. |
10. |
0.00 |
821.10 |
|
| 2013.12 | 23 |
1. |
1. |
3. |
1. |
1. |
- |
6. |
- |
1. |
1. |
- |
0.00 |
937.50 |
|
| 2012.12 | 21 |
1. |
2. |
3. |
1. |
1. |
- |
14. |
- |
1. |
1. |
- |
0.00 |
899.40 |
|
| 2012.08 | 76 |
4. |
10. |
22. |
3. |
6. |
- |
52. |
- |
4. |
6. |
14. |
0.00 |
841.24 |
|
| 2012.07 | 97 |
3. |
10. |
4. |
3. |
1. |
- |
24. |
- |
6. |
2. |
11. |
0.00 |
840.70 |
|
| 2011.12 | 23 |
1. |
12. |
2. |
4. |
1. |
- |
17. |
- |
2. |
1. |
8. |
0.00 |
863.87 |
|
| 2010.12 | 27 |
1. |
7. |
8. |
3. |
1. |
- |
1. |
- |
1. |
1. |
- |
0.00 |
871.10 |
|
| 2010.07 | 72 |
3. |
13. |
13. |
19. |
1. |
- |
8. |
- |
3. |
2. |
22. |
-10.00 |
784.00 |
|
| 2009.12 | 21 |
1. |
5. |
1. |
1. |
1. |
- |
2. |
- |
1. |
2. |
- |
0.00 |
888.80 |
|
| 2008.11 | 24 |
4. |
5. |
2. |
4. |
2. |
- |
5. |
- |
7. |
5. |
- |
0.00 |
676.70 |
|
| 2007.12 | 22 |
3. |
11. |
8. |
19. |
4. |
- |
14. |
- |
5. |
3. |
- |
0.00 |
690.20 |
|
| 2006.12 | 27 |
12. |
5. |
4. |
10. |
9. |
- |
16. |
- |
9. |
12. |
- |
0.00 |
549.30 |
|
| 2006.08 | 38 |
8. |
26. |
20. |
11. |
17. |
- |
24. |
- |
8. |
8. |
11. |
0.00 |
711.53 |
|
| 2005.12 | 24 |
6. |
6. |
7. |
10. |
10. |
- |
10. |
- |
7. |
7. |
- |
0.00 |
575.90 |
|
| 2004.12 | 22 |
20. |
20. |
19. |
16. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
138.00 |
|
| 2004.07 | 53 |
20. |
1. |
8. |
7. |
27. |
- |
37. |
- |
17. |
- |
- |
0.00 |
397.46 |
|
| 2003.12 | 21 |
11. |
2. |
9. |
11. |
8. |
- |
11. |
- |
1. |
- |
- |
0.00 |
483.91 |
|
| 2002.12 | 18 |
11. |
2. |
13. |
5. |
10. |
- |
5. |
- |
2. |
- |
- |
0.00 |
500.09 |
|
| 2001.12 | 18 |
13. |
3. |
10. |
4. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
260.40 |
|
| x 32 | |||||||||||||||
