Team Details
Thomas More Innovation
| University | Thomas More Mechelen - De Nayer
BE Sint-Katelijne-Waver TMM short 596 |
|---|---|
| Location | Sint-Katelijne-Waver, Belgium |
| Social Media |

|
| CV Team | Lessius Racing Team |
| Short Link | tid.fsg.one/440 |
Event Profile
Past Events
2012
Info
The Lessius Racing Team is the first Belgian Formula student team founded in 2009. The team is connected to UAS Lessius Mechelen - Campus de Nayer, situated in Sint-Katelijne-Waver, Belgium. For our second fully-built car we've decided to go electric. This choice was made because we believe electric drivetrains are the future and we want to make the students accustomed with this green technology. The team also managed to spread the bio-story over other components of the car. Full bio-composite bodypanels and floor-elements are used. The manufacturing process of the uprights is also more eco-friendly. The car is put together by about 20 students from the engineering department and about the same number of students from the technology department. They’ve worked hard since the ending of last school year to finish the design and fabrication on time to compete in Formula Student UK and Formula Student Germany. We'd like to thank all our sponsors for their financial and material support.

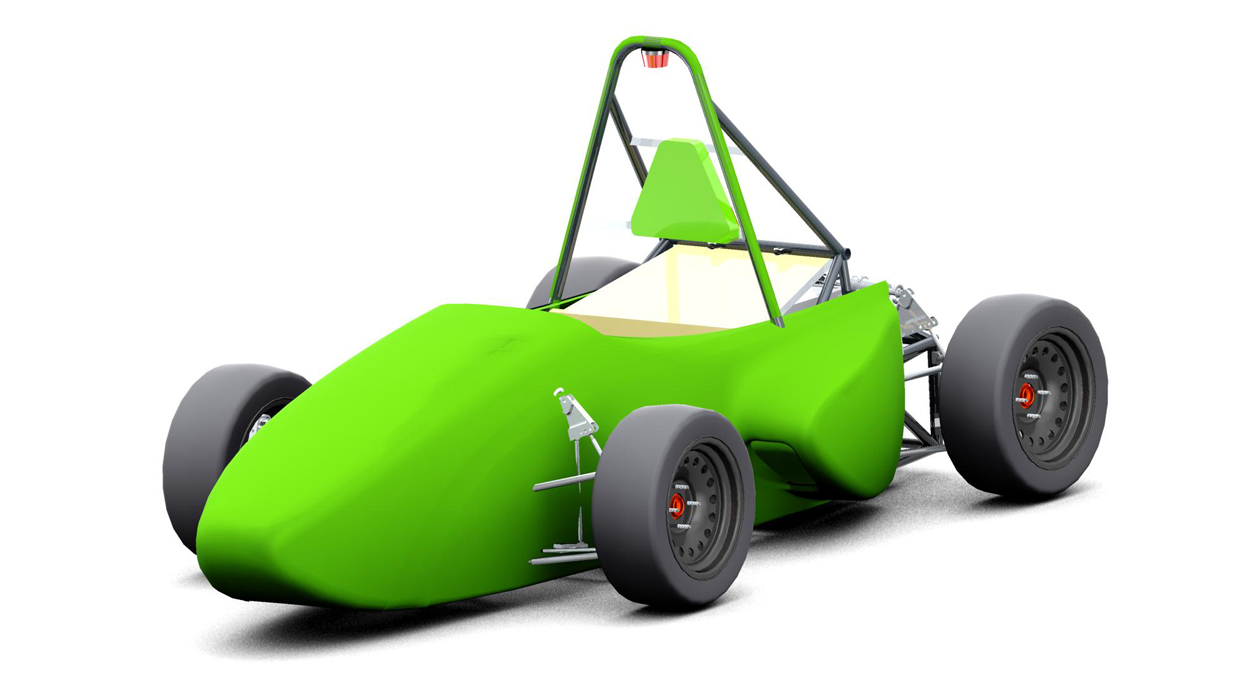

Car Specifications
General
| Frame Construction | One piece tubular spaceframe |
|---|---|
| Material | cold formed metal tubing |
| Overall Length (mm) | 2860 |
| Overall Width (mm) | 1486 |
| Overall Height (mm) | 1282 |
| Wheelbase (mm) | 1543 |
| Track Front (mm) | 1297 |
| Track Rear (mm) | 1297 |
| Weight Front (kg) | 105 |
| Weight Rear (kg) | 195 |
| Suspension | Double unequal length A-Arm. Pushrod actuated horizontally oriented spring and damper |
| Tyres | 205/510 R13 34M Continental |
| Wheels | 13 |
| Drive Type | Single 520 chain/motor |
| Differential | Electronic |
| Cooling | Dual mini-radiator with 120mm fan, sidepod mounted |
| Brake System | Cast iron, drilled, hub mounted, 228.6mm diameter. Adjustable brake balance. |
| Electronics | Self designed data-acquisition, integrated Torque Encoder, IP67 sealed wiring harness, IP67 sealed |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Left & Rear Right |
| Max Motor Power | 60kW, 60kW |
| Motor Type | RL,RR: Enstroj Emrax LC Perm. Magnet AC |
| Max Motor RPM | RL,RR: 3.000 |
| Motor Controller | Unitek Bamocar D3 |
| Max System Voltage (V) | 403V |
| Electrode Materials | LiFePO4 |
| Accumulator Capacity | 8kWh |
| Transmission Ratio Primary | 1:2.5 |
| Transmission Ratio Secondary | 1:2.5 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2014.08 | 23 |
20. |
22. |
17. |
19. |
15. |
- |
17. |
- |
14. |
- |
- |
0.00 |
185.13 |
|
| 2014.07 | 90 |
69. |
68. |
68. |
59. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
139.40 |
|
| 2013.07 | 83 |
78. |
20. |
75. |
69. |
- |
- |
- |
- |
- |
- |
- |
-60.00 |
64.50 |
|
| 2012.08 | 32 |
29. |
30. |
30. |
29. |
18. |
- |
20. |
- |
18. |
- |
- |
-5.00 |
153.76 |
|
| 2012.07 | 97 |
90. |
91. |
80. |
- |
- |
- |
- |
- |
29. |
- |
- |
-6.00 |
54.40 |
|
| x 5 | |||||||||||||||
