Team Details
Dynamics e.V.
| University | Ostbayerische Technische Hochschule Regensburg
DE Regensburg OTH short 95 |
![]() |
|---|---|---|
| Location | Regensburg, Germany | |
| Homepage | https://dynamics-regensburg.de/ | |
| Social Media |
|
|
| CV Team | Dynamics e.V. Combustion | |
| DV Team | Dynamics e.V. Driverless | |
| Short Link | tid.fsg.one/324 | |
| Car Weight | 241.50 kg | |
| Event Details | car 62 - active | |
Team Description
In the years 2011, 2012 and 2013.the Formulastudent Electric team in Regensburg was listed under the name Regenics e.V.
In season 2019 Dynamics e.V. started to build electric cars in Regensburg in addition to their combustion car.
Since 2020, Dynamics e.V. only builds electric cars.
Event Profile

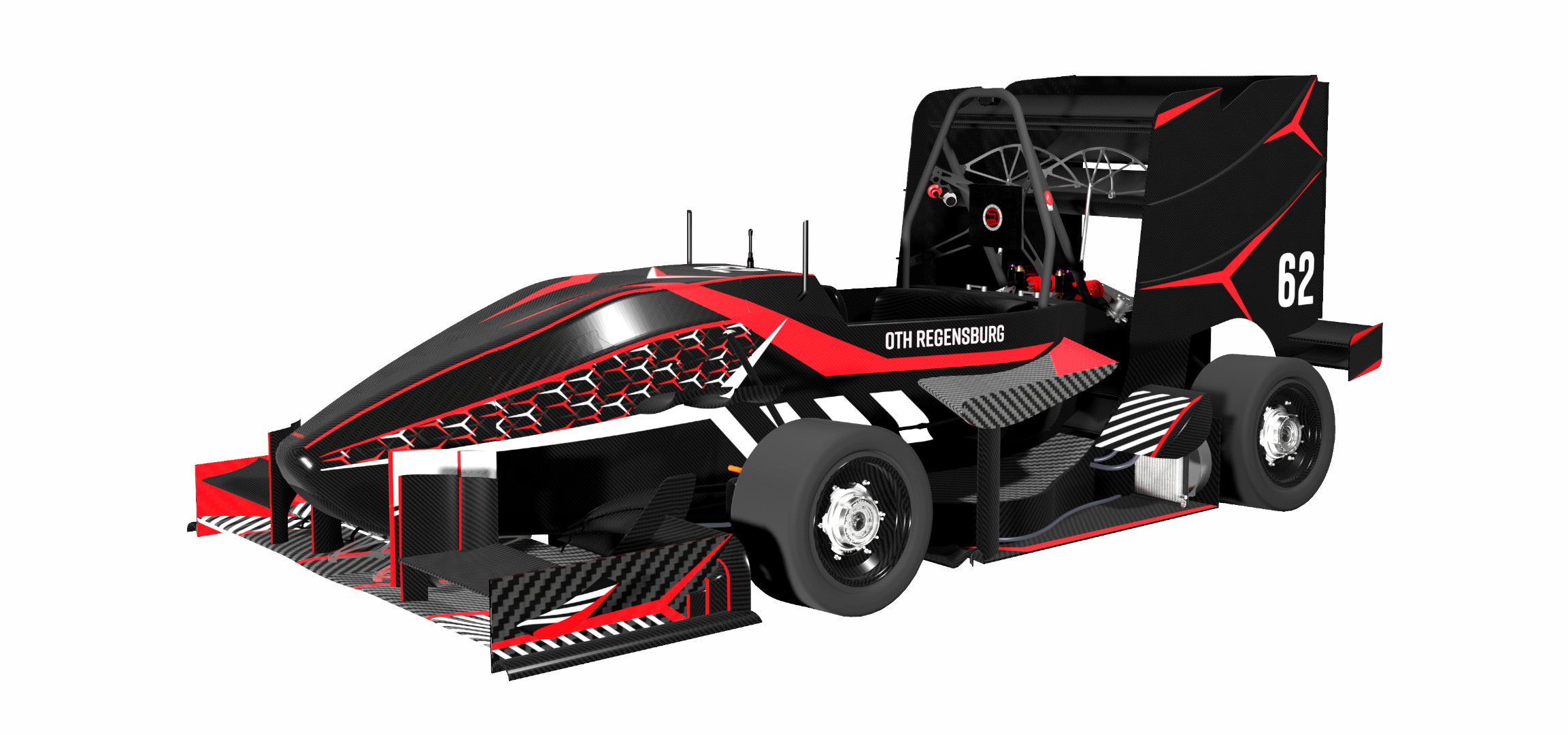

2025
Info
Established in 2007, Dynamics e.V. shifted to electric race cars in 2019. The RP25e, our sixth electric model and fourth autonomous vehicle, embodies our evolution. This season, saw the introduction of a new wheel package, leading to a new parametric model and a redesigned chassis. The RP25e boasts improved aerodynamics, battery tech, and control systems. With regenerative braking and user-friendly telemetry, it sets new standards, delivering top performance.
Engineering Design Priorities:
WheelPackageDesign
ChassisRedesign
TorqueVectoring
RegenerativeBraking
FrontwingRedesign
EBSInnovation
Car Specifications
General
| Frame Construction | CFRP Monocoque |
|---|---|
| Material | CFRP, Kevlar, Honeycomb, Rohacell |
| Overall Length (mm) | 2953 |
| Overall Width (mm) | 1410 |
| Overall Height (mm) | 1141 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1213 |
| Track Rear (mm) | 1174 |
| Weight Front (kg) | 139 |
| Weight Rear (kg) | 149 |
| Suspension | Double unequal Wishbone Push Rod actuated horizontally oriented springs and dampers system |
| Tyres | 16x7.5-10, 1pc CFK rim |
| Wheels | 16x7.5-10, 1pc CFK rim |
| Drive Type | Planetary Gear drive |
| Differential | n/a |
| Cooling | Two radiators at the side of the vehicle, two cooling circuits, two 190mm electric fans |
| Brake System | 4-Disk system, self developed rotors with 211,5mm diameter, adjustable brake balance |
| Electronics | Remote Flashing System, High- Resolution Dashpanel, Power Distribution Unit |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | FR, FL, RR, RL |
| Max Motor Power | 35kW, 35kW, 35kW, 35kW |
| Motor Type | Fischer Torque Motors |
| Max Motor RPM | 18.000 |
| Motor Controller | Unitek |
| Max System Voltage (V) | 600V |
| Electrode Materials | LiIoPo |
| Accumulator Capacity | 8,47kWh |
| Transmission Ratio Primary | -10,8:1 |
| Transmission Ratio Secondary | n/a |
Driverless System
| Processing Units | NXP S32k uC; Intel Core i5 1240p |
|---|---|
| Processing Units FLOPS | 2226 |
| Processing Units Power (W) | 35 |
| Cameras | n/a |
| Radar Sensors | n/a |
| LiDAR Sensors | 1, Robosense M1, 200m, 120°, hybrid-solid-state LiDAR |
| Other Sensors | 1, VectorNav VN-300 Rugged |
| DV System Highlights | LiDAR only perception, with color independent path planning and a high performance EKF-SLAM. Low power x86 based processing unit. |
Past Events
2026
No media information available for this year.
Car Specifications

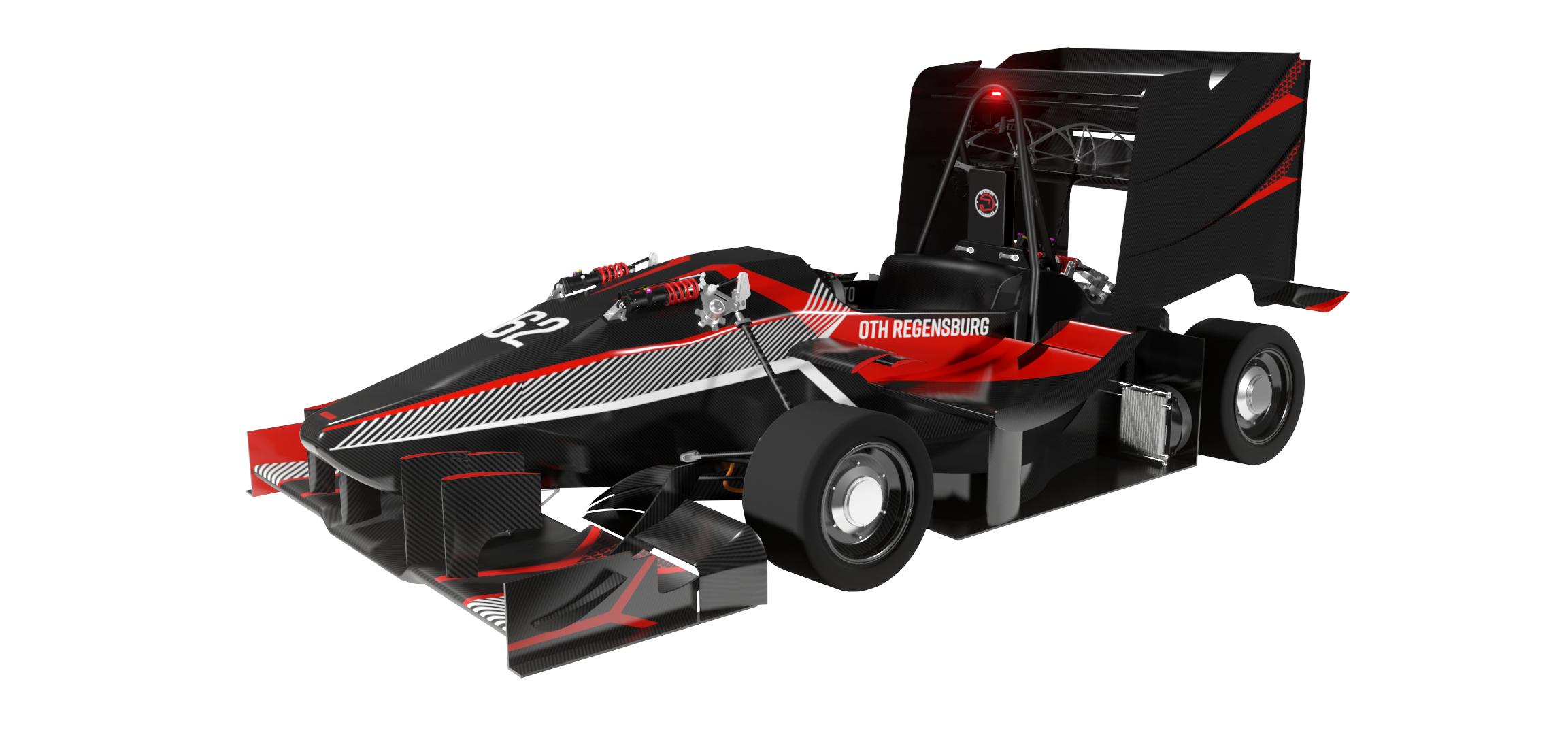

2024
Info
Established in 2007, Dynamics e.V. shifted to electric race cars in 2019. The RP24e, our fifth electric model, embodies our evolution. This season, we prioritize reliability, manufacturing excellence, and system enhancements. The RP24e boasts improved aerodynamics, battery tech, and control systems. We've also focused on lightweight materials, safety and optimized suspension. With regenerative braking and user-friendly telemetry, it sets new standards, delivering top performance.
Engineering Design Priorities:
Relieability
Revision
Ground effect
Insight
Performant
Active aerodynamics
Car Specifications
General
| Frame Construction | CFRP Monocoque |
|---|---|
| Material | CFRP, Kevlar, Honeycomb, Rohacell |
| Overall Length (mm) | 2963 |
| Overall Width (mm) | 1480 |
| Overall Height (mm) | 1157 |
| Wheelbase (mm) | 1525 |
| Track Front (mm) | 1202 |
| Track Rear (mm) | 1160 |
| Weight Front (kg) | 127 |
| Weight Rear (kg) | 156 |
| Suspension | Double unequal Wishbone Push Rod actuated horizontally oriented springs and dampers system |
| Tyres | 186x70 D10, Hoosier LC0 |
| Wheels | 16x7.5-10, 1pc CFRP rim |
| Drive Type | Planetary Gear drive |
| Differential | n/a |
| Cooling | two radiators at the side of the vehicle, two cooling circuits, two 190mm electric fans |
| Brake System | 4- Steel-Disk system, self developed rotors with 245mm diameter, adjustable brake balance, |
| Electronics | Remote Flashing System, High- Resolution Dashpanel, Power Distribution Unit |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | wheel hub |
| Max Motor Power | 35kW |
| Motor Type | Fischer Torque Motor |
| Max Motor RPM | 18000 |
| Motor Controller | Unitek |
| Max System Voltage (V) | 600 |
| Electrode Materials | LiIoPo |
| Accumulator Capacity | 7,456kWh |
| Transmission Ratio Primary | 10.96:1 |
| Transmission Ratio Secondary | n/a |
Driverless System
| Processing Units | NXP S32k uC / SKEAZ128 for all custom ECUs, Intel Core i5 1240p |
|---|---|
| Processing Units FLOPS | 2226 |
| Processing Units Power (W) | 35W |
| Cameras | n/a |
| Radar Sensors | n/a |
| LiDAR Sensors | 1, Robosense M1, 200m, 120°, hybrid-solid-state LiDAR |
| Other Sensors | 1, VectorNav VN-300 Rugged |
| DV System Highlights | LiDAR only perception, with color independent path planning and a high performance EKF-SLAM. Low power x86 based processing unit. |

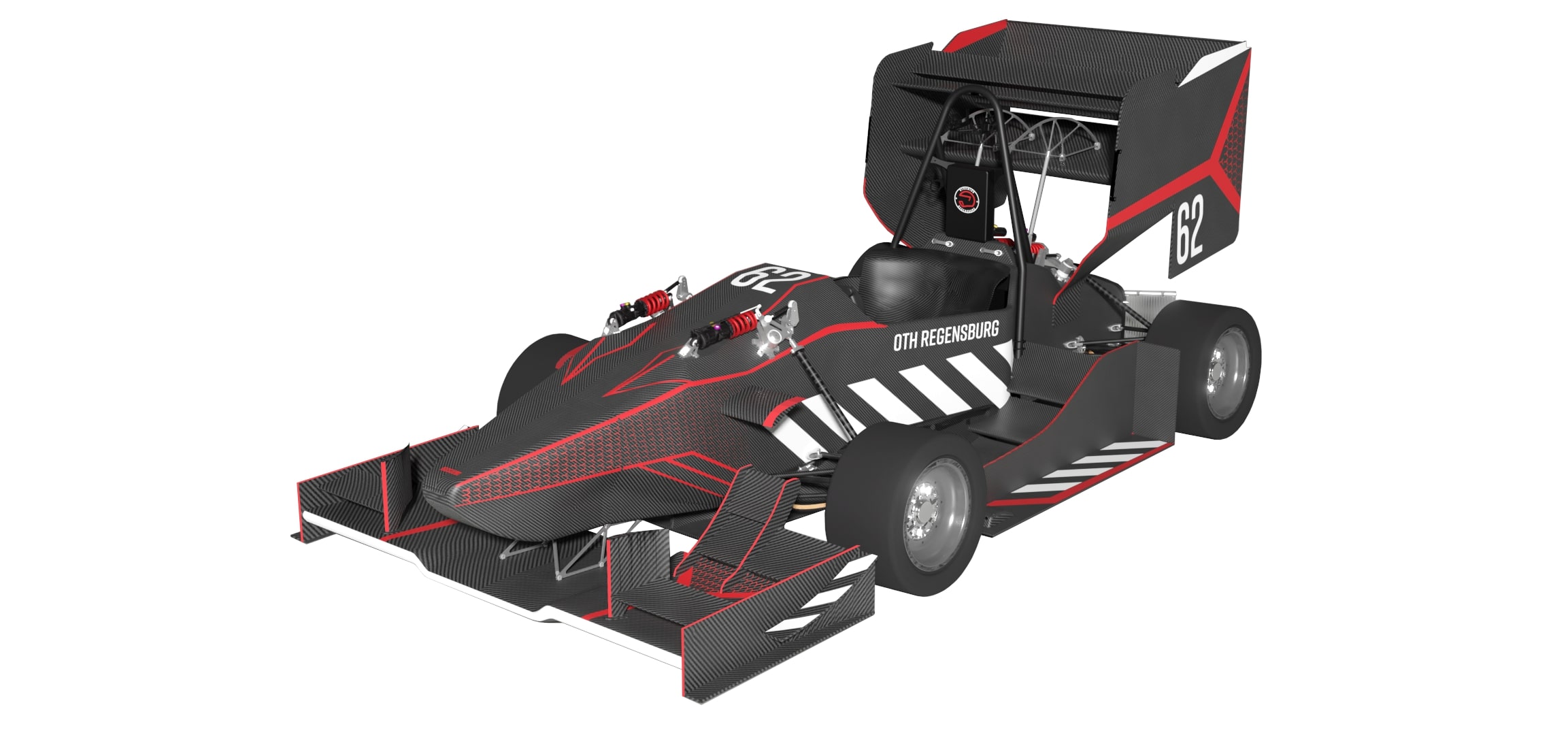

2023
Info
Dynamics e.V. was founded in 2007 to build combustion race cars until 2019. As the fourth electric race car and further development of the overall concept developed in the pre-season, the RP23e is our best and most sophisticated car to date. We compete the season with a focus on the reliability of the concepts, good manufacturing quality, but also the improvement of all systems.
Engineering Design Priorities:
Relieability
DoItRightOrDoItTwice
Four-Wheel Drive
Driverless
Carbon Fibre Rim
Weight Reduction
Car Specifications
General
| Frame Construction | CFRP Monocoque |
|---|---|
| Material | CFRP, Keclar, Honeycomb, Rohacell |
| Overall Length (mm) | 2960 |
| Overall Width (mm) | 1450 |
| Overall Height (mm) | 1160 |
| Wheelbase (mm) | 1525 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1160 |
| Suspension | Double unequal Wishbone Push Rod actuated horizontally oriented springs and dampers system |
| Tyres | 186x70 D10, Hoosier LC0 |
| Wheels | 16x7.5-10, 1pc CFRP rim |
| Drive Type | Planetary Gear drive |
| Differential | n/a |
| Cooling | two akg radiators at the rear of the vehicle, two cooling circuits, four 115mm electric fans |
| Brake System | 4- Steel-Disk system |
| Electronics | self designed Live-Telemetry, multifunctional Steering Wheel and High-Resolution Dashpanel |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | wheel hub |
| Max Motor Power | 35kW |
| Motor Type | Fischer Torque Motor |
| Max Motor RPM | 20.000 |
| Motor Controller | Unitek |
| Max System Voltage (V) | 600V |
| Electrode Materials | LiIoPo |
| Accumulator Capacity | 7.14kWh |
| Transmission Ratio Primary | 10.96:1 |
| Transmission Ratio Secondary | n/a |
Driverless System
| Processing Units | NXP S32k uC / SKEAZ128 for all custom ECUs, Intel Core i5 1240p |
|---|---|
| Processing Units FLOPS | 2226 |
| Processing Units Power (W) | 35W |
| Cameras | n/a |
| Radar Sensors | n/a |
| LiDAR Sensors | 1, Robosense M1, 200m, 120°, hybrid-solid-state LiDAR |
| Other Sensors | 1, VectorNav VN-300 Rugged |
| DV System Highlights | LiDAR only perception, with color independent path planning and a high performance EKF-SLAM. Low power x86 based processing unit. |

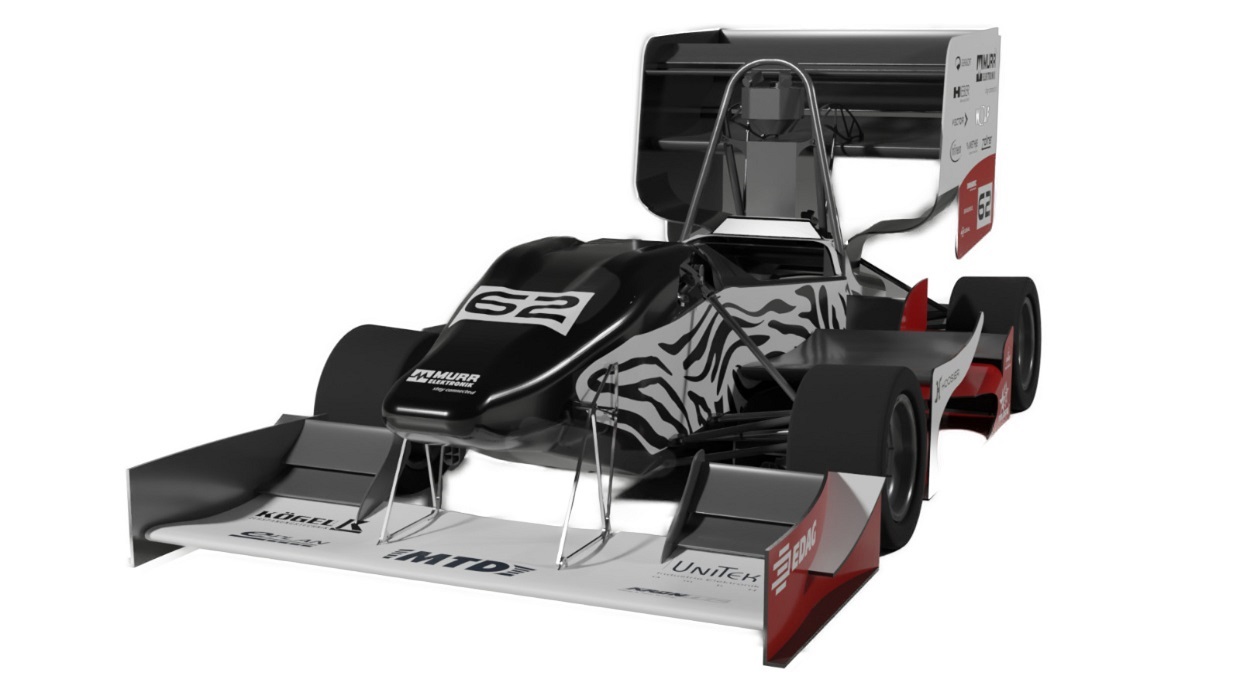

2022
Info
Dynamics e.V. was founded in 2007 building combustion vehicles until 2019. After two predecessors, the RP22e is the third and most sophisticated electric vehicle to leave our facility. This racecar is also the last step toward a completely electric platform that exploits all the advantages of this new driveline.
Engineering Design Priorities:
four-wheel-drive
Driverless
Carbon Fibre Rim
Complete new Car
flax fibre
Car Specifications
General
| Frame Construction | CFRP Monocoque |
|---|---|
| Material | CFRP, Kevlar, Honeycomb, Rohacell |
| Overall Length (mm) | 2863 |
| Overall Width (mm) | 1450 |
| Overall Height (mm) | 1113 |
| Wheelbase (mm) | 1525 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1160 |
| Weight Front (kg) | 48 |
| Weight Rear (kg) | 52 |
| Suspension | Double unequal length A-Arm, push-rod |
| Tyres | 186x70 D10, Hoosier LC0 |
| Wheels | 16x7.5-10, 2pc CFRP rim |
| Drive Type | Planetary Gear drive |
| Differential | n/a |
| Cooling | two akg radiators in the sidepods |
| Brake System | 4-Disk system |
| Electronics | selfdesigned Live-Telemetry System |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | one on eacht wheel |
| Max Motor Power | 35kW each |
| Motor Type | Fischer Elektromotoren Torquemotor |
| Max Motor RPM | 20000 |
| Motor Controller | UniTec |
| Max System Voltage (V) | 599V |
| Electrode Materials | Polymer Li-Ion |
| Accumulator Capacity | 7.14kWh |
| Transmission Ratio Primary | 1:13,14 |
| Transmission Ratio Secondary | n/a |
Driverless System
| Processing Units | NVidia Jetson AGX Xavier IPC/RMLA3K22-D203S |
|---|---|
| Processing Units FLOPS | 1410 |
| Processing Units Power (W) | 35 |
| Cameras | 2, 60°, Sony IMX265 color CMOS sensor |
| Radar Sensors | n/a |
| LiDAR Sensors | 1, MRS6124R-131001, 200m, 120°, infrared Sensor |
| Other Sensors | GPS, VectorNav VN-300 Rugged |
| DV System Highlights | LiDAR focused perception with camera assisted color classification. High performance EKF-SLAM with constant time position estimation. Low power ARM based processing unit. Asynchonous sensor shutters. |

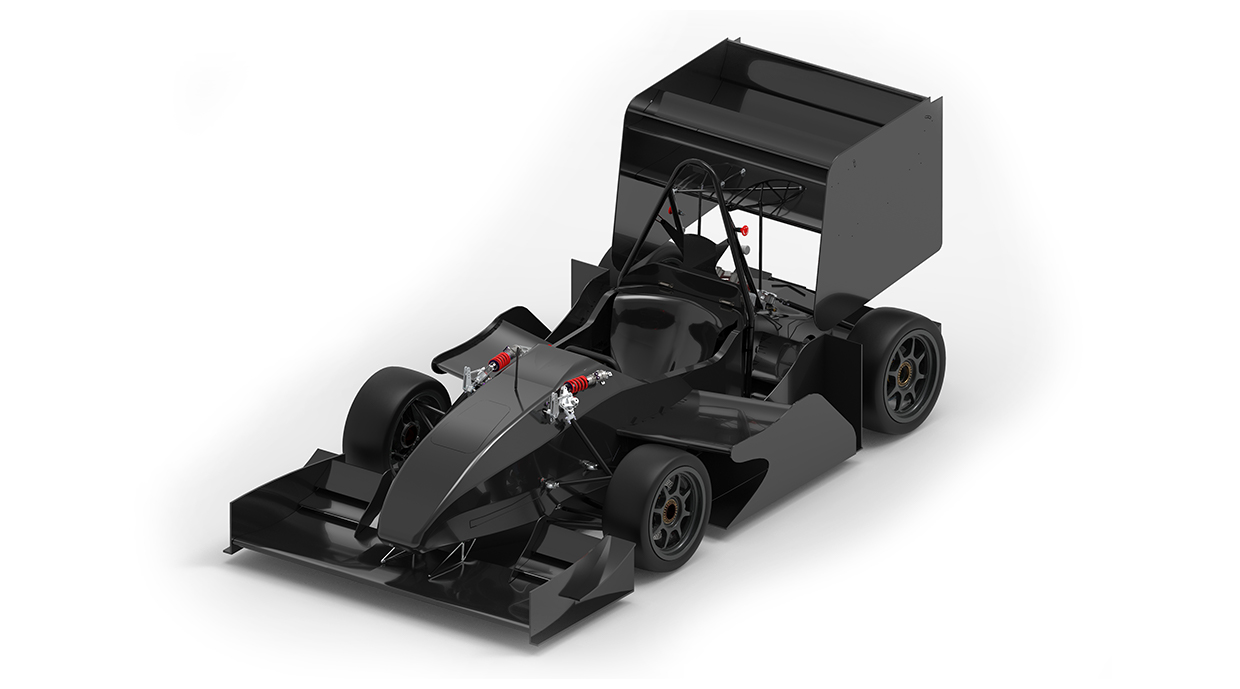

2021
Info
Dynamics e.V. was founded in 2007 and has built combustion vehicles until 2019. In 2019 we started to build electric cars. With our 2nd electric car we aim to be faster than with our combustion cars. Highlights of the RP21e are the further developed aerodynamic package, our new self developed planetary gearbox, the new rear chassis part, new rear axle, new accumulator cell type and better performing inverters.
Engineering Design Priorities:
Aerodynamics
Planetary Gearbox
Car Specifications
General
| Frame Construction | CFRP Monocoque |
|---|---|
| Material | CFRP, Kevlar, Honeycomb, Rohacell |
| Overall Length (mm) | 2947 |
| Overall Width (mm) | 1466 |
| Overall Height (mm) | 1200 |
| Wheelbase (mm) | 1527 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1160 |
| Weight Front (kg) | 126 |
| Weight Rear (kg) | 144 |
| Suspension | double Wishbone, push-rod |
| Tyres | Continental 205x47 R13 |
| Wheels | OZ Cast, 1 pc, 7x13 inch, Mg centerlock wheel |
| Drive Type | Planetary Gear drive |
| Differential | Torque vectoring system |
| Cooling | Rear mountet mini radiator and electric fan |
| Brake System | 4-Disk system |
| Electronics | selfdesigned Multifunctional Steering Wheel, Live-Telemetry System, Control Unit, BMS |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Left, Rear Right |
| Max Motor Power | 52kW |
| Motor Type | RR, RL: Emrax 188 LC |
| Max Motor RPM | RL, RR: 8000 |
| Motor Controller | Unitek Bamocar PG D3 700 160 |
| Max System Voltage (V) | 453V |
| Electrode Materials | Polymer Li-ion |
| Accumulator Capacity | 6,39 kWh |
| Transmission Ratio Primary | 1:5,172 |
| Transmission Ratio Secondary | n/a |

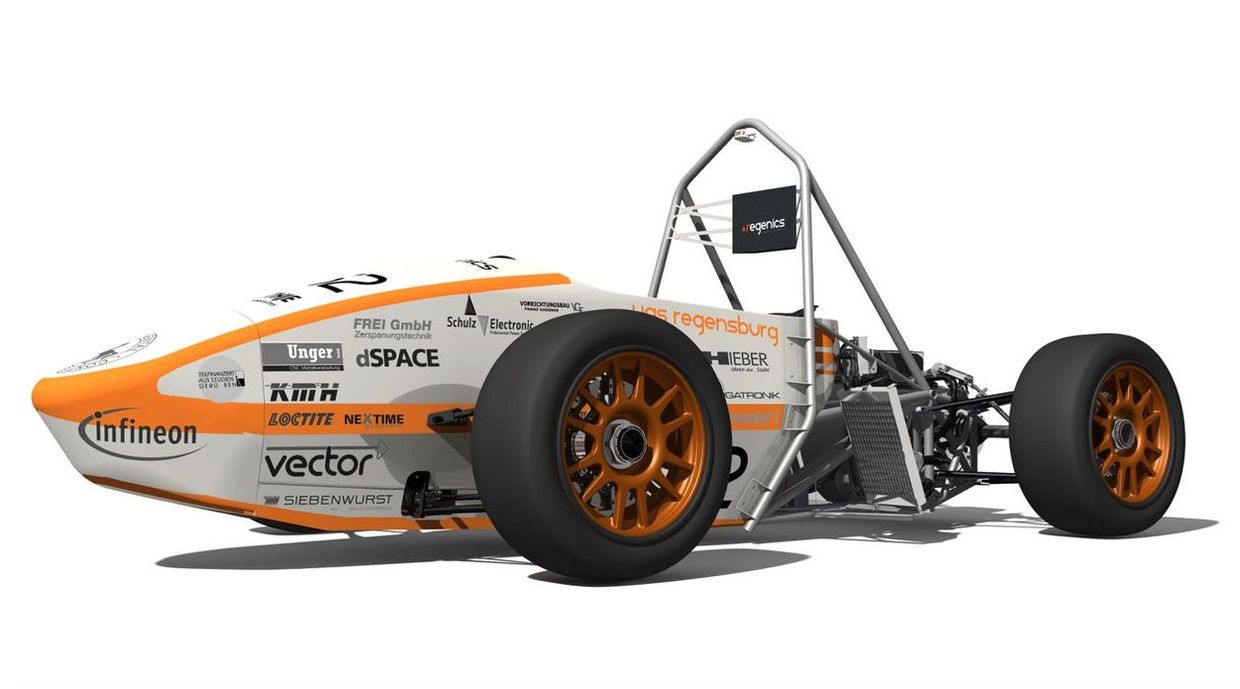

2012
Info
The regenics Formula Student Electric Team of the University of Applied Sciences (UAS) in Regensburg was founded in 2010 by the experienced team members out of the Formula Student Combustion Team at the UAS Regensburg. We are very proud to integrate over 50 members from nearly all faculties of the university in one team. Every team member is part of a subteam and has clearly defined tasks for which he is fully responsible. This season we will participate the second time in the competition and we have learned from the past difficulties. One technical highlight of our 'RP12e' is the monocoque and the lithium polymer batteries which provide the lightness of our car. An additional advantage of the monocoque is an enhanced safety for the driver. Due to the two water-cooled, permanent exited synchronous motors we can gain a peak torque of more than 500 Nm per wheel controlled by a self-build ECU. We are looking forward to meet the other teams and to have a great competition!
Car Specifications
General
| Frame Construction | Hybrid CFRP-Moncoque with tubular steel rear |
|---|---|
| Material | HM UD and twill Prepreg, Aluminium Honeycomb and Rohacell core material |
| Overall Length (mm) | 2695 |
| Overall Width (mm) | 1500 |
| Overall Height (mm) | 1078 |
| Wheelbase (mm) | 1575 |
| Track Front (mm) | 1458 |
| Track Rear (mm) | 1420 |
| Weight Front (kg) | 112 |
| Weight Rear (kg) | 135 |
| Suspension | Double unequal length A-Arms in front and rear; pullrod in front; pushrod in rear |
| Tyres | Continental C12 |
| Wheels | 7.0x13'' O.Z. Racing wheels with self developped centerlock system |
| Drive Type | Double belt drive |
| Differential | Electronic active differential (with torque vectoring) |
| Cooling | Single side mounted radiator with temperature controlled waterpump |
| Brake System | 4-Disk System, self developed rotors, radial mounted rake calipers |
| Electronics | Self-developed main ECU, telemetry via WLAN and radio frequency |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right and Left |
| Max Motor Power | 63 kW, 63 kW |
| Motor Type | Enstroj Emrax |
| Max Motor RPM | 3500 |
| Motor Controller | Infineon Hybrid Kit 1 Pin-Fin |
| Max System Voltage (V) | 404V |
| Electrode Materials | LiNiCoMnO2 |
| Accumulator Capacity | 7.1 |
| Transmission Ratio Primary | 1:2,65 |
| Transmission Ratio Secondary | - |

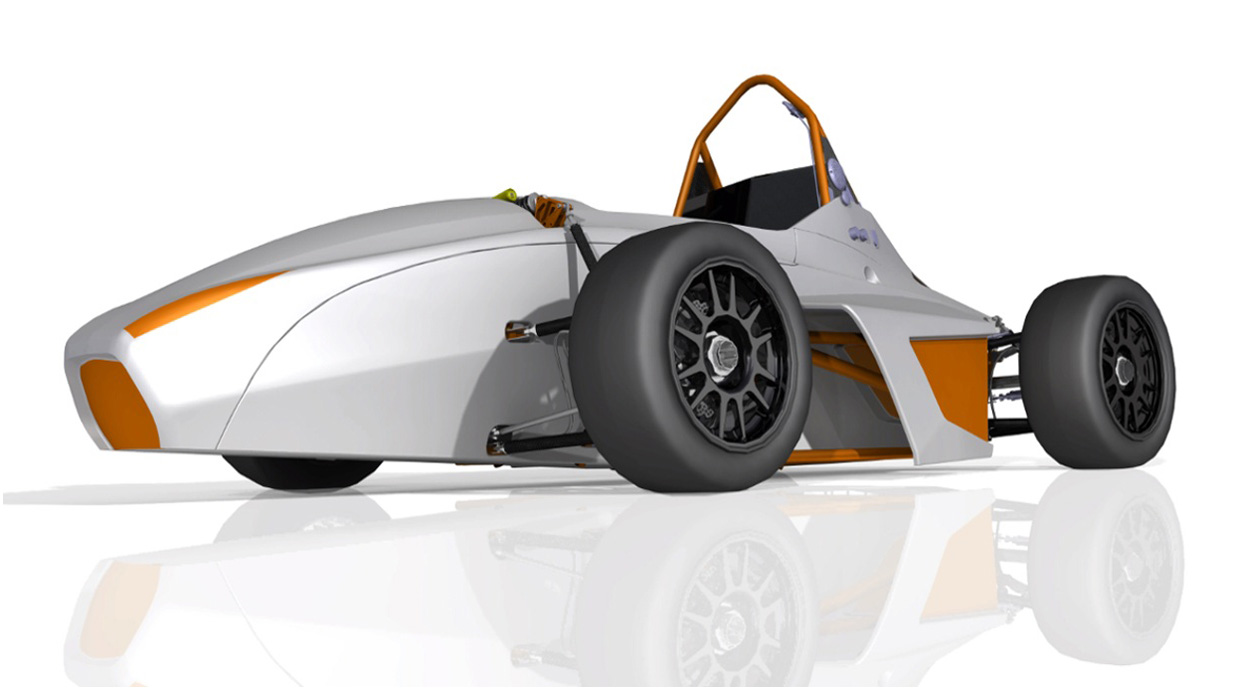

2011
Info
The regenics Formula Student Electric Team of the University of Applied Sciences (UAS) in Regensburg was founded in 2010 by the experienced team members out of the Formula Student Combustion Team. We are very proud to integrate over 50 members from nearly all faculties of the university in one team. Every team member is part of a subteam and has clearly defined tasks for which he is fully responsible. This season we will participate the first time in the competition and tried to fulfill our own expectations of our first electric race car. One highlight of our 'RP 11e' is the virtual differential, which is provided by the use of two motors on separated rear driveshafts. Furthermore a light suspension consisting of carbon a-arms and aluminum wheel carriers should be mentioned. We are looking forward to meet the other teams and to have a great competition!
Car Specifications
General
| Frame Construction | Tubular space frame with carbonfibre sandwich floor panels |
|---|---|
| Material | S235JR |
| Overall Length (mm) | 2715 |
| Overall Width (mm) | 1500 |
| Overall Height (mm) | 1069 |
| Wheelbase (mm) | 1575 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1210 |
| Weight Front (kg) | 163 |
| Weight Rear (kg) | 245 |
| Suspension | Double unequal length A-Arm with anti-features. Pushrod actuated y-axis oriented spring and damper |
| Tyres | 205/510 R13 34M Continental |
| Wheels | 205/510 R13 34M Continental |
| Drive Type | 428 chain drive |
| Differential | Virtual, sensor-driven differential |
| Cooling | Liquid cooled motors, liquid cooled power electronics |
| Brake System | 4-Disk system, self developed rotors, adjustable brake balance |
| Electronics | MicroAutoBox II as Drive-Controlunit, CAD designed wiring harness, multiple driving dynamics sensors |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Left, Rear Right |
| Max Motor Power | 30 kW, 30 kW |
| Motor Type | Perm PMS-156W |
| Max Motor RPM | 6000 |
| Motor Controller | Infineon HybridKit 2 |
| Max System Voltage (V) | 475 |
| Electrode Materials | LiFePO4-based Cathode/Carbon-based Anod |
| Accumulator Capacity | 5,82 kWh |
| Transmission Ratio Primary | 1:1 |
| Transmission Ratio Secondary | 1:4,6 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.09 | 32 |
4. |
20. |
11. |
15. |
9. |
- |
7. |
- |
10. |
4. |
5. |
0.00 |
503.38 |
|
| 2025.08 | 84 |
47. |
52. |
9. |
40. |
51. |
- |
42. |
- |
- |
- |
- |
0.00 |
218.43 |
|
| 2025.08 | 53 |
35. |
20. |
32. |
30. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
201.20 |
|
| 2024.09 | 34 |
12. |
2. |
8. |
14. |
18. |
- |
12. |
- |
8. |
12. |
- |
0.00 |
416.89 |
|
| 2024.08 | 79 |
50. |
36. |
46. |
46. |
- |
- |
- |
- |
21. |
- |
- |
0.00 |
217.43 |
|
| 2024.08 | 47 |
25. |
4. |
8. |
21. |
- |
- |
- |
- |
12. |
- |
- |
0.00 |
258.00 |
|
| 2023.08 | 29 |
22. |
9. |
7. |
17. |
16. |
- |
- |
- |
- |
- |
- |
0.00 |
261.30 |
|
| 2023.08 | 70 |
36. |
44. |
13. |
24. |
- |
- |
34. |
- |
- |
- |
- |
0.00 |
236.01 |
|
| 2022.08 | 63 |
41. |
47. |
35. |
18. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
206.83 |
|
| 2021.08 | 38 |
31. |
20. |
8. |
24. |
21. |
- |
22. |
- |
23. |
- |
- |
-49.00 |
205.52 |
|
| 2019.08 | 39 |
21. |
4. |
5. |
21. |
23. |
- |
25. |
- |
20. |
- |
- |
0.00 |
260.60 |
|
| 2019.08 | 24 |
16. |
18. |
20. |
16. |
- |
- |
- |
- |
- |
6. |
- |
0.00 |
208.50 |
|
| 2013.09 | 16 |
5. |
4. |
2. |
11. |
6. |
- |
3. |
- |
8. |
6. |
8. |
0.00 |
665.40 |
|
| 2013.08 | 39 |
26. |
23. |
20. |
28. |
18. |
- |
15. |
- |
28. |
- |
- |
0.00 |
281.88 |
|
| 2013.07 | 83 |
53. |
33. |
36. |
39. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
198.50 |
|
| 2012.08 | 39 |
11. |
8. |
23. |
13. |
19. |
- |
23. |
- |
19. |
12. |
5. |
0.00 |
704.20 |
|
| 2012.08 | 32 |
19. |
28. |
21. |
9. |
8. |
- |
18. |
- |
18. |
- |
- |
0.00 |
283.17 |
|
| 2011.08 | 28 |
20. |
28. |
18. |
16. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
171.35 |
|
| x 18 | |||||||||||||||
