Team Details
HAWKS Racing e.V.
| University | Hochschule für Angewandte Wissenschaften Hamburg
DE Hamburg UAS short 19 |
 |
|---|---|---|
| Location | Hamburg, Germany | |
| Homepage | https://www.hawksracing.de/ | |
| Social Media |

|
|
| CV Team | HAWKS Racing e. V. | |
| DV Team | HAWKS Racing Driverless | |
| Short Link | tid.fsg.one/1286 | |
| Event Details | car 169 - waiting | |
Team Description
HAWKS Racing was founded in 2003 and participates in various Formula Student events since 2004.
This year we are designing and building our fifth high voltage electrical driven race car, the H21.
Currently, we are about 50 students from different specialties, working on the project in interdisciplinary groups.
We are looking forward to an awesome season and the upcoming FS-Events in 2026!
#69 #HAWKSRacing #69HAWKS #H21
Event Profile
2025
Info

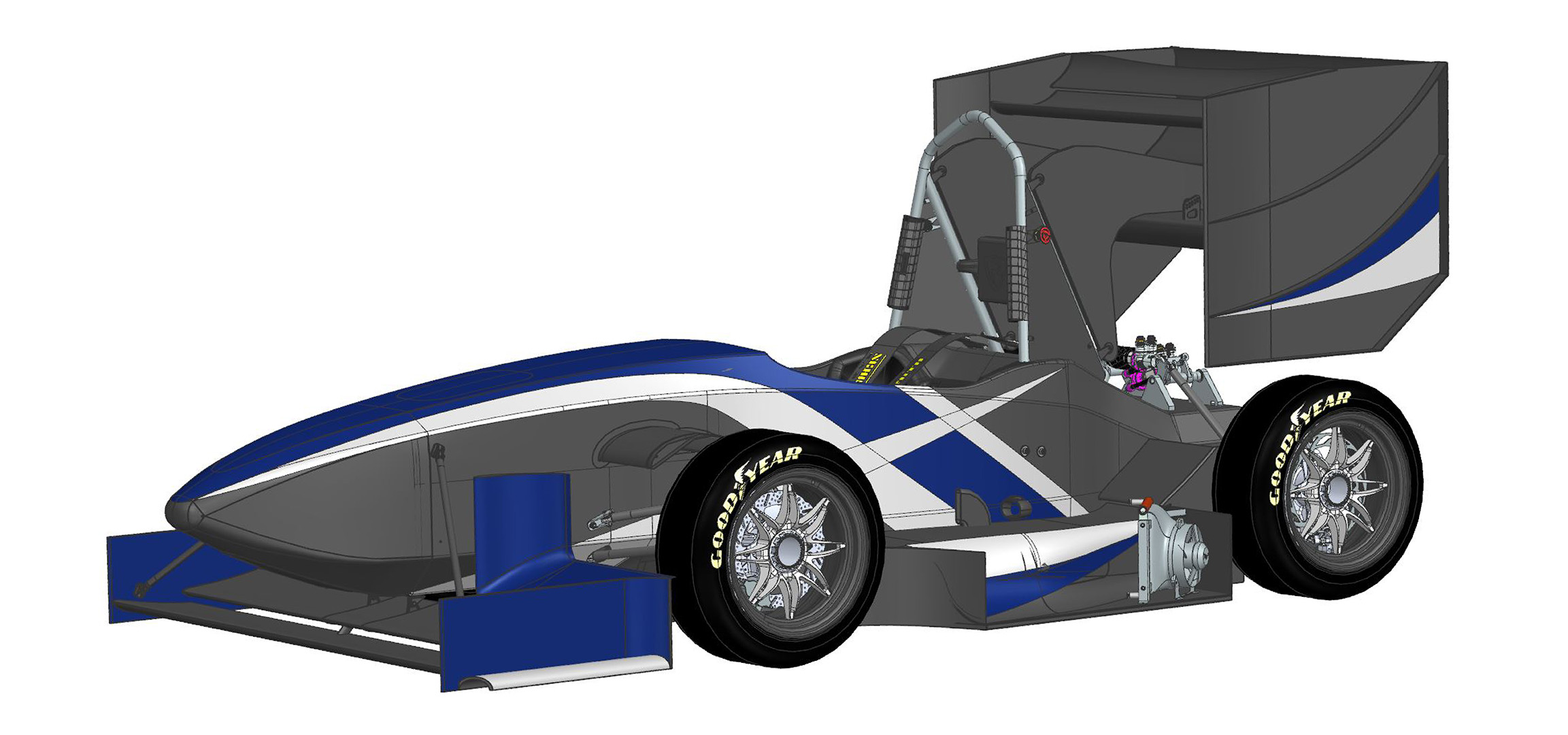

This year HAWKS Racing will be competing with their 20th racecar, H0XX. After building combustion vehicles for 18 years, we switched to electric in 2021. H20 marks the start of our second-generation electric platform with a completely redesigned high voltage powertrain and a full CFRP monocoque. Based on the validated concept of the previous generation, this vehicle introduces several major innovations.
Engineering Design Priorities:
Innovation
Reliability
Simulation and Validation
Car Specifications
General
| Frame Construction | CFRP sandwich panel box structure with tubular steel and aluminium roll bars |
|---|---|
| Overall Length (mm) | 3120 |
| Overall Width (mm) | 1450 |
| Overall Height (mm) | 1180 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1225 |
| Weight Front (kg) | 127 |
| Weight Rear (kg) | 144 |
| Suspension | double wishbone suspension with a front pull-rod and rear push-rod layout |
| Tyres | Goodyear G19 D2773 20.0X7.0-13 |
| Wheels | Selfmade 13 |
| Drive Type | 1 stage, Straight cut Gears |
| Differential | software |
| Cooling | 2- side mounted AKG FSAE Radiator and 110mm fan |
| Brake System | ISR Brakes (Fr), Selfmade brake (Rr) with 248mm diameter 5mm Rotors front, 3mm Back |
| Electronics | highly reliable architecture, pit radio and telemetry, TC and TV control system |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | RR, RL |
| Max Motor Power | 50kW, 50kW |
| Motor Type | RR Emrax 188LC HV , RL Emrax 188LC HV |
| Max Motor RPM | 6500 |
| Motor Controller | UniTek Bamocar D3-700-250 |
| Max System Voltage (V) | 604V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 7,46kWh |
| Transmission Ratio Primary | 4,93 |
| Transmission Ratio Secondary | 1 |
Past Events
2026
No media information available for this year.
Car Specifications
2024
Info

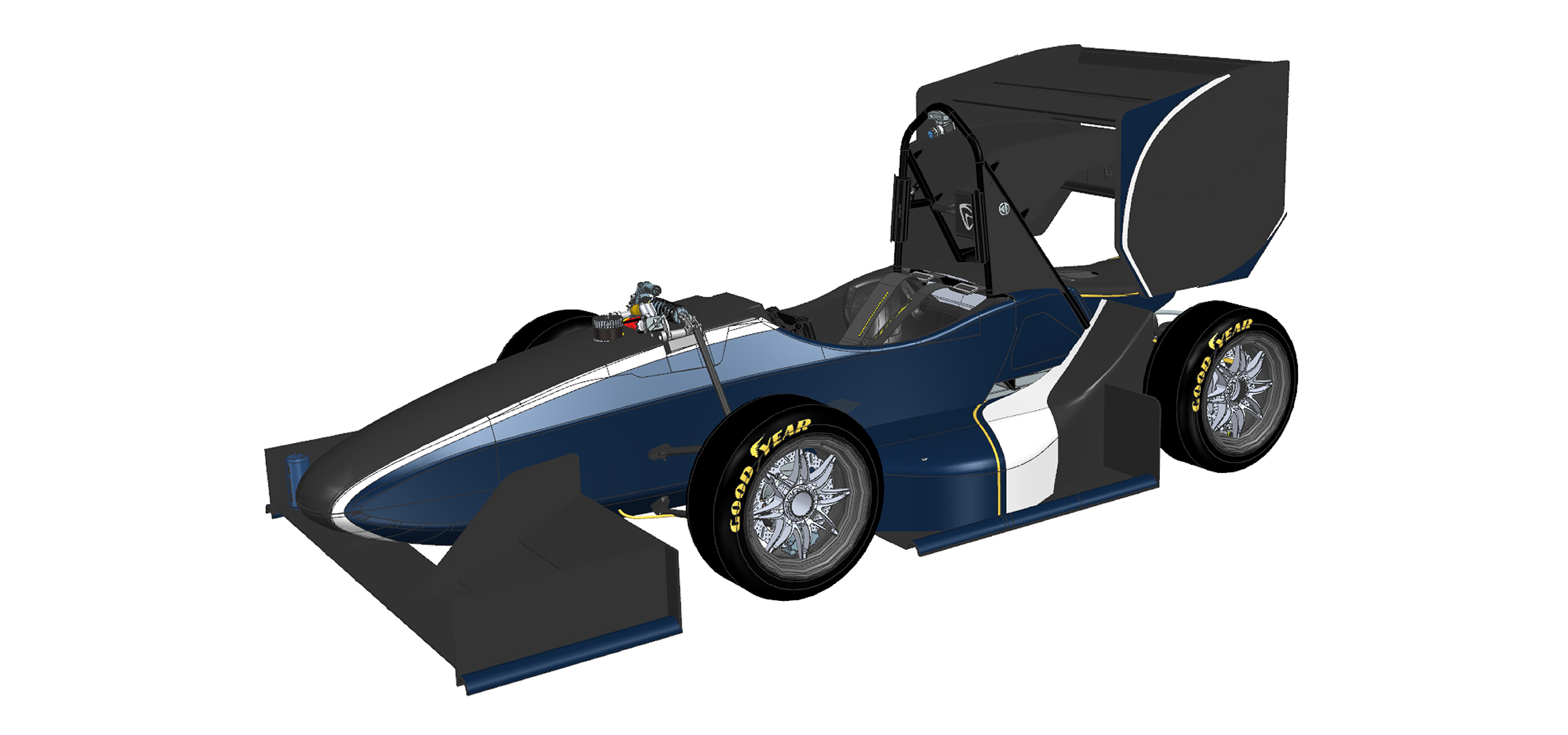

HAWKS Racing's 19th racecar, NOVA, is finally ready to show you how she performs on track! After making the switch to electric in 2021, it's now our third year of driving electric. This year, for the first time in HAWKS history, we will be competing autonomously at an event. In addition to the autonomous system, simulation and validation were also important to us this season in order to get the best out of our car.
Engineering Design Priorities:
Performance
Autonomous System
Simulation and Validation
Rear packaging
Accumulator
Always keep it 69
Car Specifications
General
| Frame Construction | Hybrid Chassis with CFRP sandwich front structure and tubular rearframe |
|---|---|
| Material | aluminum honeycomb, PACL-XR1-5.7-3/16-20-P-5052 |
| Overall Length (mm) | 3100 |
| Overall Width (mm) | 1450 |
| Overall Height (mm) | 1190 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1190 |
| Track Rear (mm) | 1190 |
| Weight Front (kg) | 127 |
| Weight Rear (kg) | 156 |
| Suspension | Double Wishbone Suspension with adjustable camber, toe and compression and rebound |
| Tyres | Goodyear G19 D2773 20.0X7.0-13 |
| Wheels | Selfmade 13 |
| Drive Type | 2 stage spur and bevelgear transmission |
| Differential | limited slip differential with adjustable preload |
| Cooling | Watercooled motor and inverter with 2 rear mounted radiators and fans and a Air cooled accumulator |
| Brake System | ISR Brakes (Fr), Selfmade brake (Rr) with 248mm diameter 5mm Rotors front, 3mm Back. |
| Electronics | Microcontroller based Vehicle-Contol-Unit, Live telemetrie self-developed LoRa based DTU |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear Center |
| Max Motor Power | 109kW |
| Motor Type | Emrax 228 |
| Max Motor RPM | 5500 |
| Motor Controller | UniTek Bamocar D3-700-400 |
| Max System Voltage (V) | 540V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 7,01kWh |
| Transmission Ratio Primary | 1:4,31 |
| Transmission Ratio Secondary | 1:1,8 |
Driverless System
| Processing Units | Intel Core i9-13900E |
|---|---|
| Processing Units FLOPS | x |
| Processing Units Power (W) | 80.0 |
| Cameras | 1 Basler ace - acA1440-73gc + 1 Basler Lens C125-0418-5M-P f4mm |
| Radar Sensors | we do not have one |
| LiDAR Sensors | 1x Ouster OS1-64, 120 m range, 360° horizontal FOV, 45° vertical FOV, uniform beam angle |
| Other Sensors | Kistler Correvit SFII ground speed sensor, VectorNav VN-300 |
| DV System Highlights | Fully self-designed EBS actuators integrated inside pedal box, quickly decoupable steering actuator, robust lidar-based perception, localization using EKF fused lidar and odometry data, global trajectory planner |
2023
Info

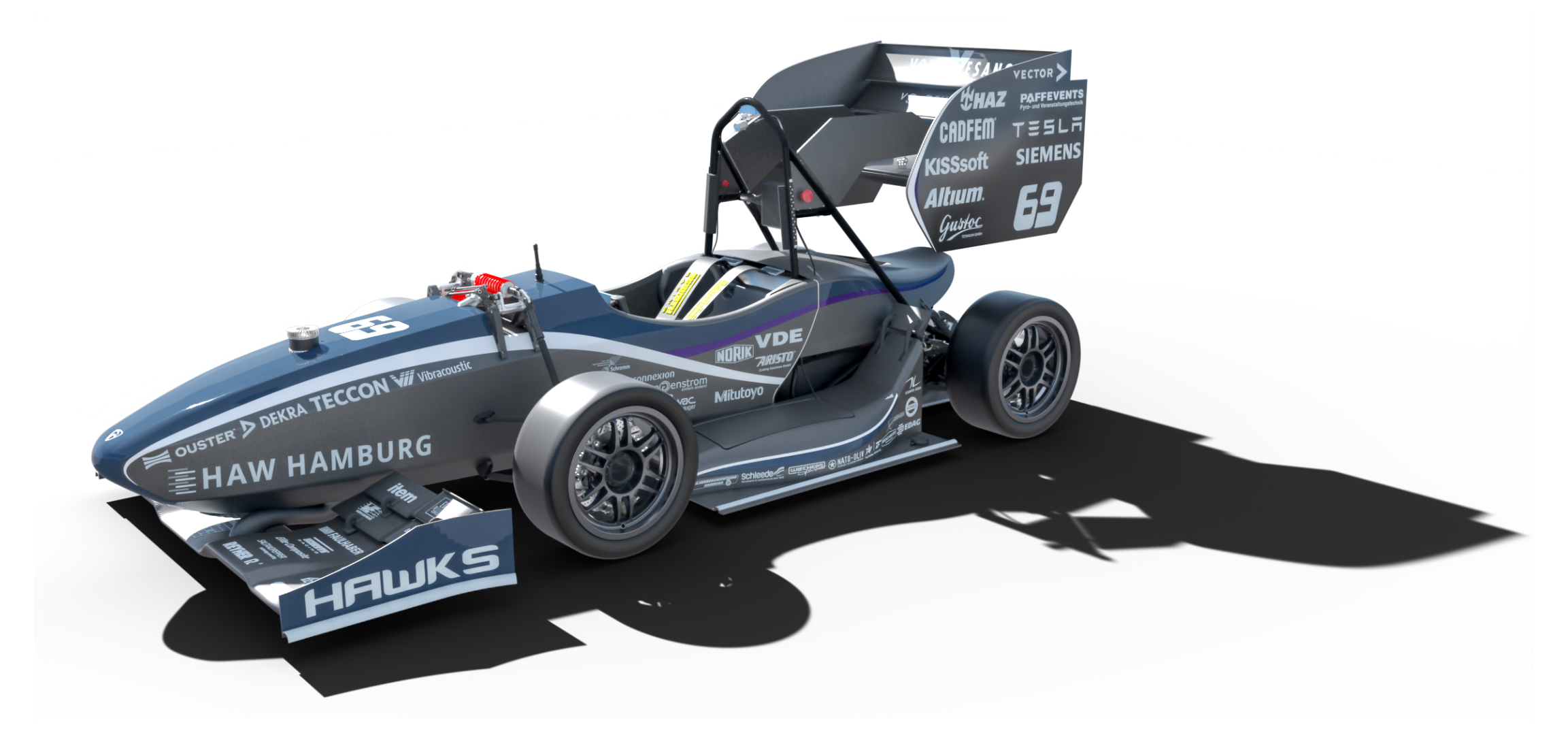

Last year we proved that electric cars don't have to be quiet. With our second electric vehicle "Nayra" we'll try to take it up a step and bring some more noise to the track. The eighteenth car built by HAWKS Racing inherits all of the history of the Team in true 69 spirit (even if the car number says something different). With a revised drive train concept and newly developed embedded systems we want to attack once again, even without a driver.
Engineering Design Priorities:
Rear packaging
Manufacturing
Energy storage
Embedded systems
Autonomous system
Always keep it 69
Car Specifications
General
| Frame Construction | Front monocoque (sandwich structure) with tubular space frame rear section |
|---|---|
| Material | Monocoque: CFRP Twill and UD, aluminum honeycomb, Rohacell; space frame: 1.7218 steel round tubing |
| Overall Length (mm) | 3172 |
| Overall Width (mm) | 1526 |
| Overall Height (mm) | 1247 |
| Wheelbase (mm) | 1600 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 138 |
| Weight Rear (kg) | 155 |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper |
| Tyres | 205/470 R13, Continental C19 / 205/470 R13, Continental C19 |
| Wheels | 7x13-22, 22 mm offset, 1 pc Mg Rim / 7x13-22, 22 mm offset, 1 pc Mg Rim |
| Drive Type | self designed spur gear and beavel gear |
| Differential | limited slip differential (drexler) |
| Cooling | Rear mounted watercooler |
| Brake System | 4-Disk system, self developed rotors, slef developed calipers (rear axle) |
| Electronics | Driver interface unit, live telemetry, vehicle control unit, power distribution unit |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Center rear |
| Max Motor Power | 109 |
| Motor Type | Emrax 228, watercooled axial flux motor |
| Max Motor RPM | 5500 |
| Motor Controller | Bamocar D3 400/700 |
| Max System Voltage (V) | 540V |
| Electrode Materials | Li-Ion (NCM523+Gr) |
| Accumulator Capacity | 7,01 kWh |
| Transmission Ratio Primary | 1:4,1 |
Driverless System
| Processing Units | Intel NUC with Intel Core i7-8559U |
|---|---|
| Processing Units FLOPS | no GPU |
| Processing Units Power (W) | 28 |
| Cameras | none |
| Radar Sensors | none |
| LiDAR Sensors | 1x Ouster OS1-64, 120 m range, 360° horizontal FOV, 45° vertical FOV, uniform beam angle |
| Other Sensors | Kistler Correvit SFII ground speed sensor, VectorNav VN-300 |
| DV System Highlights | Fully self-designed EBS actuators integrated inside the pedal box, quickly uncoupleable steering actuator, simple data processing pipeline, robust lidar-based perception, localization using EKF fused lidar and odometry data |
2022
Info

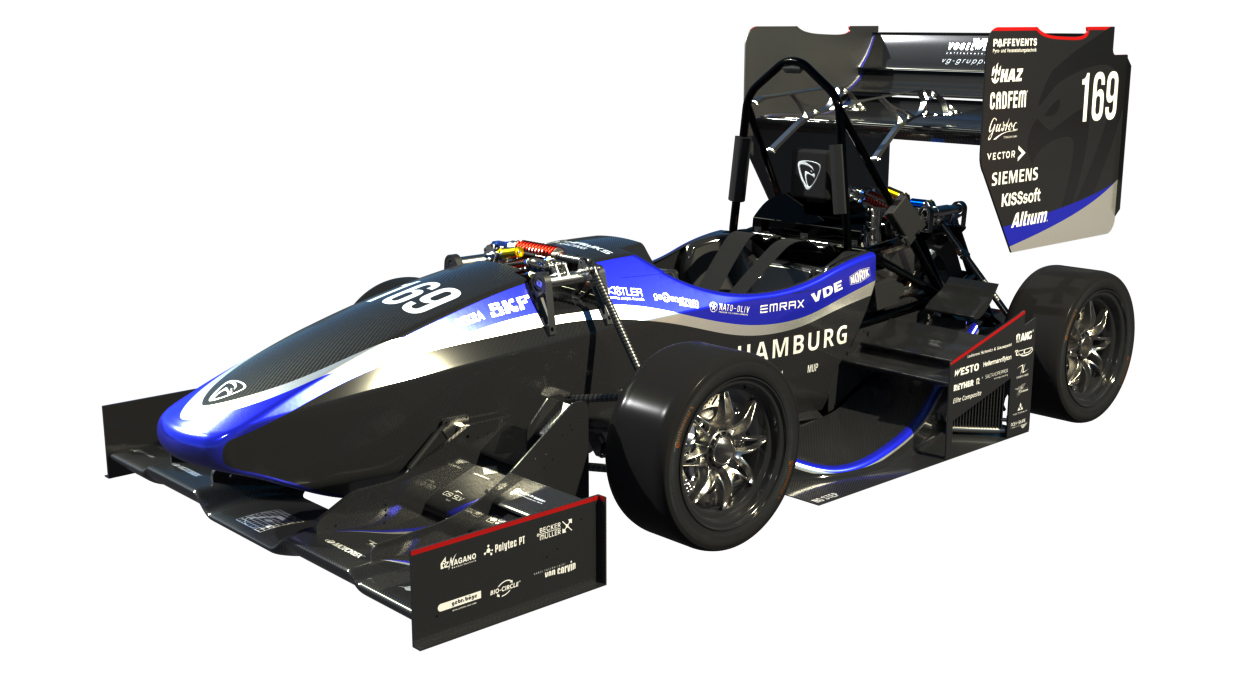

HAWKS Racing, known as one of the loudest combustion teams in FS history, has now been silenced. FSG hoped they wouldn´t have to clean up any more of our oil leaks on the track. But you know what? We won´t let anyone tell us what to do. With a completely new designed, liquid cooled HV-Accumulator and Tractive System, we are prepared to flood the hearts of every electric racing enthusiast. We proudly present: HAAVKE
Engineering Design Priorities:
TS Accumulator
AMS
Hybrid Chassis
Motor Control
Motor Housing
Kinematics
Car Specifications
General
| Frame Construction | Hybrid monocoque and tubular rear frame |
|---|---|
| Material | CFRP Monocoque with aluminium honeycomp, steel rear frame |
| Overall Length (mm) | 3129 |
| Overall Width (mm) | 1430 |
| Overall Height (mm) | 1188 |
| Wheelbase (mm) | 1600 |
| Track Front (mm) | 1170 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 136 |
| Weight Rear (kg) | 167 |
| Suspension | short arm long arm (SLA) with push rods, roll and heave decoupled |
| Tyres | 205x96 R13 Continental C-20 |
| Wheels | 7x13-22mm offset, OZ |
| Drive Type | self designed spur gear drive |
| Differential | limited slip differential (Drexler) |
| Cooling | twin side radiators, electric water pump and electric fans |
| Brake System | 4-Disk-system, self-designed, rotors with 250mm diameter, adjustable bias bar |
| Electronics | self developed AMS, Powerhub w/ electronic and hardware fuses, distributed data collection |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Center Rear |
| Max Motor Power | 109kW |
| Motor Type | Emrax 228 MV LC |
| Max Motor RPM | 5500 |
| Motor Controller | Bamocar D3 700/400 |
| Max System Voltage (V) | 500V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 8.06 kWh |
| Transmission Ratio Primary | 1:4.5 |
| Transmission Ratio Secondary | - |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.09 | 32 |
3. |
3. |
1. |
7. |
7. |
- |
11. |
- |
7. |
3. |
3. |
0.00 |
624.68 |
|
| 2025.08 | 53 |
16. |
27. |
3. |
25. |
25. |
- |
33. |
- |
19. |
12. |
14. |
0.00 |
406.86 |
|
| 2024.09 | 34 |
9. |
23. |
3. |
10. |
16. |
- |
17. |
- |
14. |
8. |
9. |
-20.00 |
438.54 |
|
| 2024.08 | 79 |
15. |
27. |
21. |
51. |
41. |
- |
- |
- |
34. |
6. |
4. |
0.00 |
485.49 |
|
| 2024.08 | 47 |
8. |
17. |
18. |
32. |
18. |
- |
21. |
- |
12. |
7. |
4. |
0.00 |
510.80 |
|
| 2024.07 | 38 |
23. |
- |
12. |
23. |
16. |
- |
- |
- |
20. |
9. |
- |
-15.00 |
207.10 |
|
| 2023.08 | 70 |
32. |
41. |
17. |
24. |
36. |
- |
29. |
- |
31. |
- |
- |
0.00 |
247.58 |
|
| 2023.08 | 31 |
14. |
13. |
12. |
21. |
15. |
- |
- |
- |
12. |
11. |
4. |
0.00 |
381.52 |
|
| 2023.07 | 34 |
16. |
28. |
14. |
20. |
18. |
- |
20. |
- |
17. |
8. |
1. |
-10.00 |
388.70 |
|
| 2022.09 | 38 |
16. |
17. |
19. |
22. |
13. |
- |
- |
- |
10. |
6. |
- |
0.00 |
275.50 |
|
| 2022.08 | 63 |
42. |
42. |
19. |
45. |
30. |
- |
29. |
- |
- |
- |
- |
0.00 |
203.19 |
|
| x 11 | |||||||||||||||
