Team Details
Raftar Formula Racing Electric
| University | Indian Institute of Technology Madras
IN Chennai IITM short 752 |
 |
|---|---|---|
| Location | Chennai, India | |
| Homepage | https://raftariitm.com | |
| Social Media |

|
|
| CV Team | Raftar Formula Racing | |
| DV Team | Vegam Racing | |
| Short Link | tid.fsg.one/753 | |
| Event Details | car 293 - withdrawn | |
Team Description
IIT Madras' FSE team
Event Profile
Past Events
2026
No media information available for this year.
Car Specifications
2024
Info

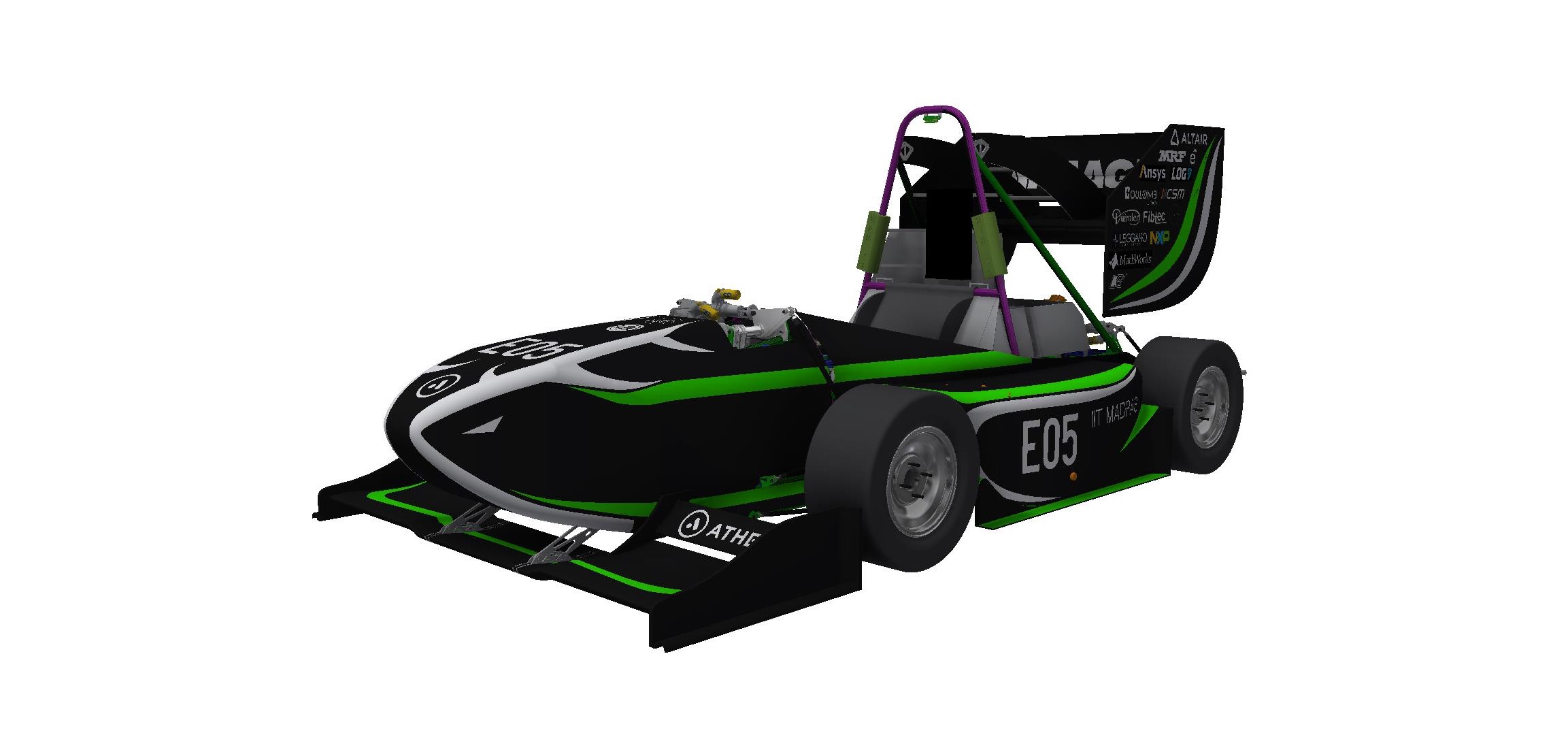

Raftar Formula Racing presents the RFR24, our latest electric car, embodying lessons from the RFR23. This data-driven machine sets new benchmarks for reliability and mechanical prowess. As a second-year FSAE Electric team, we focused on reliability, optimization, and design validation. We rigorously tested the car for 250 km, reduced its weight by 20 kg, and fine-tuned every subsystem targeting redundancies and enhancing performance. This effort lays a strong foundation for future cars.
Engineering Design Priorities:
Decoupled Suspension
Custom BMS
Drag Reduction System
Car Specifications
General
| Frame Construction | Tubular Space Frame Structure |
|---|---|
| Material | ST 52 |
| Overall Length (mm) | 3050 |
| Overall Width (mm) | 1550 |
| Overall Height (mm) | 1220 |
| Wheelbase (mm) | 1590 |
| Track Front (mm) | 1185 |
| Track Rear (mm) | 1155 |
| Weight Front (kg) | 162 |
| Weight Rear (kg) | 174 |
| Suspension | Heave Roll Decoupled Suspension in front & Independent Suspension the rear. |
| Tyres | 457.2 x 152.4 mm R18, MRF ZTD 1E / 457.2 x 152.4 mm R18, MRF ZTD 1E |
| Wheels | 6 x 10 , 35 mm offset , 3 pc Al Rim / 6 x 10 , 35 mm offset , 3 pc Al Rim |
| Drive Type | Chain Drive - 520 Chain |
| Differential | Salisbury Type Limited Slip Differential |
| Cooling | Side Mounted Radiator 1000cc radiator and 300mm electric fan |
| Brake System | 4 - Disk System, Self Developed Rotors with 185 mm diameter, adjustable brake balance |
| Electronics | Integrated TS Enclosure, NXP Custom BMS, Live - Telemetry, Waterproof wiring harness |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear Centre |
| Max Motor Power | 76 |
| Motor Type | Axial Flux Permanent Magnet Synchronous Mot |
| Max Motor RPM | 6500 |
| Motor Controller | Cascadia Motion Rinehart PM100DZ |
| Max System Voltage (V) | 249 |
| Electrode Materials | NMC - Graphite |
| Accumulator Capacity | 7.9 |
| Transmission Ratio Primary | 3.769 |
| Transmission Ratio Secondary | 1 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.01 | 30 |
2. |
12. |
1. |
1. |
- |
- |
- |
- |
- |
- |
- |
-7.00 |
303.44 |
|
| 2024.08 | 79 |
58. |
49. |
16. |
41. |
- |
- |
- |
- |
- |
- |
- |
-20.00 |
186.94 |
|
| 2024.01 | 18 |
2. |
16. |
5. |
1. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
287.92 |
|
| 2023.01 | 21 |
3. |
1. |
4. |
2. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
297.00 |
|
| x 4 | |||||||||||||||
