Team Details
CURE
| University | Duale Hochschule Baden-Württemberg - Mannheim
DE Mannheim DHBW short 858 |
 |
|---|---|---|
| Location | Mannheim, Germany | |
| Homepage | https://curemannheim.de/ | |
| Social Media |

|
|
| DV Team | CURE | |
| Short Link | tid.fsg.one/597 | |
| Car Weight | 260.00 kg | |
| Event Details | car 69 - active | |
Event Profile

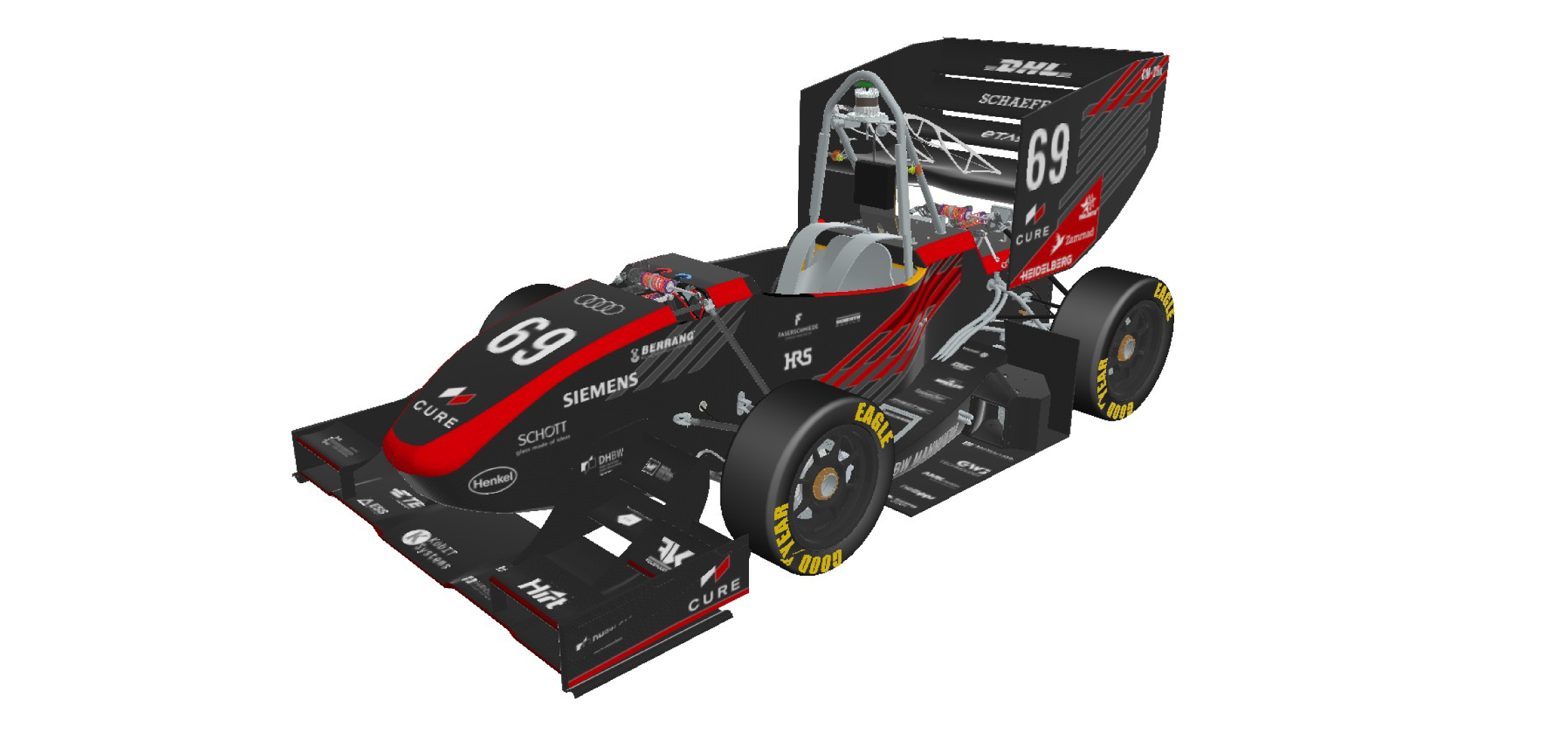

2025
Info
Since 2012, CURE Mannheim, part of DHBW Mannheim, has developed electric race cars for the Formula Student competition. More than 60 active students from engineering, business, and design collaborate closely to build a new prototype each season. The latest car features a self-developed monocoque with increased stiffness for more precise suspension setup. Paired with all-wheel drive and new recuperation, it’s the most efficient car in CURE’s history.
Engineering Design Priorities:
Monocoque
All-Wheel-Drive
LPV-MPC
Recuperation
PlanetaryGearbox
EmbeddedSoftwareModules
Car Specifications
General
| Frame Construction | Aluminium sandwich panel box structure with steel roll bars |
|---|---|
| Material | CFRP Sandwich construction with Aluminium Honeycomb Core; Docol R8 Mainhoop round tube, |
| Overall Length (mm) | 2907 |
| Overall Width (mm) | 1460 |
| Overall Height (mm) | 1182 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1250 |
| Weight Front (kg) | 150 |
| Weight Rear (kg) | 150 |
| Suspension | Double unequal length A-Arm. Pushrod actuated roll-heave spring damper |
| Tyres | 508/178R13, Goodyear 508/178R13 / 508/178R13, Goodyear 508/178R13 |
| Wheels | 7x13, 30mm offset, 1pc Magnesium / 7x13, 30mm offset, 1pc Magnesium |
| Drive Type | all-wheel-drive with planetary gears |
| Differential | - |
| Cooling | Side mounted AKG radiator and |
| Brake System | 4-Disk system, self developed rotors and bores, adjustable brake balance, ISR Brakes |
| Electronics | Torque Vectoring and Traction Control on Vehicle Control Unit, recuperation, LTE Telemetry |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | in every Rim |
| Max Motor Power | 36 per Motor |
| Motor Type | AMKmotion GmbH DYNASYN Synchron-Servomotor |
| Max Motor RPM | 16000 |
| Motor Controller | AMKmotion GmbH AMKASYN |
| Max System Voltage (V) | 600V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 7,46 kWh |
| Transmission Ratio Primary | 1:13.1 |
Driverless System
| Processing Units | AMD Ryzen 8600G |
|---|---|
| Processing Units FLOPS | 300 GigaFl |
| Processing Units Power (W) | 140 W |
| Cameras | 2, Infinity, 80°, Sony IMX392 |
| Radar Sensors | - |
| LiDAR Sensors | 1, 90 Meter, 360°, Ouster OS 1 |
| Other Sensors | - |
| DV System Highlights | The highlights of this year’s autonomous system consist of a Linear Parameter Varying Model Predictive Control (LPV-MPC) and Internal Model Control written in C++, hardware synchronization for an improved perception sensor fusion and a ROS-integrated software-in-the-loop simulation environment that runs all dynamic disciplines. |
Past Events
2026
No media information available for this year.
Car Specifications

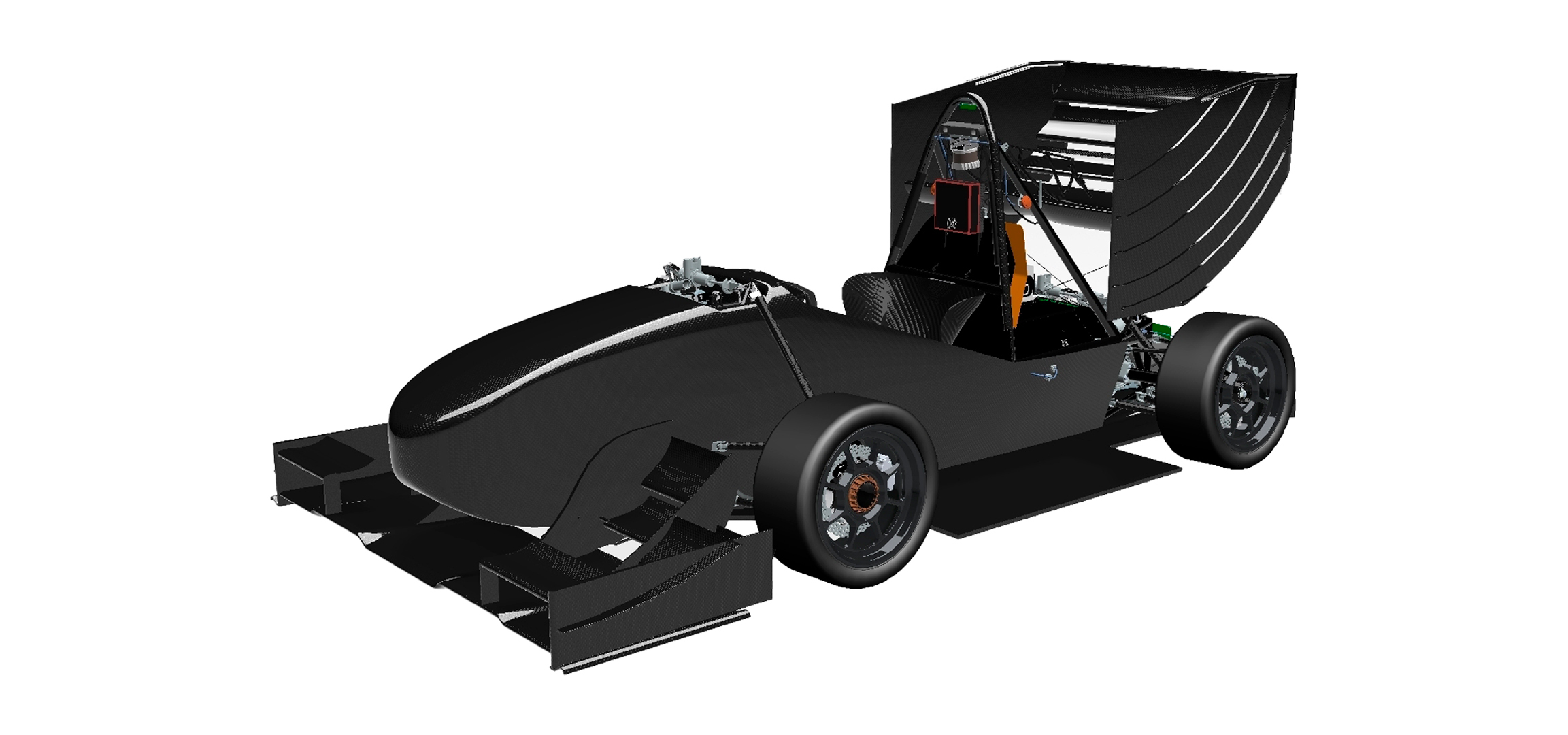

2023
Info
In the 2023 season, we are competing for the second time in EV and DC at Formula Student Germany. The collaboration between engineering and business students from DHBW within the CURE Mannheim team brings a diverse range of skills and expertise to the table. Together, we are forming a team of over 30 active members. Our main goals for this season are the implementation of complex vehicle dynamic control systems and going through all autonomous disciplines successfully.
Engineering Design Priorities:
lessons learned
performance
vehicle dynamics
control systems
validation
brake
Car Specifications
General
| Frame Construction | tubular stell space frame |
|---|---|
| Material | Docol R8, BS4 T45 and E355 tubes |
| Overall Length (mm) | 2947 |
| Overall Width (mm) | 1590 |
| Overall Height (mm) | 1195 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1250 |
| Weight Front (kg) | 154 |
| Weight Rear (kg) | 154 |
| Suspension | Double unequal length A-Arm. Push rod actuated decoupled roll heave spring and damper |
| Tyres | Continental 205/470R13 |
| Wheels | 7x13, 30mm offset, 1pc Magnesium |
| Drive Type | direct rear 2WD, 1 stage planetary gear |
| Differential | n/a |
| Cooling | Water cooled motor and inverters. Rear mounted radiator with an electric fan |
| Brake System | 4-Disk system, self developed rotors with 235 / 220mm diameter and O-Floaters |
| Electronics | Torque Vectoring and Traction Control on Vehicle Control Unit, custom made dashboard |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power | 90kW |
| Motor Type | EMRAX 208 HV |
| Max Motor RPM | 7000 |
| Motor Controller | Unitek Bamocar-PG-D3-700-160 |
| Max System Voltage (V) | 571V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 7,05 |
| Transmission Ratio Primary | 1:6 |
| Transmission Ratio Secondary | n/a |
Driverless System
| Processing Units | S STM32, Raspberry Pi, AMD Ryzen 5 5600G, NVIDIA Tesla T4 |
|---|---|
| Processing Units FLOPS | s 65000 FP |
| Processing Units Power (W) | 135 |
| Cameras | S 1x Stereolabs ZED 2i Stereo Camera: 0.3-20m Range, 110° FOV H, 70° FOV V |
| Radar Sensors | n/a |
| LiDAR Sensors | n/a |
| Other Sensors | 1x Novatel PwrPak7D dual antenna GPS: up to 1cm position and 1° heading accuracy |

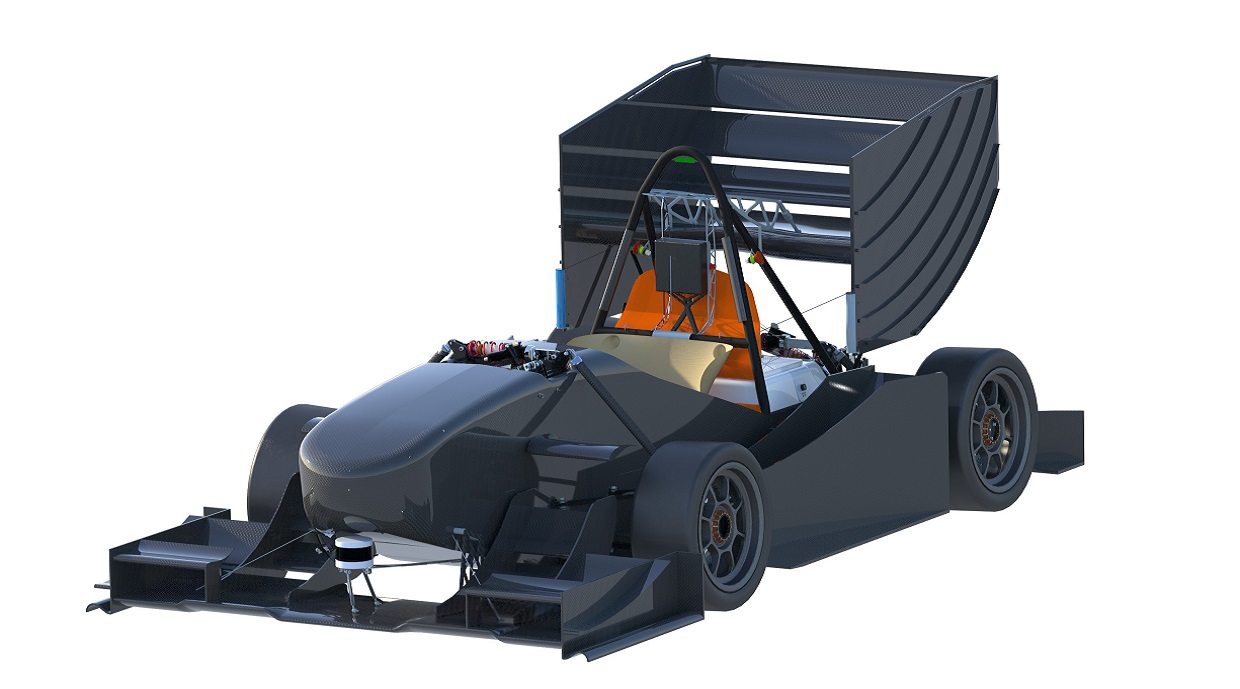

2022
Info
This year we proudly present our new vehicle CM-22xThe fifth vehicle in our team history will again compete as a combined EV and DV team this season. With our renewed suspension, enhanced aerodynamics, the CFRP accumulator container, the first self-developed transmission and the newly implemented Lidar, we will attack the successes of last year.We are looking forward to meeting you!
Engineering Design Priorities:
Reliability
Mass reduction
Testing Time
Knowledge gain
Car Specifications
General
| Frame Construction | steel spaceframe |
|---|---|
| Material | BS4 T45 and DOCOL R8 |
| Overall Length (mm) | 2947 |
| Overall Width (mm) | 1590 |
| Overall Height (mm) | 1195 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1250 |
| Weight Front (kg) | 146 |
| Weight Rear (kg) | 146 |
| Suspension | Double unequal length A-Arm. Pushrod actuated roll-heave spring damper |
| Tyres | 205/470 R13, Continental, front and rear |
| Wheels | 7x13, 30mm offset, 1pc Magnesium same front and rear |
| Drive Type | direct rear 2WD;1 stage planetary gear |
| Differential | n/a |
| Cooling | Water cooled motor and inverters. Rear mounted radiator with an electric fan |
| Brake System | 4-Disk system, self developed rotors with 235 / 220mm diameter and T-Floaters |
| Electronics | self developed Live-Telemetry System, electronic fuses, custom made dashboard |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power | 90kW |
| Motor Type | Axial flux synchronous motors |
| Max Motor RPM | 8000 |
| Motor Controller | Unitek BAMOCAR PG D3 170 / 160 |
| Max System Voltage (V) | 600V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 7.46kWh |
| Transmission Ratio Primary | 1:6 |
| Transmission Ratio Secondary | n/a |
Driverless System
| Processing Units | STM32, Raspberry Pi, AMD Ryzen 5 5600G, NVIDIA Tesla T4 |
|---|---|
| Processing Units FLOPS | 65000 FP16 |
| Processing Units Power (W) | 135W |
| Cameras | 1x Stereolabs ZED 2i Stereo Camera: 0.3-20m Range, 110° FOV H, 70° FOV V |
| Radar Sensors | - |
| LiDAR Sensors | 1x Velodyne VLP16 Puck Hi-Res: 16 Channels, 100m Range, 20° Opening Angle Number |
| Other Sensors | 1x Novatel PwrPak7D dual antenna GPS: up to 1cm position and 1° heading accuracy |
| DV System Highlights | newly developed UKF SLAM algorithm based on single-track model using GPS, Lidar, Camera, IMU, Wheelspeed Sensors and Steering Wheel Angle; also newly developed MPC for control of motor, brake and steering actuator |

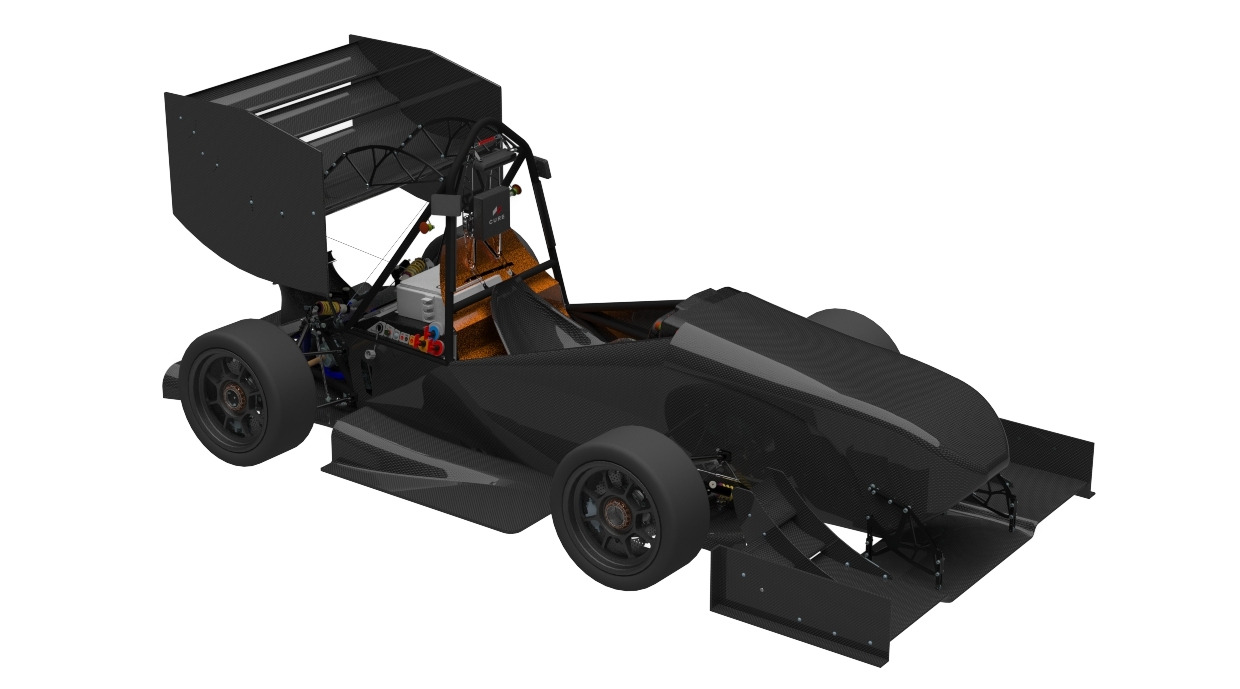

2021
Info
We proudly present EVA, our CM-21x vehicle. She is our fourth EV and first autonomous driving vehicle. Accentuated by a revolutionary aerodynamic package, the enhanced performance of EVA represents the major innovations in vehicle dynamics to date. Not only are the mechanics pathing their way to modernization, but also electronics, where our one-way telemetry via LTE is able to provide a detailed insight into EVA in real-time, of course only to all authorized team members.
Engineering Design Priorities:
Reliability
Performance Decrease
Aerodynamic Downforce
Manufacturability
Car Specifications
General
| Frame Construction | Tubular steel space frame, 28,57 mm diameter tubes |
|---|---|
| Material | Docol Tube R8 |
| Overall Length (mm) | 2947 |
| Overall Width (mm) | 1465 |
| Overall Height (mm) | 1188 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1250 |
| Weight Front (kg) | 150 |
| Weight Rear (kg) | 150 |
| Suspension | double A-Arms, Pullrod actuated horizontally oriented spring and damper |
| Tyres | 205/470 R 13 - Continental |
| Wheels | 205/470 R 13 - Continental |
| Drive Type | Direct drive with single-gear planetary |
| Differential | - |
| Cooling | Rear mounted radiator with two temperature controlled electric fans |
| Brake System | 4-Disk system; AP-Racing Master cylinders; self developed rotors with 240/230 mm (F/R) |
| Electronics | Data logging: Transmits CAN data per LTE & mqtt to server, saving to db & shows on website |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | two motors in cars rear |
| Max Motor Power | 68 kW |
| Motor Type | Axial flux synchronous motors |
| Max Motor RPM | 6000 (7000 active field weakning) |
| Motor Controller | BAMOCAR-PG-D3-700-160 |
| Max System Voltage (V) | 453V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 6.4 kWh |
| Transmission Ratio Primary | 1:5 |
| Transmission Ratio Secondary | - |

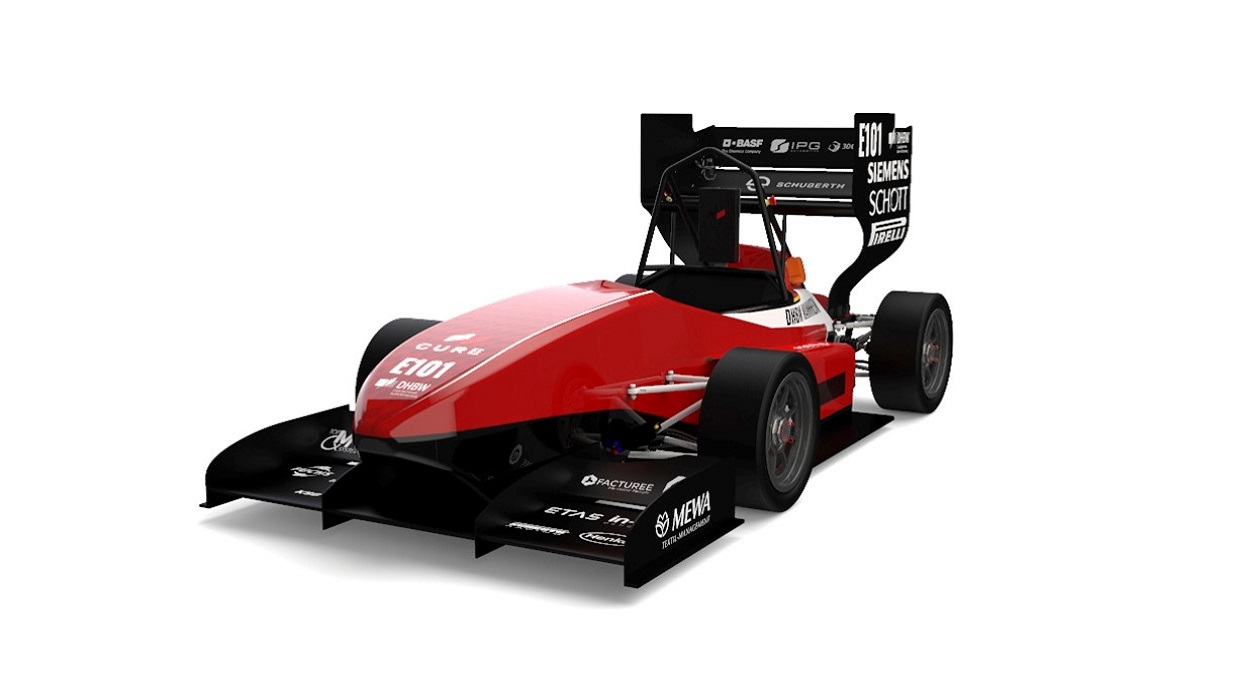

2018
Info
We proudly present you our CM-18e 'Gudrun', which is the second ever build formula student car by 70 students of DHBW Mannheim and the first one to compete in FSG. The car features 'Pedal Scaling', a realtime indication of the accelerator and brake pedal by LED-bars on the sides and rear. It leads to improved road-safety towards other road users when e.g. not only indicating that you are braking but aswell showing how hard you are braking or that you are accelerating again. Have fun watching! :)
Engineering Design Priorities:
Primary Structure
Indicators
Software Development
Suspension
Car Specifications
General
| Frame Construction | Spaceframe with ladder construction out of square tubes and lowered cockpit |
|---|---|
| Material | 25CrMo4 tubes and aluminium honeycomb impact attenuator |
| Overall Length (mm) | 2970 |
| Overall Width (mm) | 1440 |
| Overall Height (mm) | 1180 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 135 |
| Weight Rear (kg) | 200 |
| Suspension | Front and Rear Pushrods, double wishbones, horizontal side mounted air sprung |
| Tyres | Pirelli 180/40-13 / Pirelli 180/40-13 |
| Wheels | 7x13, 30mm Offset, 1 pc Mg Rim / 7x13, 30mm Offset, 1 pc Mg Rim |
| Drive Type | planetary gear |
| Differential | none |
| Cooling | Side pod mounted radiators, thermostatic controlled water pump |
| Brake System | Floating 4 Disk system, 4 piston front calipers and 2 piston rear calipers with 25mm dia. |
| Electronics | Live Wifi-Telemetry data, self developed PCBs and controllerboards |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power | 80kW, 80kW |
| Motor Type | RR, RL: EMRAX 208 |
| Max Motor RPM | 7.000 |
| Motor Controller | Emsiso emDrive H300 |
| Max System Voltage (V) | 454V |
| Electrode Materials | LiPo |
| Accumulator Capacity | 6,26kWh |
| Transmission Ratio Primary | 1:5 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 84 |
56. |
21. |
37. |
32. |
49. |
- |
51. |
- |
- |
- |
- |
-10.00 |
190.20 |
|
| 2025.08 | 53 |
43. |
43. |
30. |
39. |
- |
- |
- |
- |
19. |
- |
- |
-10.00 |
174.30 |
|
| 2025.07 | 15 |
7. |
3. |
7. |
10. |
- |
- |
6. |
- |
6. |
- |
- |
0.00 |
256.98 |
|
| 2024.08 | 29 |
26. |
25. |
24. |
25. |
- |
- |
- |
- |
13. |
5. |
- |
0.00 |
207.10 |
|
| 2024.07 | 15 |
4. |
10. |
6. |
8. |
5. |
- |
7. |
- |
5. |
5. |
- |
0.00 |
333.00 |
|
| 2023.08 | 70 |
38. |
47. |
25. |
24. |
35. |
- |
40. |
- |
31. |
- |
- |
0.00 |
231.46 |
|
| 2023.07 | 34 |
24. |
6. |
22. |
22. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
219.30 |
|
| 2022.08 | 63 |
32. |
56. |
10. |
10. |
30. |
- |
26. |
- |
29. |
11. |
- |
-20.00 |
249.94 |
|
| 2022.07 | 30 |
21. |
18. |
10. |
21. |
15. |
- |
13. |
- |
12. |
- |
- |
-10.00 |
204.00 |
|
| 2021.08 | 38 |
9. |
33. |
13. |
6. |
16. |
- |
25. |
- |
15. |
9. |
12. |
0.00 |
579.53 |
|
| 2021.07 | 27 |
6. |
26. |
19. |
16. |
12. |
- |
11. |
- |
12. |
6. |
5. |
0.00 |
409.10 |
|
| 2019.08 | 24 |
20. |
19. |
10. |
20. |
- |
- |
- |
- |
- |
- |
- |
-20.00 |
171.30 |
|
| 2019.07 | 25 |
21. |
12. |
19. |
- |
7. |
- |
8. |
- |
9. |
5. |
- |
0.00 |
153.96 |
|
| 2019.07 | 21 |
19. |
13. |
14. |
18. |
- |
- |
- |
- |
- |
- |
- |
-5.00 |
163.96 |
|
| 2018.07 | 18 |
16. |
9. |
11. |
13. |
- |
- |
- |
- |
- |
- |
- |
-110.00 |
100.46 |
|
| x 15 | |||||||||||||||
