Team Details
E-Team Duisburg-Essen
| University | Universität Duisburg-Essen
DE Duisburg U short 689 |
 |
|---|---|---|
| Location | Duisburg, Germany | |
| Homepage | https://eteam-due.de/content/ | |
| Social Media |

|
|
| Short Link | tid.fsg.one/352 | |
| Event Details | car 140 - withdrawn | |
Event Profile
2025
Info

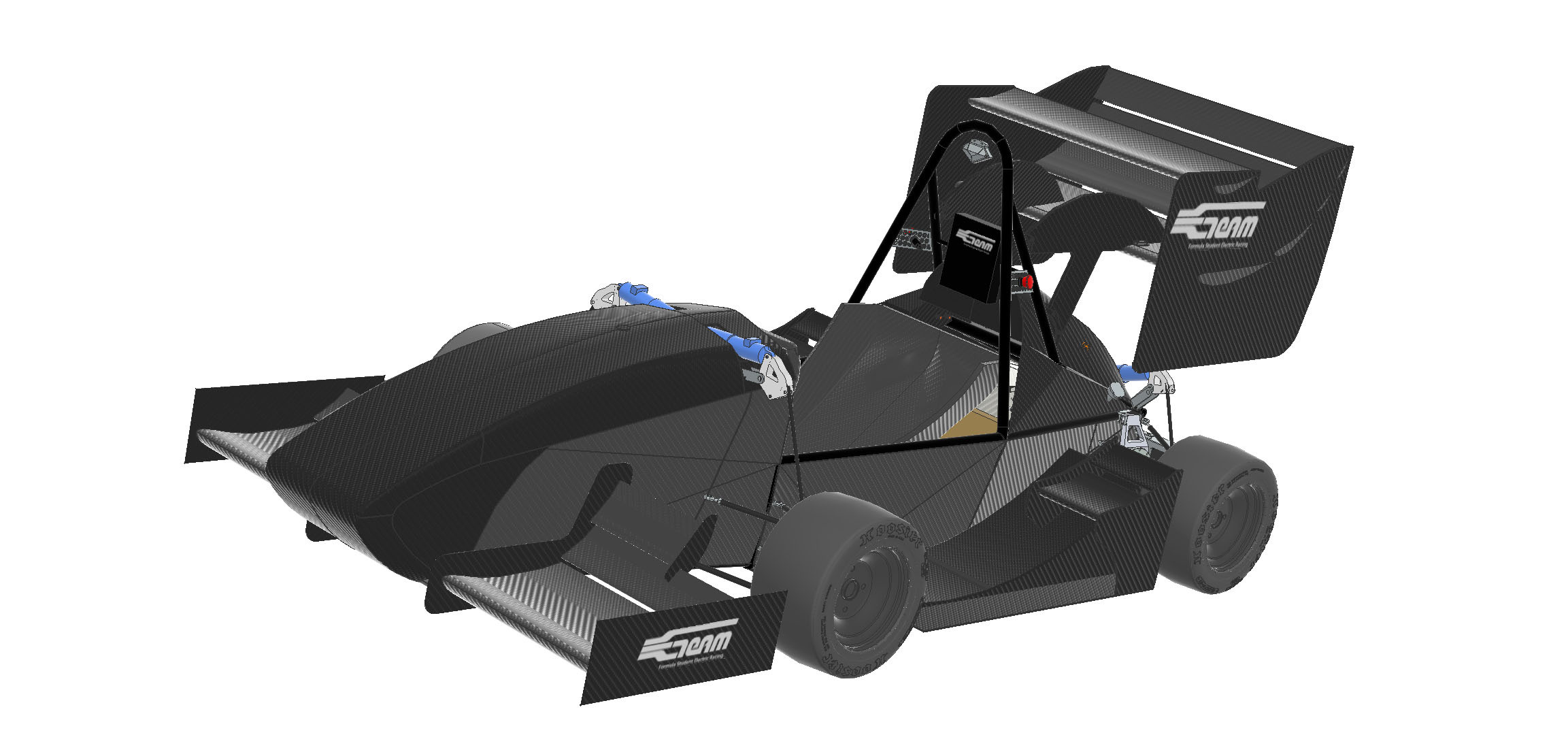

Founded in 2010, E-Team Duisburg-Essen proudly presents the A40-06. This season, our focus was clear—strip complexity, refine the essentials, and build a car that does the basics exceptionally well. From a lightweight tubular spaceframe to 10” wheels, every decision aimed at reducing weight and boosting efficiency. We simplified assembly, improved maintainability, and ensured seamless subsystem integration. The result: a fast, reliable car, built by a focused and passionate team.
Engineering Design Priorities:
Easy maintenance
Weight reduction
Topology optimization
CFD
Iteration
Aramid
Car Specifications
General
| Frame Construction | Tubular space frame |
|---|---|
| Material | Docol Tube R8 |
| Overall Length (mm) | 3067 |
| Overall Width (mm) | 1460 |
| Overall Height (mm) | 1198 |
| Wheelbase (mm) | 1541 |
| Track Front (mm) | 1220 |
| Track Rear (mm) | 1120 |
| Weight Front (kg) | 118 |
| Weight Rear (kg) | 220 |
| Suspension | Double unequal-length A-arm with pushrod-actuated horizontal monotube KW 3A damper |
| Tyres | 406x190 R10, Hoosier R20 / 406x178 R10, Hoosier W3 |
| Wheels | 7.0x10, -20 mm offset, 3 pc forged Al Rim / 7.0x10, -20 mm offset, 3 pc forged Al Rim |
| Drive Type | planetary |
| Differential | n/a |
| Cooling | Water-based cooling system with dual rear radiators and electric fans |
| Brake System | 4-Disk system |
| Electronics | selfdesigned AMS, ECU, Live-Telemetry System; Multifunctional Steering Wheel |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power | 75 kW per motor |
| Motor Type | Emrax 208 |
| Max Motor RPM | 6000 |
| Motor Controller | Unitek Bamocar PG D3 |
| Max System Voltage (V) | 557 |
| Electrode Materials | LiPo |
| Accumulator Capacity | 9.35424 |
| Transmission Ratio Primary | 1:5 |
| Transmission Ratio Secondary | n/a |
Past Events
2023
Info

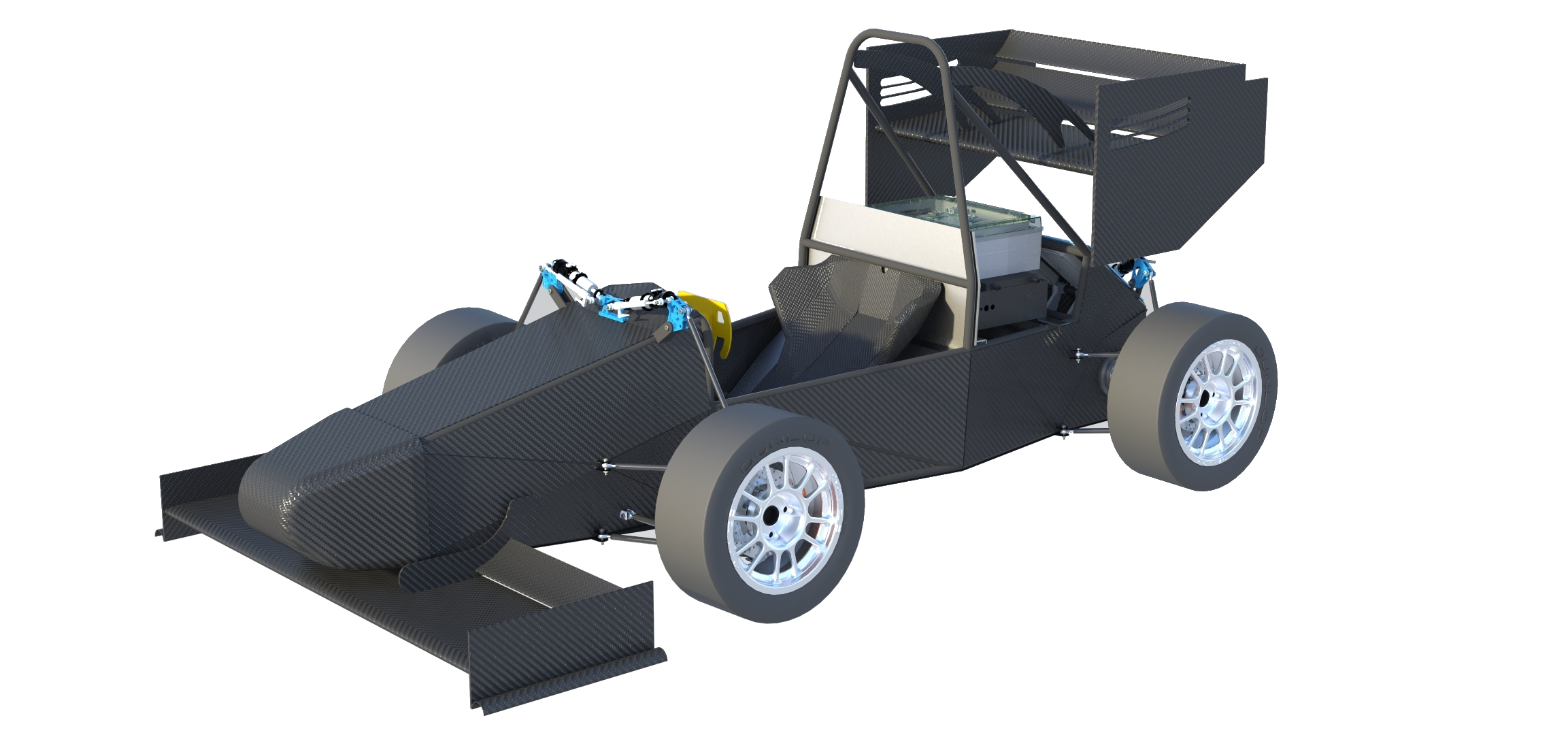

We are the E-Team Duisburg-Essen, comprising 60 members from 6 technical and 2 organizational departments. Our latest project, the A40-05, features a sponsored Apex transmission, new HVDB, HV-Accumulator, and modular Tractive Systems for efficient troubleshooting. The aerodynamics have been redesigned for interchangeable front and rear wing parts. In suspension, we use topology-optimization to 3D-printed our metal components.
Engineering Design Priorities:
Modularity
Simplicity
Topology optimization
weight reduction
-
-
Car Specifications
General
| Frame Construction | Tubular space frame |
|---|---|
| Material | E235 and E355 |
| Overall Length (mm) | 2983 |
| Overall Width (mm) | 1560 |
| Overall Height (mm) | 1256 |
| Wheelbase (mm) | 1580 |
| Track Front (mm) | 1260 |
| Track Rear (mm) | 1220 |
| Weight Front (kg) | 73 |
| Weight Rear (kg) | 294 |
| Suspension | Double unequal wishbone. push rod suspension. Horizontal oriented spring and damper |
| Tyres | Goodyear 20.0X7.0‐13 front and rear |
| Wheels | 7Jx13 AL-Rim Front and rear |
| Drive Type | planetary |
| Differential | n/a |
| Cooling | Rear mounted radiator with electric fans |
| Brake System | 4-Disk system |
| Electronics | selfdesigned Live-Telemetry System |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power | 75kW |
| Motor Type | Emrax 208 |
| Max Motor RPM | 6000 |
| Motor Controller | Unitek Bamocar PG D3 |
| Max System Voltage (V) | 571V |
| Electrode Materials | LiPo |
| Accumulator Capacity | 7,14kWh |
| Transmission Ratio Primary | 1:5 |
| Transmission Ratio Secondary | n/a |
2013
Info

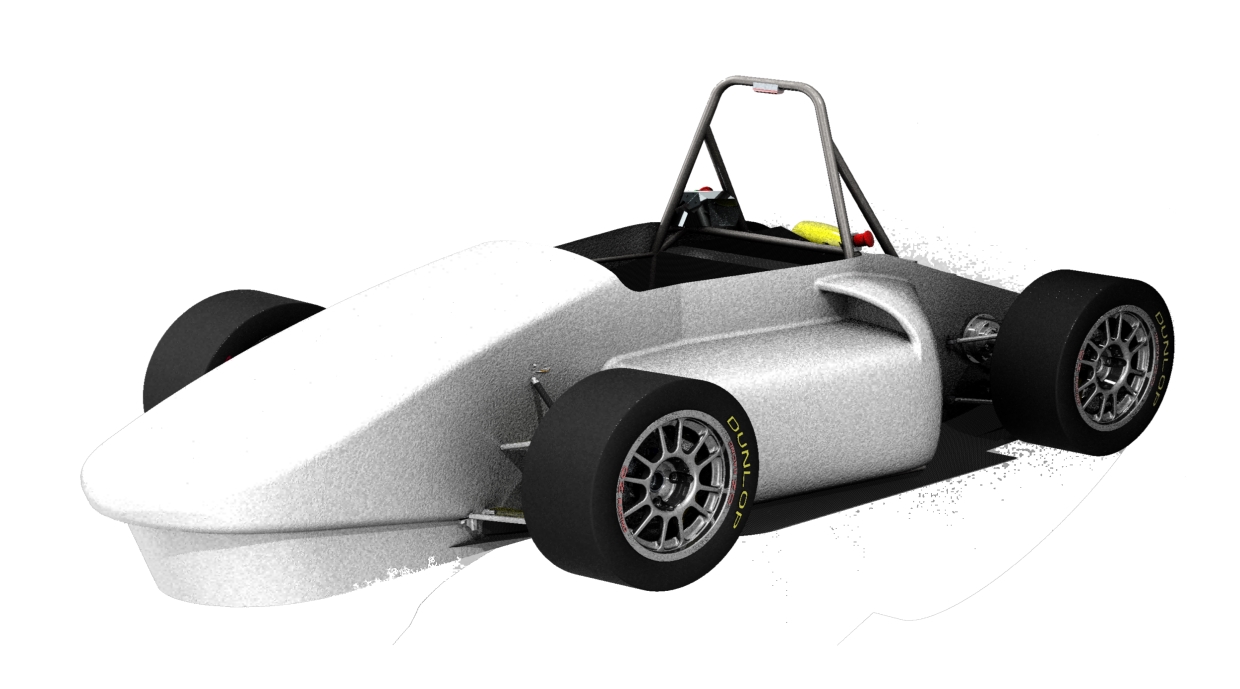

The A40 Electra is the first car of the formula student electric team from the University of Duisburg-Essen. Founded in the end of 2010, we are going to participate in the Formula Student Event in Hockenheim 2013 for the first time. Ever since we started designing an electric racing car we constantly enhanced our knowledge and manpower, now we are nearly 30 Students. Our A40 Electra is driven by two 30kW electric motors that are transmitting their power through a 7:1 ratio planetary gearbox. Noticeable is our new, self-designed and self-produced skin and the new, casted wheel carriers that were designed by our team as well. All major electronic parts offer a maximum of safety and serviceability. We are hoping to achieve our aims and show a memorable performance in Hockenheim this year!
Car Specifications
General
| Frame Construction | Tubular space frame |
|---|---|
| Material | S355 and E335, 15mm to 25 diameter |
| Overall Length (mm) | 2778 |
| Overall Width (mm) | 1375 |
| Overall Height (mm) | 1046 |
| Wheelbase (mm) | 1575 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1180 |
| Weight Front (kg) | 181 |
| Weight Rear (kg) | 242 |
| Suspension | Double unequal length A-Arms, Push and pull rod acutated horizontally oriented damper |
| Tyres | Dunlop, 175/505R13 / Dunlop, 175/505R13 |
| Wheels | OZ Formula Student 7Jx13 / OZ Formula Student 7Jx13 |
| Drive Type | Planetary gearbox CVT |
| Differential | - |
| Cooling | water cooled, side mounted radiators |
| Brake System | 4-Disks, self developed floating rotors (front: 220mm., rear: 202mm dia.), conventional calipers |
| Electronics | CAN-Steering sensor, Rapid prototyping ECU, BMS with WLAN monitoring, CAN compatible inverters |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power | 30kW |
| Motor Type | Heinzmann PMS 156, synchronous |
| Max Motor RPM | 6000 |
| Motor Controller | Bamocar D3 |
| Max System Voltage (V) | 600 |
| Electrode Materials | LiFePo4-graphite |
| Accumulator Capacity | 6.5 kWh |
| Transmission Ratio Primary | 1:7 |
| Transmission Ratio Secondary | - |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.09 | 32 |
33. |
26. |
29. |
31. |
- |
- |
- |
- |
- |
- |
- |
-100.00 |
0.00 |
|
| 2023.08 | 70 |
69. |
61. |
70. |
66. |
- |
- |
- |
- |
- |
- |
- |
-30.00 |
62.76 |
|
| 2023.08 | 31 |
31. |
28. |
30. |
31. |
- |
- |
- |
- |
- |
- |
- |
-30.00 |
58.32 |
|
| 2022.09 | 38 |
36. |
36. |
36. |
35. |
17. |
- |
17. |
- |
- |
- |
- |
0.00 |
121.10 |
|
| 2022.07 | 26 |
21. |
23. |
21. |
20. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
143.46 |
|
| 2021.10 | 18 |
16. |
16. |
12. |
13. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
135.04 |
|
| 2019.08 | 15 |
14. |
11. |
11. |
13. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
199.00 |
|
| 2019.07 | 25 |
18. |
9. |
23. |
21. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
165.30 |
|
| 2018.07 | 18 |
13. |
11. |
9. |
16. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
182.25 |
|
| 2017.08 | 30 |
30. |
25. |
- |
- |
- |
- |
- |
- |
- |
- |
- |
0.00 |
49.00 |
|
| 2016.08 | 10 |
6. |
5. |
8. |
9. |
9. |
- |
7. |
- |
5. |
5. |
4. |
0.00 |
500.29 |
|
| 2016.07 | 28 |
22. |
22. |
25. |
15. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
127.50 |
|
| 2015.09 | 20 |
16. |
18. |
17. |
13. |
- |
- |
- |
- |
- |
- |
- |
-50.00 |
132.00 |
|
| 2015.08 | 30 |
29. |
26. |
29. |
28. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
100.73 |
|
| 2013.08 | 40 |
40. |
36. |
36. |
39. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
121.00 |
|
| 2012.09 | 17 |
16. |
12. |
- |
16. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
18.69 |
|
| x 16 | |||||||||||||||
