Team Details
Racing Power Münster e.V.
| University | FH Münster
DE Münster UAS short 1453 |
 |
|---|---|---|
| Location | Münster, Germany | |
| Homepage | https://teamrpm.de | |
| Social Media |

|
|
| Short Link | tid.fsg.one/1414 | |
| Event Details | car 91 - withdrawn | |
Team Description
We are a relatively new team to Formula Student. Established towards the end of 2022, we spent the whole of 2023 laying the ground work for a debut in the 2024 season. With the knowledge gathered in these first years, we have now returned with our second car: the RPX-02. Close to 100 kilograms lighter than its predecessor and powered by two Emrax 188 motors with a dual chain drive system, we aim to make a significant leap in performance compared to our first ever car, the seriously obese RPX-01.
Event Profile

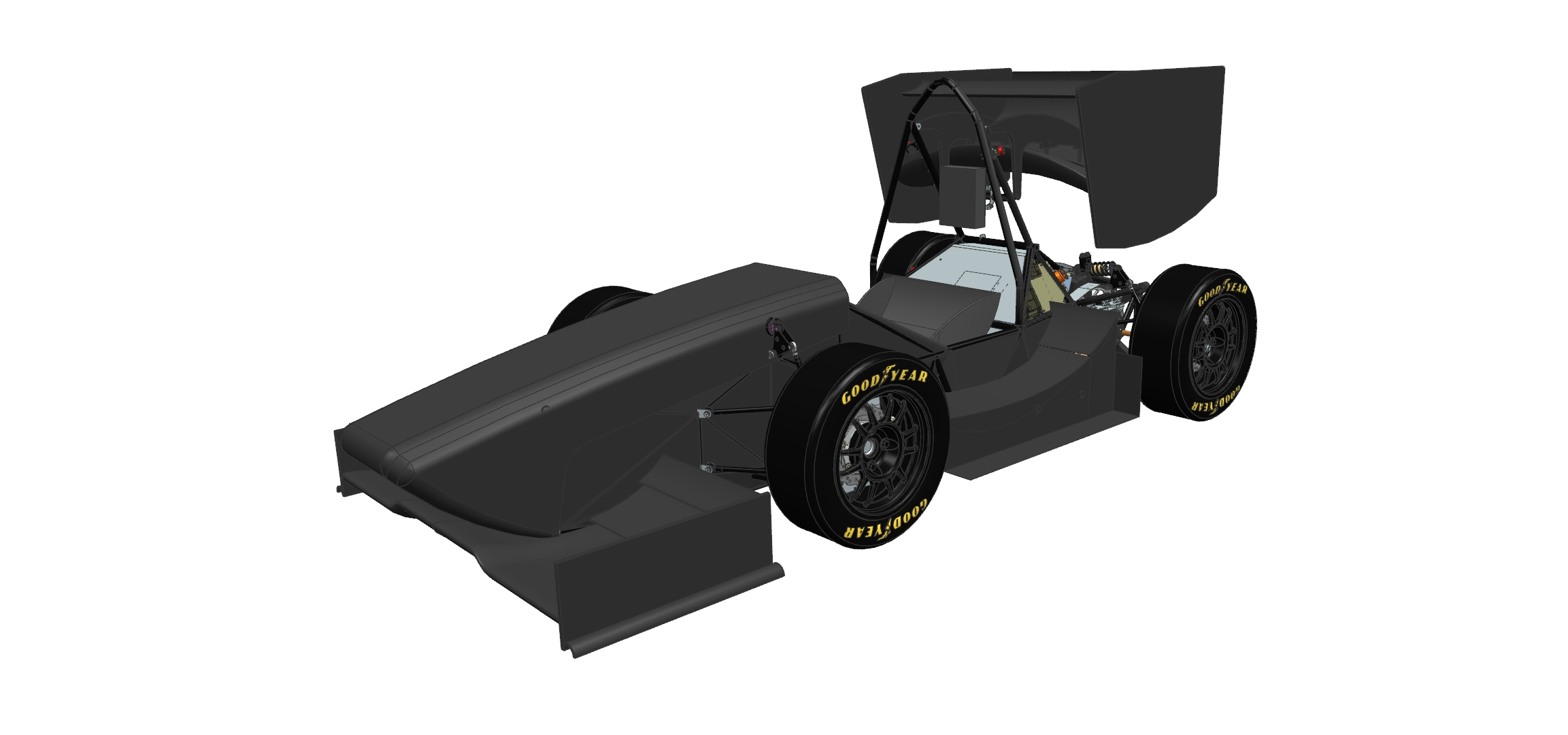

2025
Info
We are a relatively new team to Formula Student. Established towards the end of 2022, we spent the whole of 2023 laying the ground work for a debut in the 2024 season. With the knowledge gathered in these first years, we have now returned with our second car: the RPX-02. Close to 100 kilograms lighter than its predecessor and powered by two Emrax 188 motors with a dual chain drive system, we aim to make a significant leap in performance compared to our first ever car, the seriously obese RPX-01.
Engineering Design Priorities:
Weight
Weight Balance
Reliability
Car Specifications
General
| Frame Construction | Tubular Space Frame |
|---|---|
| Material | Steel |
| Weight Front (kg) | 174 |
| Weight Rear (kg) | 174 |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power | 60 kW |
| Motor Type | RR, RL: Emrax 188 |
| Max Motor RPM | RR, RL: 8000 |
| Max System Voltage (V) | 453, |
| Accumulator Capacity | 7,08 |
Past Events

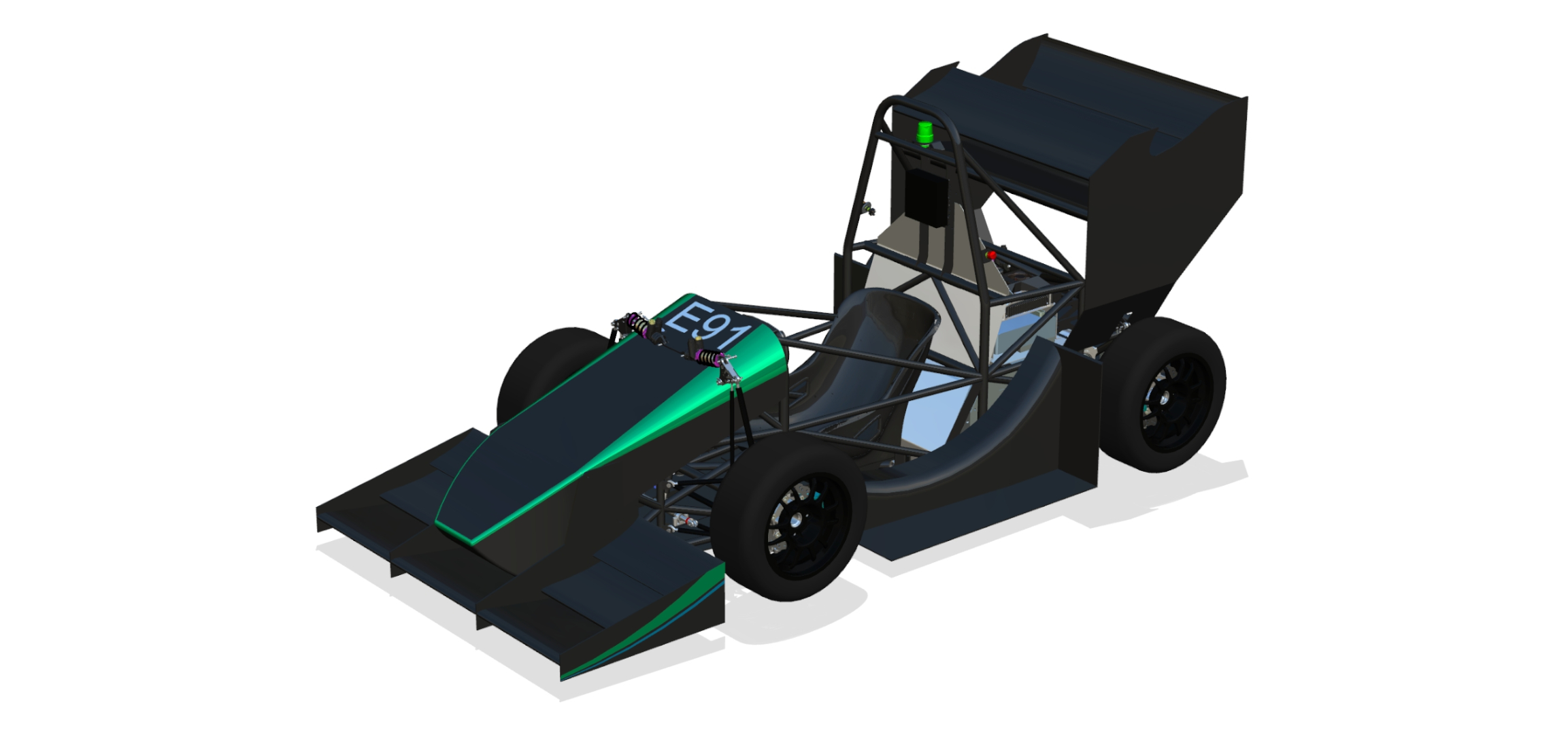

2024
Info
Our newly founded team consists of 35 students from various departments at Münster University of Applied Sciences. We have set ourselves the goal of building our first racing car - the RPX-01. We want to take part in the first events with the all-electric car in 2024.
Engineering Design Priorities:
teamrpm
RPX-01
racingpowermuenster
uasmuenster
mission2024
campussteinfurt
Car Specifications
General
| Frame Construction | Steel frame |
|---|---|
| Material | / |
| Overall Length (mm) | 3046 |
| Overall Width (mm) | 1400 |
| Overall Height (mm) | 1200 |
| Wheelbase (mm) | 1600 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 143 |
| Weight Rear (kg) | 245 |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper |
| Tyres | 20.0X7.0-13, Slick - G-19 |
| Wheels | SUPERLEGG.COMP. 7x13 ET 22 4x100 SPECIAL |
| Drive Type | / |
| Differential | / |
| Cooling | / |
| Brake System | / |
| Electronics | / |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear right & left |
| Max Motor Power | 7kW |
| Motor Type | EMRAX 188 |
| Max Motor RPM | 7000 |
| Motor Controller | Bamocar |
| Max System Voltage (V) | 490 |
| Electrode Materials | / |
| Accumulator Capacity | 7,6kWh |
| Transmission Ratio Primary | / |
| Transmission Ratio Secondary | / |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2024.08 | 79 |
79. |
77. |
- |
- |
- |
- |
- |
- |
- |
- |
- |
0.00 |
33.78 |
|
| x 1 | |||||||||||||||
