Team Details

CAT-Racing

University	Fachhochschule Coburg DE Coburg UAS short 126
Location	Coburg, Germany
Homepage	https://cat-racing.de/
Social Media
CV Team	CAT-Racing
Short Link	tid.fsg.one/1410
Event Details	car 70 - withdrawn

Team Description

The thought to found a "Formula Student"-Team in Coburg originated among a group of students in autumn 2006.

This project plan hit immediately on big interest with students of the most different subjects and the college of Coburg.

Some basic conditions of the realisation of the project had to be created and already it went off. The official starting signal was given at the foundation meeting on the 03.03.2007 at which already more than 30 students were put down as members.

Today the team passes Automotive Technology and Management, Business Administration, Electrical and Mechanical Engineering of more than 50 members from the courses of studies.

The organizational structure of the team is split in two areas: Technology and Economy.

Every single professional team is subordinated to one of these areas and stands in each case under the guidance of a team leader.

Only by the engaged and interested appearance of the members who meet weekly in their professional teams and management teams this project has become possible.

Event Profile

2025

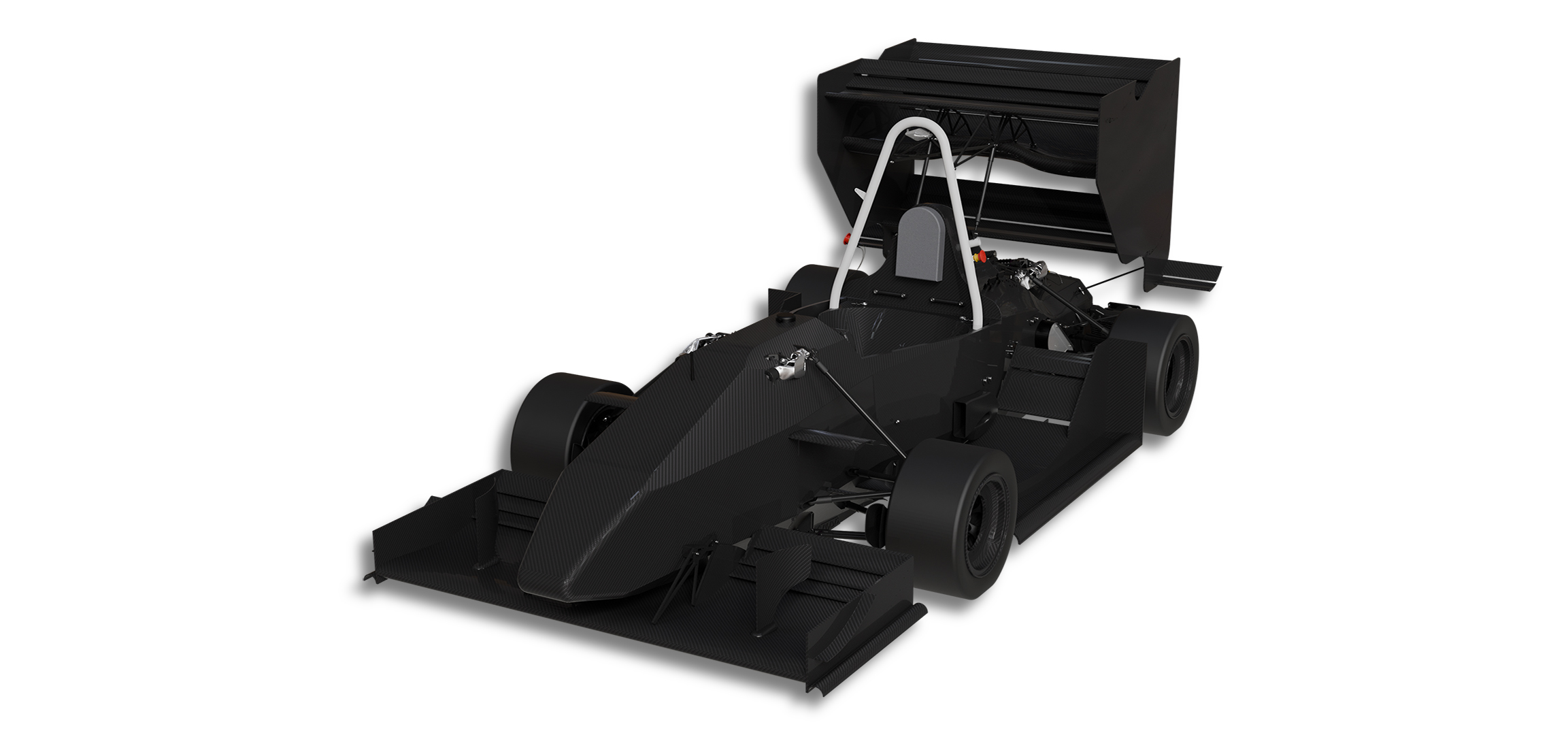

Car #70

Info

This year we aren't able to tell you the name of our car till the deadline. After we weren't able to build a driving car last year, we tried our best to get a running car this year. We also designed a completely new monocoque. We also developed a new improved Heave/Roll System. We are looking forward to the events.

Engineering Design Priorities:

Monocoque Planetary Gearbox AMS Aerodynamic package Heave/Roll System

Car Specifications

General

Frame Construction	CFRP monocoque
Material	CFRP monocoque
Overall Length (mm)	3048
Overall Width (mm)	1444
Overall Height (mm)	1200
Wheelbase (mm)	1535
Track Front (mm)	1230
Track Rear (mm)	1220
Weight Front (kg)	162
Weight Rear (kg)	108
Suspension	Double unequal length A-Arm. Push rod actuated horizontally oriented decoupled Heave/Roll
Tyres	16x7.5-10 Hoosier R20 / 16x7.5-10 Hoosier R20
Wheels	Custom milled aluminum center with CFK shell 10x7
Drive Type	chain drive, drive shaft, planetary gear
Differential	electrical differential
Cooling	double-ended TSAC colling with electric fans, watercooling for motor and inverter with electric fan
Brake System	4-Disk system, self developed floating rotors FA: D 184 mm, RA: D 178 mm, fixed caliper
Electronics	wiring harness sealed to IP67, VCU: TTC580, VectorNav VN200 sensor, self developed AMS

Powertrain

Number of Motors	2
Motor Location	Rear Right, Rear Left
Max Motor Power	60kW, 60kW
Motor Type	EMRAX 188 LC HV
Max Motor RPM	8000
Motor Controller	UniTek BAMOCAR-PG-D3-700-160
Max System Voltage (V)	604
Electrode Materials	NMC
Accumulator Capacity	8.1648
Transmission Ratio Primary	4.5:1
Transmission Ratio Secondary	1:1
