Team Details
As of 2022, this class has been integrated into the other two classes.
Ecurie Aix Formula Student Team RWTH Aachen e.V.
| University | Rheinisch-Westfälische Technische Hochschule Aachen
DE Aachen RWTH short 14 |
|---|---|
| Location | Aachen, Germany |
| Homepage | https://ecurie-aix.de |
| Social Media |

|
| CV Team | Ecurie Aix - Formula Student Team RWTH Aachen e.V. |
| EV Team | Ecurie Aix Formula Student Team RWTH Aachen e.V. |
| Short Link | tid.fsg.one/774 |
Team Description
We are the FSD Team of RWTH Aachen University.
Event Profile
Past Events
2021
Info

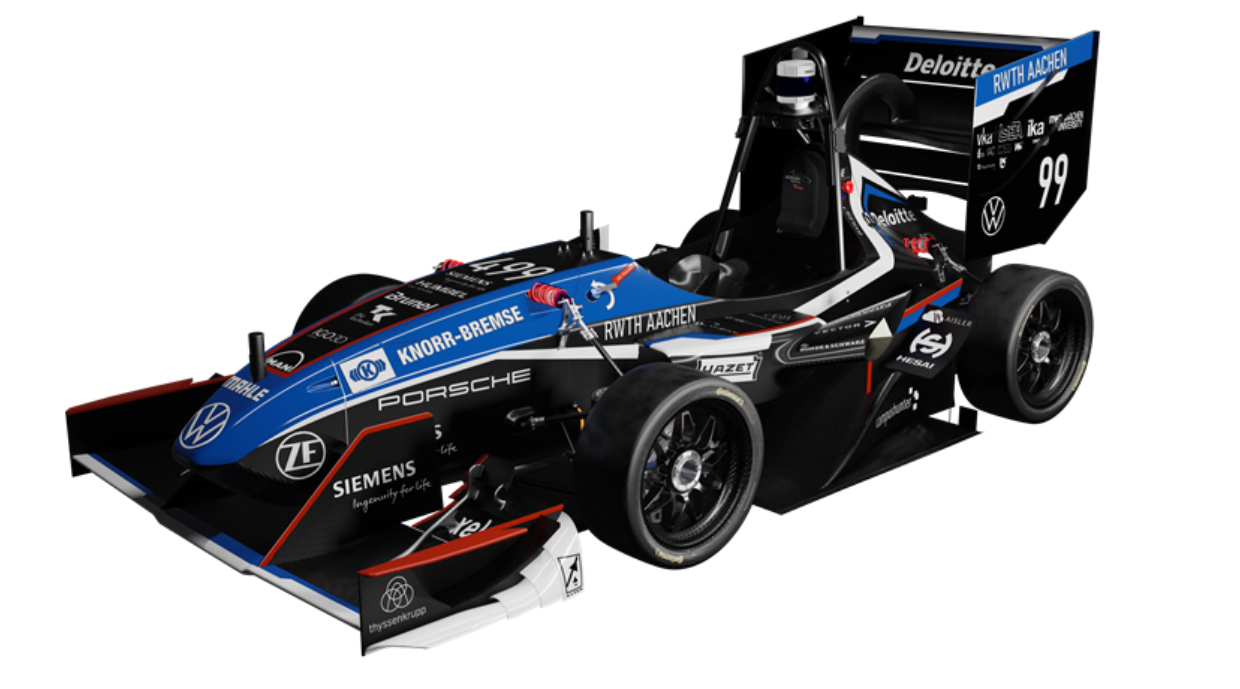

Ecurie Aix is one of the oldest Formula Student Teams in Germany, founded in the year 1999. The team name is derived from the French words "ecurie" meaning racing team and "aix" standing for Aachen. The eace07.d - Rita is our third autonomous racecar and we participate with it at FSG for the second time. Big improvements are a new LiDAR mounting concept, a new CarPC, big updates in our software and several weight reductions.
Engineering Design Priorities:
Software deveploment
Hardware development
Control development
Aerodynamic improvements
Continuous Integration
Car Specifications
General
| Frame Construction | CFRP Sandwich Monocoque |
|---|---|
| Material | Carbon Fibre Prepreg (Woven & UD), Aluminium Honeycomb & Foam Core, CFRP Inserts |
| Overall Length (mm) | 2912 |
| Overall Width (mm) | 1378 |
| Overall Height (mm) | 1094 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 96 |
| Weight Rear (kg) | 121 |
| Suspension | Double A-arm, pushrod, coil springs, KW Damper, Z-ARB |
| Tyres | 205/470 R13 Continental C19 |
| Wheels | 7Jx13, 22mm offset, CFRP/Al Rim |
| Drive Type | 1.5 staged planetary gearbox |
| Differential | n/a |
| Cooling | sidepod mounted radiators |
| Brake System | grinded X46Cr13 disks attached via 4 floaters, ISR Calipers & AP-Racing Cylinders |
| Electronics | self developed BMS and VCU, wiring harness including supply fusing |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | wheel hub mounted |
| Max Motor Power | 32kW |
| Motor Type | AMK / DD5-14-10-POW |
| Max Motor RPM | 20000 |
| Motor Controller | KW26-S5-FSE-4Q |
| Max System Voltage (V) | 600V |
| Electrode Materials | LiCo02 |
| Accumulator Capacity | 7.4 kWh |
| Transmission Ratio Primary | 14.1:1 |
Driverless System
| Processing Units | Ryzen 5 5600X; GIGABYTE RTX 2060 Mini ITX |
|---|---|
| Processing Units FLOPS | 8400 |
| Processing Units Power (W) | 200 |
| Cameras | 3 x Basler acA1440-73gc |
| Radar Sensors | n/a |
| LiDAR Sensors | Hesai Pandar40p (40 layers, range used 40m) |
| Other Sensors | Combined GPS, accelerometer, magnetometer |
2019
Info

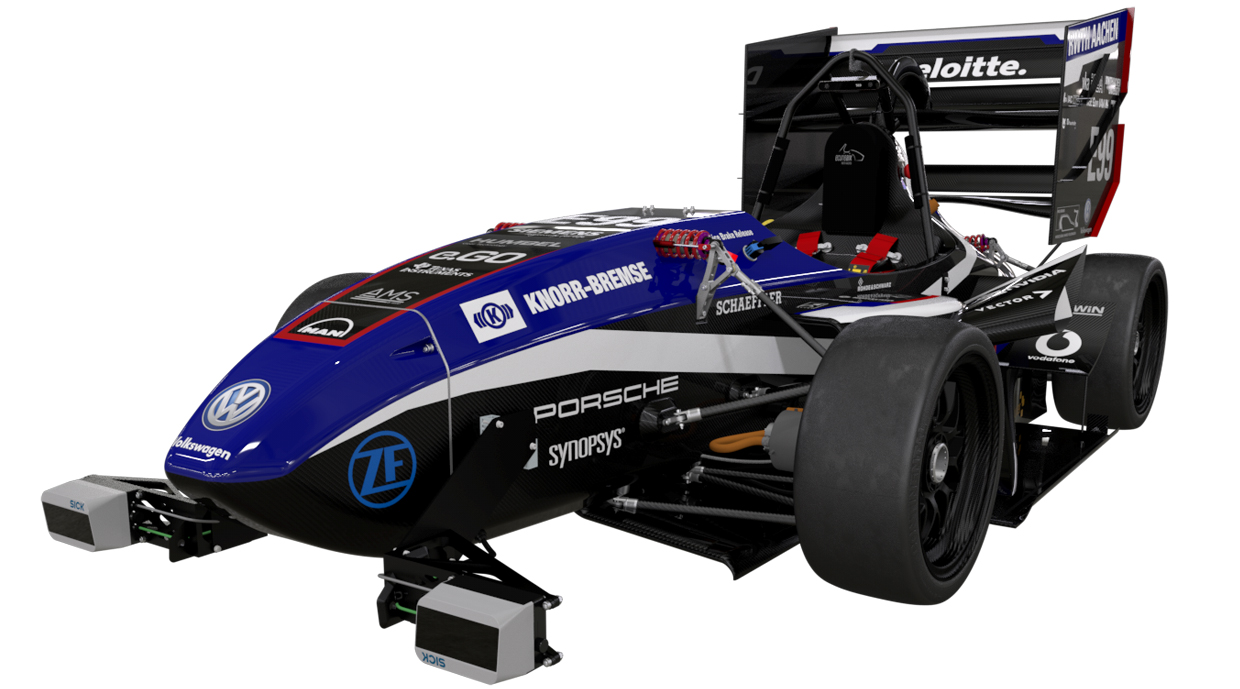

Ecurie Aix is one of the oldest Formula Student Teams in Germany, founded in the year 2000. The team name is derived from the French words ecurie meaning racing team and aix standing for Aachen. Since last season some people might think our name is spoken like "EuciRoix" but it isn't actually.This season is our third season in the driverless class. The focus was to build a reliable and modular car based on our electric vehicle from last season.
Engineering Design Priorities:
Sensor Fusion
Hardware Development
Object Detection
Modularity
Car Specifications
General
| Frame Construction | composite monocoque |
|---|---|
| Material | HTA40 Prepreg, M40J UD Prepreg, Rohacell 51WF foam core, 72kg/m³ 5052 aluminium |
| Overall Length (mm) | 2932 |
| Overall Width (mm) | 1526 |
| Overall Height (mm) | 1126 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 102 |
| Weight Rear (kg) | 129 |
| Suspension | Double A-arm. Pushrod actuated coil spring with KW damper. Z-ARB |
| Tyres | 205/470 R13, Continental C17 / 205/470 R13, Continental C17 |
| Wheels | 7Jx13, 22mm offset, CFRP/Al Rim / 7Jx13, 22mm offset, CFRP/Al Rim |
| Drive Type | 1.5 staged planetary gearbox |
| Differential | none |
| Cooling | Side pod mounted radiators |
| Brake System | 4-Disk system, self developed rotors with 240mm diameter |
| Electronics | Selfdesigned vehicle control unit and Live-Telemetry System, modular LV-System |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Directly at the wheels |
| Max Motor Power | 33kW |
| Motor Type | AMK / DD5-14-10-POW / 18600-B5 |
| Max Motor RPM | 20000 |
| Motor Controller | KW26-S5-FSE-4Q |
| Max System Voltage (V) | 600V |
| Electrode Materials | LiCoO2 |
| Transmission Ratio Primary | 14.152 |
| Transmission Ratio Secondary | none |
Driverless System
| Processing Units | Modular selfdesigned main processing unit with Intel CPU and Nvidia GPU |
|---|---|
| Processing Units FLOPS | 3700 |
| Processing Units Power (W) | 200 |
| Cameras | Stereolabs ZED 3D camera |
| Radar Sensors | none |
| LiDAR Sensors | 2x SICK LD-MRS420201 |
| Other Sensors | IMU and GPS |
| DV System Highlights | Redundant object detection via stereo cameras and LIDAR sensors with sensor fusion. Selfdesigned modular main processing unit. Full onboard localization with optional GPS. |
2018
Info

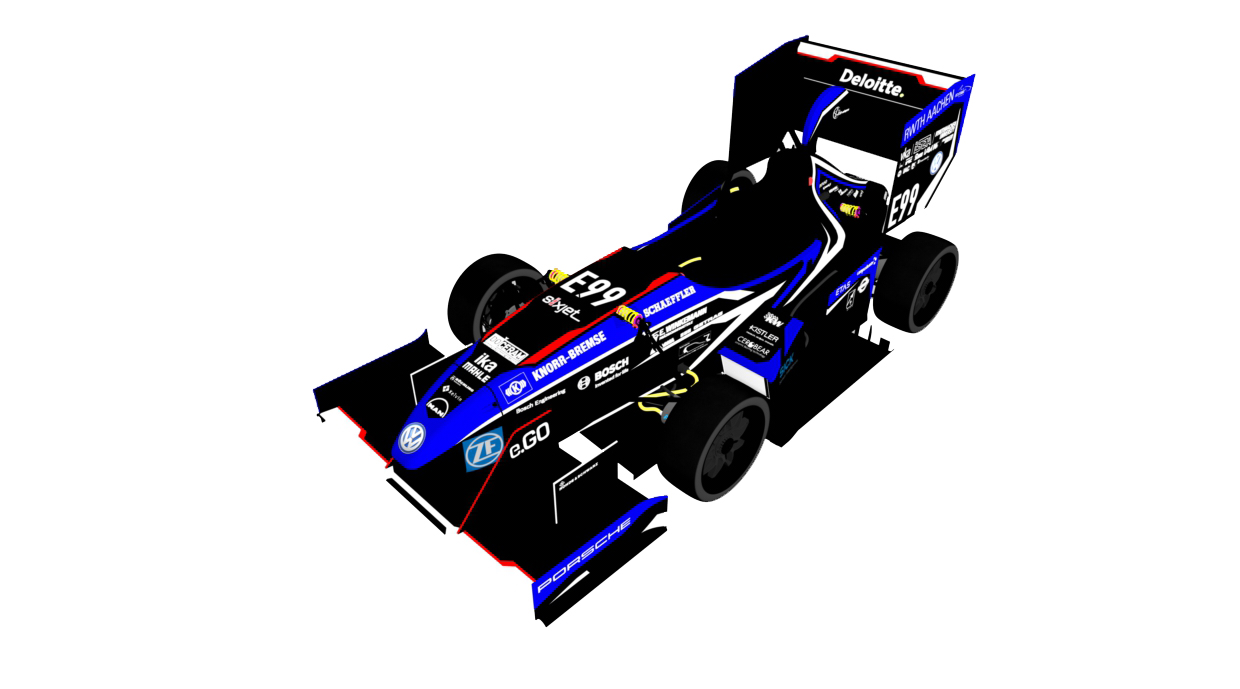

Ecurie Aix is one of the oldest Formula Student Teams in Germany, founded in the year 2000. The team name is derived from the french words ecurie meaning racing team and aix standing for Aachen. Our team has 65 members responsible for building two cars: redesigning one car for the driverless competition and an electric race car. For the year 2018 we chose a new car as basis for our driverless competitor. Additionally to our system from last year, we use two Lidar to detect the environment.
Engineering Design Priorities:
Overall Vehicle Concept
Cooling System
Vehicle Dynamics
DV Software
Car Specifications
General
| Frame Construction | CFRP Monocoque in sandwich construction |
|---|---|
| Material | HTA40 Prepreg, M40J UD Prepreg, Rohacell 51WF foam core, 72kg/m^3 5052 Aluminium |
| Overall Length (mm) | 2932 |
| Overall Width (mm) | 1526 |
| Overall Height (mm) | 1126 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 79 |
| Weight Rear (kg) | 146 |
| Suspension | Double A-arm, pushrod, coil springs, KW damper,Z-Anti-Roll-Bar |
| Tyres | Continental C17 205/470 R13 |
| Wheels | 7J x 13, offset 22mm, self-developed carbon fibre/aluminium |
| Drive Type | 1.5 staged planetary gearbox |
| Differential | electric torque vectoring |
| Cooling | Rear mounted radiator with electric fan/two side pod mounted radiators with electric fans |
| Brake System | 4-Disk system, self-developed rotors with 240mm diameter, adjustable brake balance |
| Electronics | Agilon telemetry system/self developed VCU, Data aquisition units |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | all wheel hubs |
| Max Motor Power | 33 kW |
| Motor Type | PMSM |
| Max Motor RPM | 20000 |
| Motor Controller | KW26-S5-FSE-4Q |
| Max System Voltage (V) | 600V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 7,46 kWh |
| Transmission Ratio Primary | 1:15,27 |
| Transmission Ratio Secondary | - |
Driverless System
| Processing Units | Nvidia Jetson TX2 |
|---|---|
| Processing Units FLOPS | 2072 |
| Processing Units Power (W) | 60 W |
| Cameras | 2x ZED stereocamera, angle: 110 degrees ,range: up to 20m |
| Radar Sensors | none |
| LiDAR Sensors | 2x SICK LD-MRS420201, anlge: 110 degrees, range: up to 300m |
| Other Sensors | Sensonor STIM300 IMU |
| DV System Highlights | Redundant object detection via stereo cameras and LIDAR sensors. Multiple processing units. Full onboard localization with optional GPS. |
2017
Info

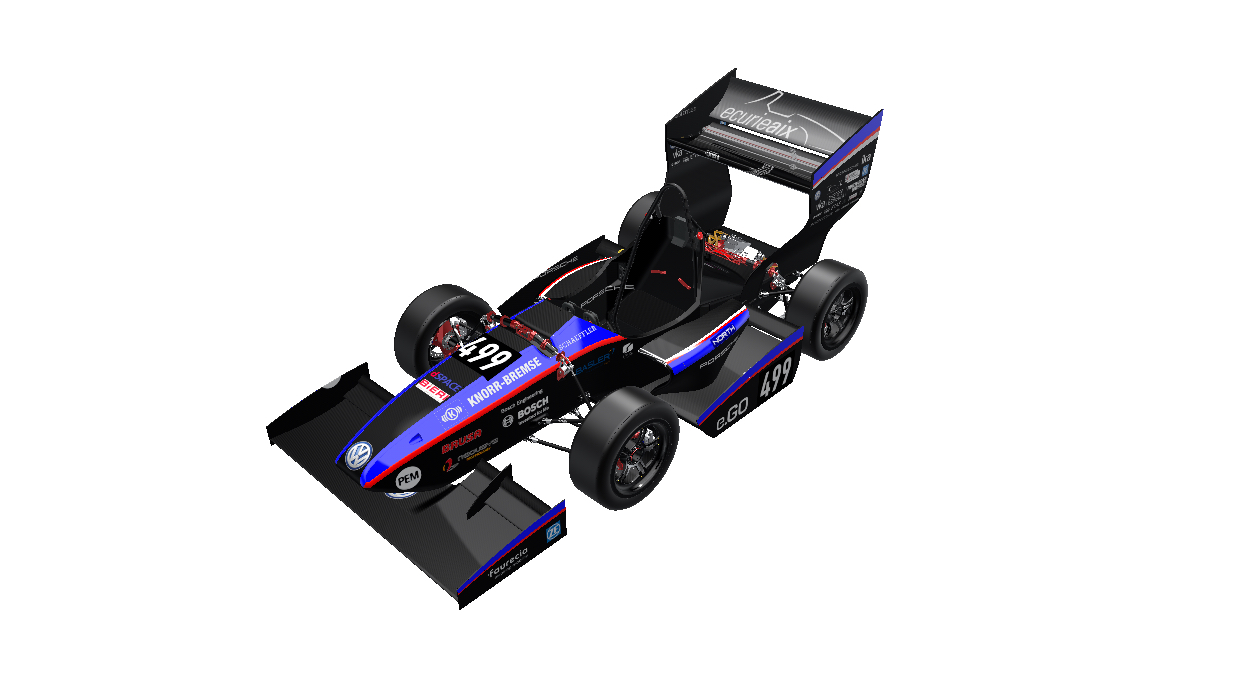

Ecurie Aix is the Formula Student Team of RWTH Aachen University and was founded in 1999. Since then, the team has designed and built 10 cars with IC engines and 6 with electric engines and one driverless car. With our current car, the eace04.d aka "Maren" (converted old electric car from 2015), we participate in the Formula Student competition at Hockenheim.
Engineering Design Priorities:
Reliability
Competitiveness
Car Specifications
General
| Frame Construction | Two Piece CFRP Frame |
|---|---|
| Material | Rohacell and aluminium honeycomb sandwich |
| Overall Length (mm) | 2980 |
| Overall Width (mm) | 1380 |
| Overall Height (mm) | 1175 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 125 |
| Weight Rear (kg) | 151 |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper |
| Tyres | Hoosier R25B 205x70 R13 |
| Wheels | 7x13, -25mm offset, Al Rim |
| Drive Type | planetary gear set |
| Differential | n/a |
| Cooling | sidepod mounted radiotor |
| Brake System | 42CrMo4 Laser Cut, floating, outer 240mm hub mount, adjustable brake balance |
| Electronics | selfdesigned BMS |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear |
| Max Motor Power | 42kW each |
| Motor Type | permanent excited transversal flux synchron |
| Max Motor RPM | 10.000 |
| Motor Controller | DYNACONTROL® 500e |
| Max System Voltage (V) | 403V |
| Electrode Materials | Li-Ion |
| Accumulator Capacity | 6.7kWh |
| Transmission Ratio Primary | 1:6.39 |
| Transmission Ratio Secondary | - |
Driverless System
| Processing Units | Neousys Car PC |
|---|---|
| Processing Units FLOPS | 2064 |
| Processing Units Power (W) | 160 |
| Cameras | 2x Stereolabs ZED camera |
| Radar Sensors | n/a |
| LiDAR Sensors | n/a |
| Other Sensors | IMU, wheel speed sensor, (odometer), RTK GPS |
| DV System Highlights | For perception we are only using two stereocameras, no Lidar. Detection is done via a neural network. Actuation of the steering is realized with a servomotor, actuation of the brake system is hydraulic. |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | DV SP | DV AC | AX | EN | EF | Pe | Total | Engine |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 42 |
10. |
- |
- |
5. |
2. |
7. |
- |
- |
- |
0.00 |
252.08 |
||
| 2025.08 | 24 |
5. |
- |
- |
6. |
4. |
1. |
5. |
- |
- |
0.00 |
486.74 |
||
| 2024.08 | 27 |
11. |
- |
- |
3. |
- |
- |
- |
- |
- |
0.00 |
130.00 |
||
| 2024.08 | 13 |
8. |
5. |
7. |
6. |
- |
6. |
- |
- |
- |
0.00 |
402.05 |
||
| 2023.08 | 30 |
14. |
- |
- |
5. |
- |
- |
- |
- |
- |
0.00 |
115.00 |
||
| 2023.08 | 22 |
10. |
1. |
1. |
2. |
- |
- |
- |
- |
- |
-40.00 |
417.00 |
||
| 2022.08 | 19 |
8. |
- |
- |
4. |
- |
- |
- |
- |
- |
0.00 |
135.00 |
||
| 2022.08 | 22 |
10. |
1. |
1. |
10. |
- |
- |
- |
- |
- |
0.00 |
396.00 |
||
| 2021.10 | 6 |
2. |
2. |
5. |
4. |
1. |
1. |
1. |
1. |
- |
0.00 |
907.18 |
||
| 2021.08 | 17 |
4. |
1. |
11. |
5. |
- |
- |
- |
3. |
2. |
0.00 |
505.39 |
||
| 2021.08 | 12 |
3. |
1. |
9. |
7. |
- |
3. |
3. |
3. |
- |
0.00 |
481.10 |
||
| 2019.08 | 20 |
7. |
3. |
6. |
8. |
- |
- |
- |
- |
- |
-15.00 |
325.93 |
||
| 2019.07 | 8 |
3. |
3. |
4. |
3. |
- |
- |
- |
2. |
- |
0.00 |
380.82 |
||
| 2019.07 | 14 |
9. |
1. |
8. |
9. |
- |
- |
- |
- |
- |
0.00 |
369.80 |
||
| 2018.08 | 17 |
9. |
9. |
11. |
8. |
- |
- |
- |
- |
- |
-26.00 |
255.69 |
||
| 2017.08 | 15 |
10. |
5. |
14. |
5. |
- |
- |
- |
- |
- |
-69.00 |
255.46 |
||
| x 16 | ||||||||||||||
