Team Details
Formula Student Oulu
| University | University of Oulu
FI Oulu U short 1055 |
 |
|---|---|---|
| Location | Oulu, Finland | |
| Homepage | https://fsoulu.fi | |
| Social Media |

|
|
| Short Link | tid.fsg.one/817 | |
Team Description
Founded in 2013, FSO is the World's Northernmost FS Team.
Event Profile
Past Events
2023
Info

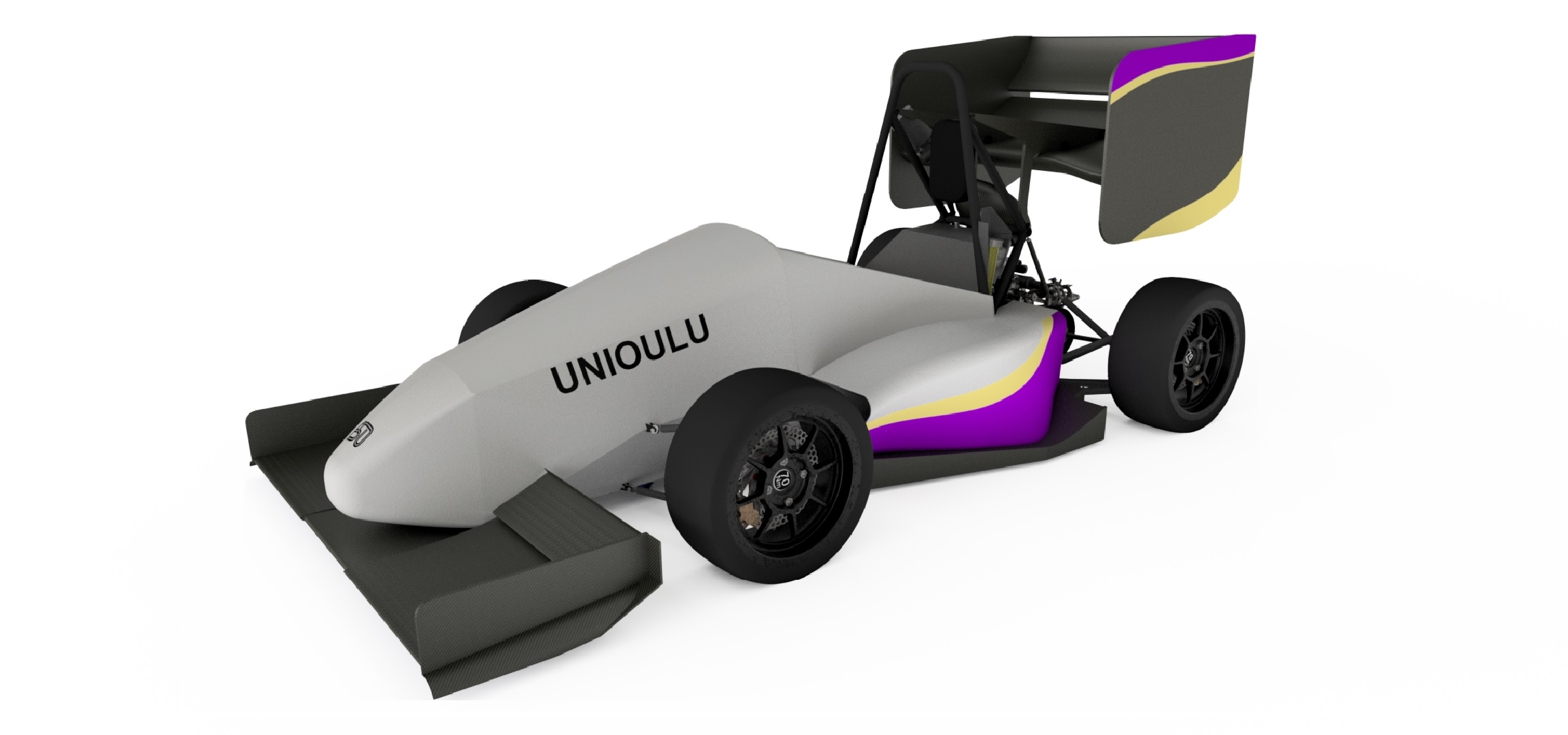

Formula Student Oulu is a team of 60 students from University of Oulu. The team was founded in 2013 making this the ten year anniversary. This year’s car, M04, is the culmination of the experience and skills gathered during the team’s tenure thus far. The design process with this car focused on maximizing the power-to-weight ratio with the lightest frame in the team’s history. That was achieved while also improving handling with innovative solutions in aero and suspension. Oppiipaha!
Engineering Design Priorities:
soiro
oppiipaha
gaas
YhteysOnSaatu
KapseliToimii
oispakaljaa
Car Specifications
General
| Frame Construction | Tubular steel space frame with CFRP reinforcement |
|---|---|
| Material | SSAB form 320 |
| Overall Length (mm) | 2850 |
| Overall Width (mm) | 1420 |
| Overall Height (mm) | 1180 |
| Wheelbase (mm) | 1525 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 175 |
| Weight Rear (kg) | 243 |
| Suspension | Pullrod actuated mode separated inboard suspension with roll and heave springs and dampers |
| Tyres | Hoosier 205/470 R13 / Hoosier 205/470 R13 |
| Wheels | 7x13, 30mm offset, 1 pc Mg / 7x13, 30mm offset, 1 pc Mg |
| Drive Type | Chain drive |
| Differential | Drexler limited-slip differential |
| Cooling | Side mounted radiator with custom cooling fan |
| Brake System | 4-disk system, 2 piston front and 1 piston rear calipers |
| Electronics | Custom wiring harness with datalogging. Electronic clutch and pneumatic shifter control. |
Powertrain
| Engine | Yamaha MT07 |
|---|---|
| Bore (mm) | 80.0 |
| Stroke (mm) | 68.6 |
| Cylinders | 2 |
| Displacement (ccm) | 689 |
| Compression Ratio | 11,5:1 |
| Fuel System | MaxxECU-controlled sequential port injection |
| Fuel | 98 octane unleaded gasoline |
| Max Power (kW) | 8500 |
| Max Torque (Nm) | 7000 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 15 |
2. |
12. |
13. |
13. |
2. |
- |
2. |
- |
4. |
1. |
1. |
0.00 |
816.67 |
|
| 2025.08 | 8 |
1. |
3. |
3. |
4. |
1. |
- |
1. |
- |
1. |
1. |
3. |
0.00 |
804.00 |
|
| 2024.07 | 20 |
6. |
10. |
17. |
16. |
6. |
- |
4. |
- |
12. |
6. |
4. |
0.00 |
557.50 |
|
| 2023.08 | 27 |
8. |
27. |
22. |
14. |
13. |
- |
2. |
- |
14. |
5. |
- |
0.00 |
382.20 |
|
| 2023.08 | 15 |
8. |
13. |
10. |
6. |
3. |
- |
2. |
- |
7. |
- |
- |
-5.00 |
362.59 |
|
| 2022.07 | 24 |
21. |
23. |
24. |
23. |
18. |
- |
11. |
- |
16. |
9. |
- |
0.00 |
185.90 |
|
| 2019.08 | 34 |
10. |
19. |
26. |
29. |
19. |
- |
6. |
- |
20. |
9. |
5. |
0.00 |
415.80 |
|
| x 7 | |||||||||||||||
