Team Details

BA Motors

University	Berlin School of Economics DE Berlin UCE short 73
Location	Berlin, Germany
EV Team	Combined University Racing Berlin
Short Link	tid.fsg.one/76

Team Description

German:
Eine Vision. Ein Team. Die Formula Student Germany. 40 Studierende aus den Studiengängen Maschinenbau, Elektronische Systeme, Wirtschaftsinformatik, Wirtschaftsingenieurwesen und Betriebswirtschaft verfolgen auch in der Saison 2011/2012 wieder ein gemeinsames Ziel: unser Rennbolide Moto12! Mit unserem in Eigenarbeit geplanten, gebauten und finanzierten Leichtrennwagen werden wir auch dieses Mal am Hockenheimring mit dabei sein, wenn bei der Formula Student Germany, einem internationalen Studentenwettbewerb, die Teams gegeneinander antreten.

English:
A vision. A team. The Formula Student Germany. 40 students from the courses of study mechanical engineering, electronic systems, business computer science and business to pursue in the 2011/2012 season again a common goal: our race car Moto12! With our in-house work planned, built and financed lightweight race car, we are in the season 2012 there when it gets hot in the Formula Student again.

Event Profile

Past Events

2008

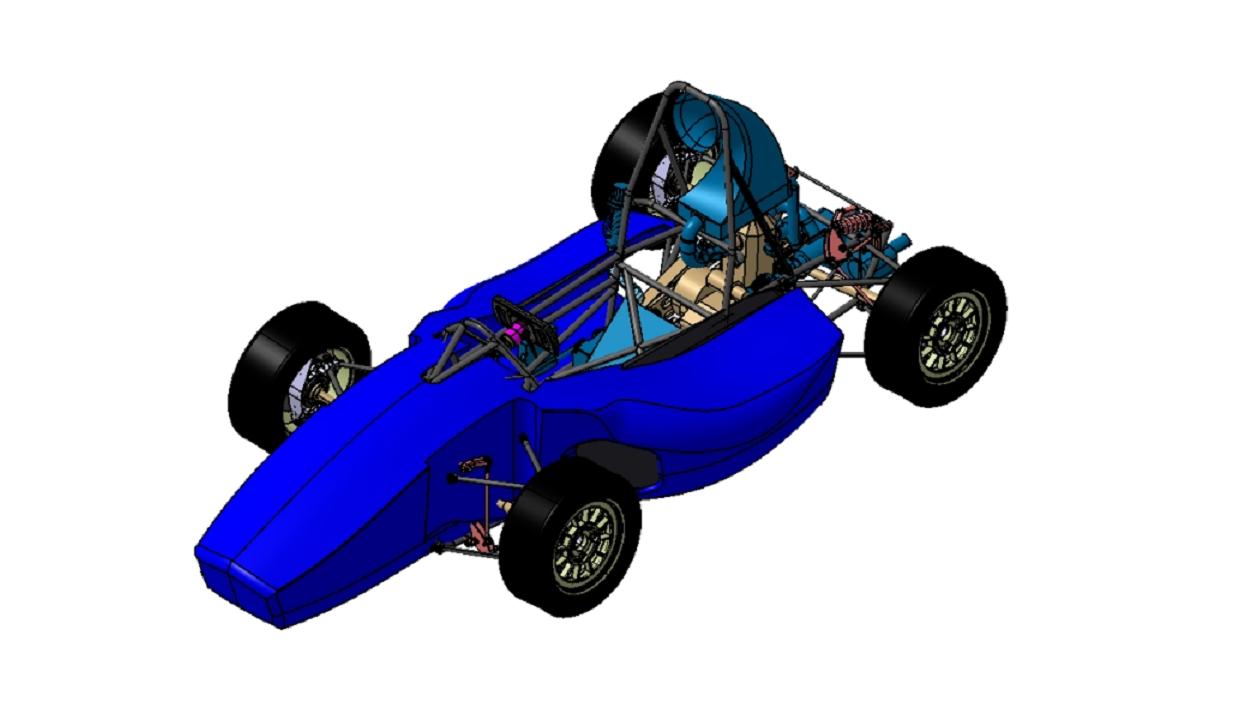

Car #20

Info

The moto8 is the second racecar of the Berufsakademie Berlin (Berlin School of Economics). This year the unusual concept idea of the first vehicle is continued and presented at the Formula student in more optimized and still higher performance version.Of course the BA-Motors team remains with the brand label all-wheel drive and 1-cylinder-turboengine, since this system is combined optimal with a fully developed chassis optimized to a track full of curves and straights to accelerate.

Car Specifications

General

Frame Construction	Tubular space frame
Material	E355 round tubing 25x2,5mm; 25x2mm; 10x2mm
Overall Length (mm)	2840
Overall Width (mm)	1427
Overall Height (mm)	1115
Wheelbase (mm)	1650
Track Front (mm)	1250
Track Rear (mm)	1250
Weight Front (kg)	130
Weight Rear (kg)	168
Suspension	Double equal/unequal(fr,rr) length A-Arm. Pull/Push Rod (ff/rr) actuated horizontally spring and damper
Tyres	16/53-13, Michelin S6B
Wheels	BBS 6.5x13, 17,15mm offset, 3 pc Al/Mg Rim
Drive Type	chain drive 4 whell drive
Differential	3 Torsen limited slip, 1:3 bias ratio
Cooling	right mounted cooler with fan
Brake System	Floating, Cast Iron, 205 mm Dia hub mounted front , 254mm Dia differential mounted rear
Electronics	semi automaticly pneumatical actuated shifter, switches on steering wheel;student build steering wheel mounted LED-display speed/t

Powertrain

Engine	2003 KTM-LC4-1 cylinder, modified
Bore (mm)	101
Stroke (mm)	76
Cylinders	1
Displacement (ccm)	609
Compression Ratio	9:1
Fuel System	Student designed/built ,fuel injection, sequential
Fuel	E-85 ethanol

2007

Car #20

No media information available for this year.

Car Specifications
