Team Details

Polimarche Racing Team

University	Marche Polytechnic University IT Ancon U short 910
Location	Ancon, Italy
Social Media
EV Team	Polimarche Racing Team
Short Link	tid.fsg.one/730

Team Description

The career of Polimarche Racing Team, Formula SAE team of Università Politecnica delle Marche, began in November 2013. Our team members worked with technical excellence for the realization of our car. The design and the success reached in our very first year with the first prototype, the Peacock One, is an example of our common passion. Using the most advanced engineering tools and the sophisticated machineries of our University and of our Sponsors, our cars have always given the input to strive for excellence in all aspect. With the loyal support of our Sponsors and Technical Partners, we try to push our cars over the limit, aiming to be the top among our competitors, developing new and more performant solutions.
Which will be the challenges ahead; from the aerodynamics to driver fitness, our resounding answer to them all is that nothing short of the best will do...
We will present you for the first time the Peacock 4M, our game changer.

Event Profile

Past Events

2019

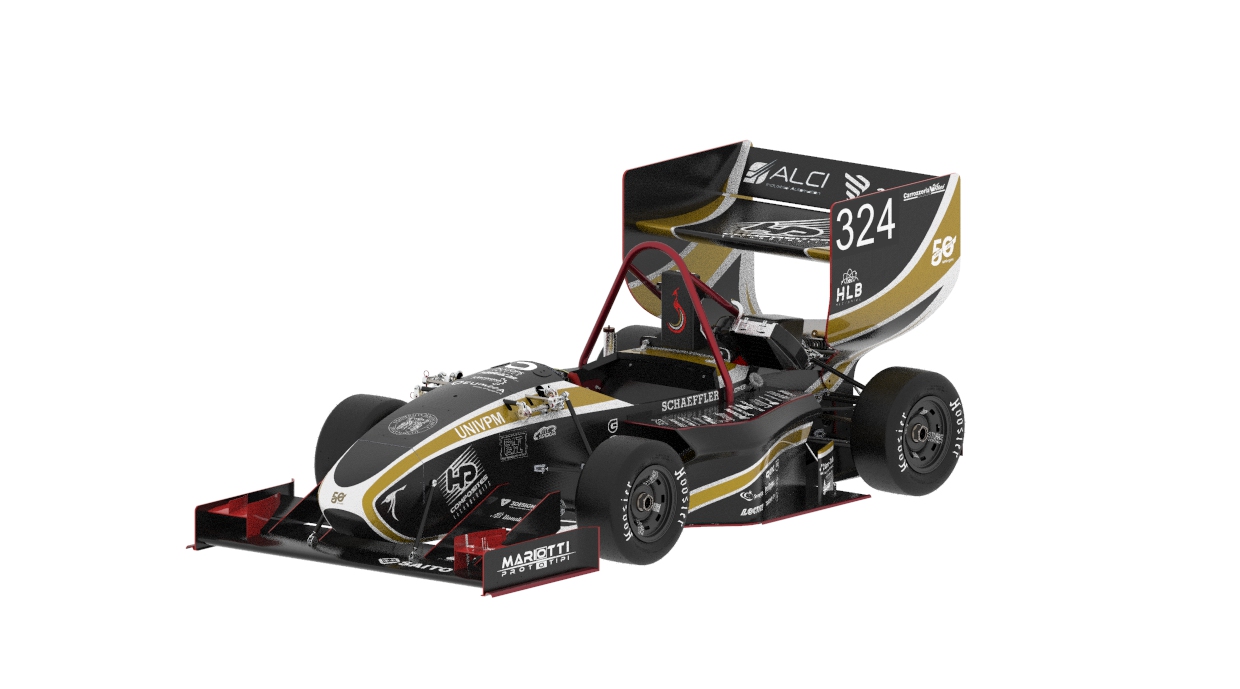

Car #324

Info

Polimarche was born in 2013, inside Università Politecnica delle Marche. We are not just a 60 people team driven by passion, but a family of industrial and information engineering and economics students. Do you like compromises? We don't think so, take a look at the specs of Peacock 4M. It's the game changer, our masterpiece. A full monococque carbon fiber that embraces a powerful Ktm lc-4 turbo engine,a sophisticated Aero and Suspension package. Small weight, dream big. #keeppushing #P4M

Engineering Design Priorities:

Performance Ligthweight Reliability Cost control Teamwork Fun

Car Specifications

General

Frame Construction	Carbon fiber monocoque (sandwich structure) and steel tube for hoops
Material	Carbon fiber Twill T700 600gr and 200 gr,Aluminium honeycomb 5052 1/8'' 20 mm.
Overall Length (mm)	3033
Overall Width (mm)	1422
Overall Height (mm)	1100
Wheelbase (mm)	1600
Track Front (mm)	1200
Track Rear (mm)	1200
Weight Front (kg)	130
Weight Rear (kg)	138
Suspension	Double unequal length A-Arm. Push rod actuated Anti Roll bar (U-bar)
Tyres	16'' x 7.5'' - 10'' Hoosier R25B
Wheels	7'' x 10'', ET +23 mm, 4 Flat Nut Al Rim
Drive Type	KTM gearbox/Chain 520/aluminium sprocket
Differential	limited slip differential no preload, with 3 configuration
Cooling	Water and oil radiators in each sidepod, with water cooling electric fan
Brake System	Floating rotors,188mm dia. Front caliper Brembo 4p, rear AP 2p, adjustable brake balance
Electronics	HighspeedCAN 2.0 B-1Mbit/s,Multifuncional SteeringWheel,TelemetryGPS 2.4GHz streaming WLAN

Powertrain

Engine	Turbocharged KTM 690 LC4 2013/2014
Bore (mm)	102
Stroke (mm)	84.5
Cylinders	1
Displacement (ccm)	690
Compression Ratio	10:1
Fuel System	Indirect injection, two parallel injectors in front of engine
Fuel	98 octane unleaded gasoline
Max Power (kW)	8000
Max Torque (Nm)	5000
