Per May 2010, the Racetech Racing Team introduced its fourth racecar to the public. 45 students were involved in the design of the RT04. The overall design strategy was to gain stiffness and power while saving weight. All parts within the suspension assembly where designed with the help of CAE-tools, while greater focus was laid on kinematic issues. The body shell is made of magnesium sheets as a unique and reasonable feature within the Formula Student. Intense simulation and validation activities around the engine unit lead to increased power. The drivetrain is based on self designed tripod joint shafts, using electron beam technology for joining and hardening. To ease up the handling of all electronic devices, they were modularized through the help of CAN Bus technology. A Live-Telemetry System is installed and helps to survey the cars performance. We are looking forward to a great competition and discussing our solutions with judges and competing teams.

Event Profile

Past Events

2011

Car #76

Info

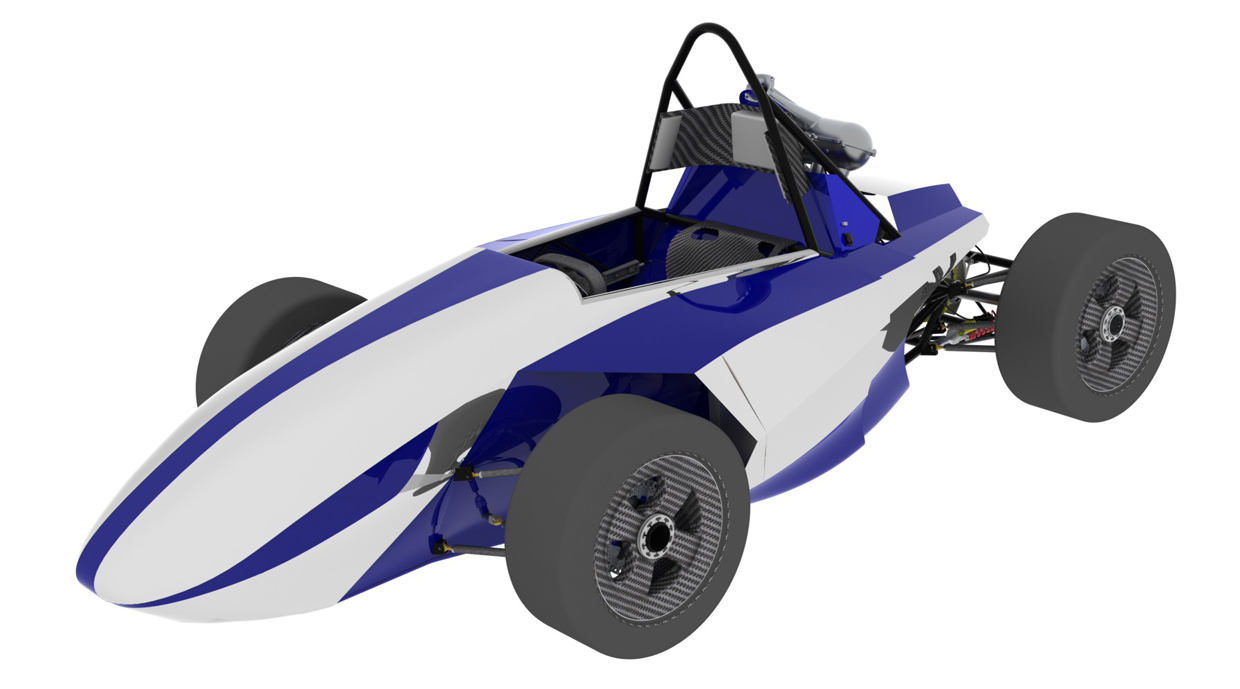

The Racetech Racing Team proudly presents its new racing car RTo5. After four increasingly succeeding racecars since 2005, great expectations laid on the new very young team of the race smithy from Freiberg. The season began with 38 students and promising ambitions. We modified the camshaft and developed a new gearbox that perfectly matches the requirements of Formula Student competitions. Furthermore we are racing with one of the lightest carbon fibre rims of the FS worldwide. Another great development was the simulation of the wiring harness in a 3D CAD system allowing the manufacturing of the harness independently to the racecar. Our drive train is based on self designed tripod joint shafts joined and hardened by an electron beam technology. Completed by our unique silvery shining body shell made of magnesium sheets we are entering the competition with a weight reduction of almost 20 kg. Our team is looking forward to compete at this year’s FS Germany with the new racecar RTo5.

Car Specifications

General

Frame Construction	tubular space frame
Material	4130 steel round tubing 12 mm to 25 mm dia
Overall Length (mm)	2700
Overall Width (mm)	1447
Overall Height (mm)	1067
Wheelbase (mm)	1560
Track Front (mm)	1240
Track Rear (mm)	1220
Weight Front (kg)	132
Weight Rear (kg)	143
Suspension	double unequal length A-Arm. Pull rod actuated horizontally & longitudinally oriented spring &damper
Tyres	205x7.0-13, Hoosier R25B / 205x7.0-13, Hoosier R25B
Wheels	7x13, 34 mm offset, carbon rim / 7x13, 34 mm offset, carbon rim
Drive Type	chaindrive with 520-chain
Differential	limited slip differential from Drexler, 25 Nm preload, bias ratio 3:1
Cooling	divided oil and water cooling system, position in side pods, thermal control
Brake System	4-disk system, self developed rotors with 203 mm diameter, adjustable break balance, ISR calipers
Electronics	launch control, map switch, traction control, pedal or automatic shifting, W-LAN telemetry system

Powertrain

Engine	2005 Honda CBR 600 RP (PC37)
Bore (mm)	67.0
Stroke (mm)	42.5
Cylinders	4
Displacement (ccm)	599
Compression Ratio	12,9:1
Fuel System	student built fuel tank, sequential fuel injection, twin spray injection valves
Fuel	98 octane unleaded gasoline
Max Power (kW)	10000
Max Torque (Nm)	9000

2010

Car #76

Info

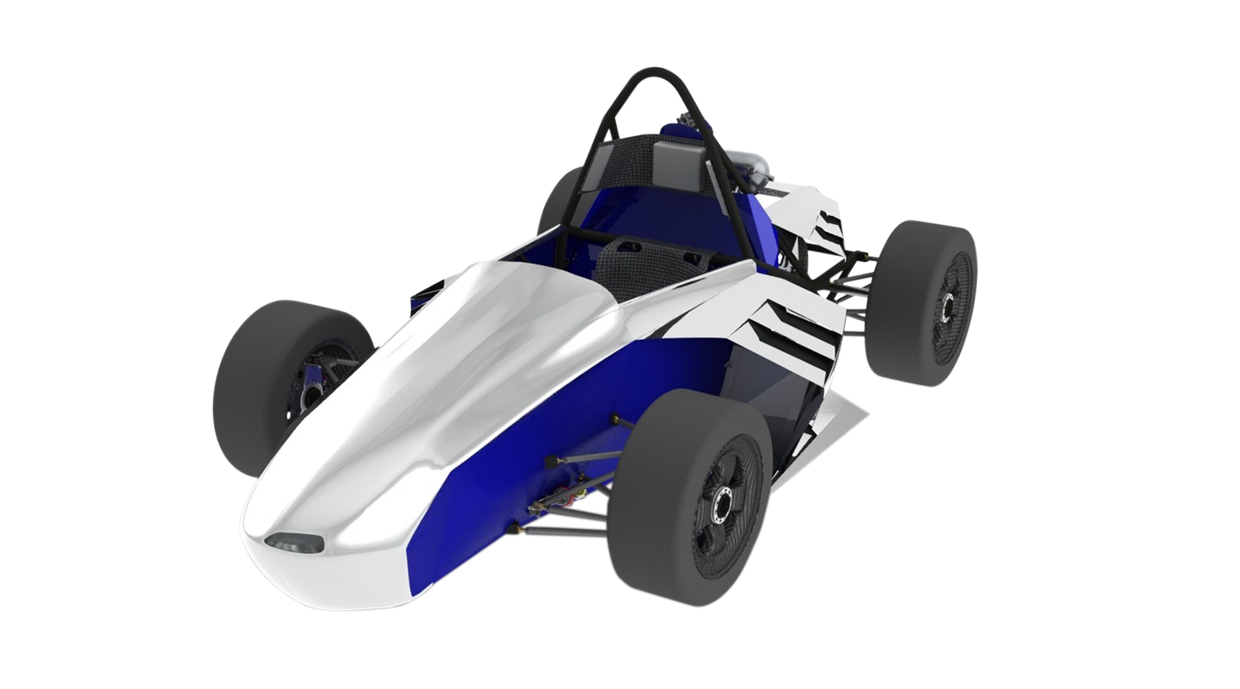

Per May 2010, the Racetech Racing Team introduced its fourth racecar to the public. 45 students were involved in the design of the RT04. The overall design strategy was to gain stiffness and power while saving weight. All parts within the suspension assembly where designed with the help of CAE-tools, while greater focus was laid on kinematic issues. The body shell is made of magnesium sheets as a unique and reasonable feature within the Formula Student. Intense simulation and validation activities around the engine unit lead to increased power. The drivetrain is based on self designed tripod joint shafts, using electron beam technology for joining and hardening. To ease up the handling of all electronic devices, they were modularized through the help of CAN Bus technology. A Live-Telemetry System is installed and helps to survey the cars performance. We are looking forward to a great competition and discussing our solutions with judges and competing teams.

Car Specifications

General

Frame Construction	tubular Spaceframe
Material	25CrMo4 steel, round tubing, 12 to 30mm in diameter
Overall Length (mm)	2715
Overall Width (mm)	1420
Overall Height (mm)	1070
Wheelbase (mm)	1600
Track Front (mm)	1240
Track Rear (mm)	1200
Weight Front (kg)	144
Weight Rear (kg)	144
Suspension	double unequal length A-Arms. Pull rod actuated spring-damper unit (Ohlins TTX 25)
Tyres	20.5x7.0-13, Hoosier R25B
Wheels	20.5x7.0-13, Hoosier R25B
Drive Type	525-chain
Differential	Drexler Formula Student, 25Nm preload
Cooling	single side pod mounted radiator with pwm-regulated fan
Brake System	4-disc system, brake bias electronically adjustable, Tilton mastercylinders, ISR calipers
Electronics	Multifunctional Steering Wheel, Traction Control, CAN Bus, electropneumatic shifting, Live-Telemetry

Powertrain

Engine	2006 Honda CBR600RR (PC 37)
Bore (mm)	67
Stroke (mm)	42,5
Cylinders	4
Displacement (ccm)	599
Compression Ratio	12,2:1
Fuel System	sequential intake tube injection
Fuel	98 octane unleaded gasoline
Max Power (kW)	10500
Max Torque (Nm)	9500

2009

Car #76

Info

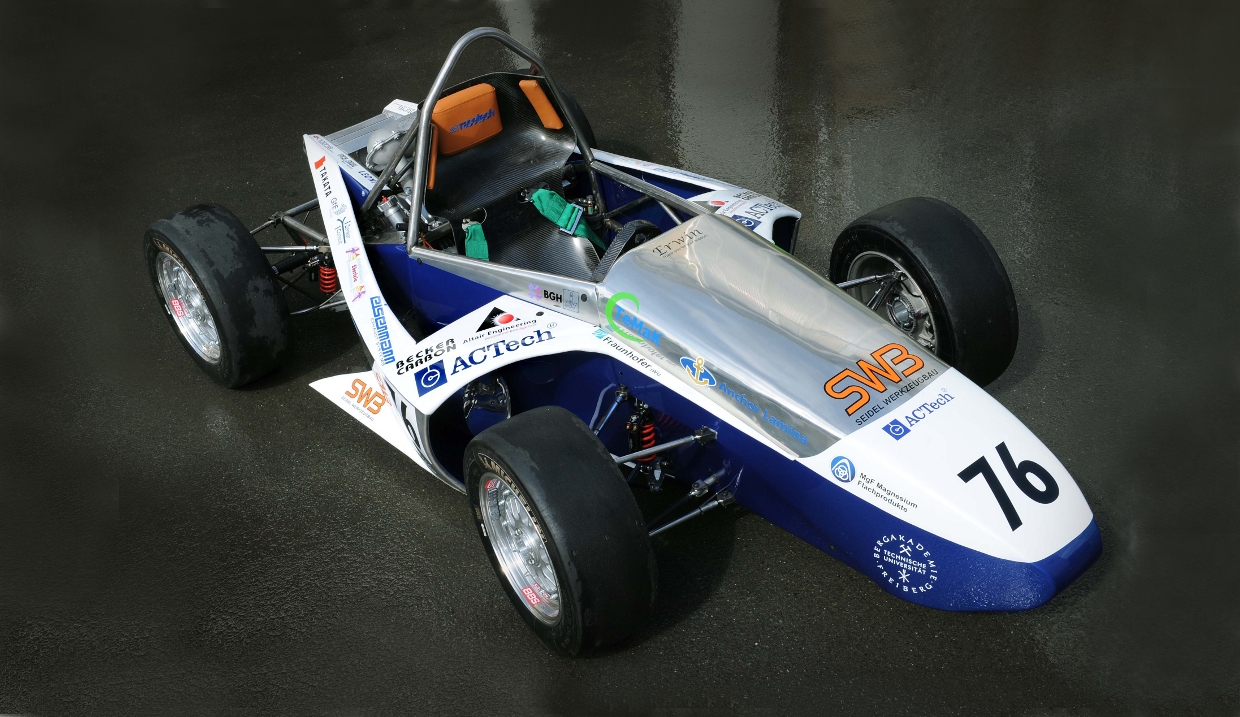

RT03 is the latest achievement of the Racetech Racing Team TU Bergakademie Freiberg – our new racecar surrounded by the one and only magnesium body shell worldwide. The actual development status is a merit of 3 teams’ efforts with lots of challenges: At the beginning there was only a union of students to build the idea of a driving-ready racer. After 1 year of hard work we managed to push our roadworthy RT01 in start position at FSG2007. Next step was to evaluate the experiences of the first racecar and to improve the master plan. The result became the RT02, our second bolide, with which we did a really better job at FSG2008 in many aspects. Additionally the award for the best prepared car for scrutineering approved the good manufacturing of all its parts. Today our team counts 45 motivated students. Our main focus lies more and more on the intelligent use of a materials mixture consisting of high end aluminium- and steel-alloys besides composite materials and especially magnesium.

Car Specifications

General

Frame Construction	Tubular steel frame
Material	Steel 25CrMo4
Overall Length (mm)	2600
Overall Width (mm)	1420
Overall Height (mm)	1005
Wheelbase (mm)	1652
Track Front (mm)	1240
Track Rear (mm)	1200
Weight Front (kg)	143
Weight Rear (kg)	175
Suspension	Double unequal length a-arms, pull rod actuated vertically oriented CaneCreek Double Barrel spring and damper
Tyres	20.5x7.0x13 Hoosier R25B C2500
Wheels	7.0x13 self-made one piece carbon rim
Drive Type	DID 520 chaindrive
Differential	Drexler Formula Student, 25Nm preload
Cooling	Single side pod mounted radiators with electric fans
Brake System	4 disk, floating, self-designed hub mounted rotors, 220mm diameter, adjustable brake balance
Electronics	Multifunctional steering wheel with touch-display, electropneumatic shifting system, selfdesigned live-telemetry system

Powertrain

Engine	Honda CBR600RR (PC37)
Bore (mm)	67.0
Stroke (mm)	42.5
Cylinders	4
Displacement (ccm)	599
Compression Ratio	12.0:1
Fuel System	Student designed fuel injection, sequential
Fuel	100 octane unleaded gasoline
Max Power (kW)	11000
Max Torque (Nm)	10000

2008

Car #76

Info

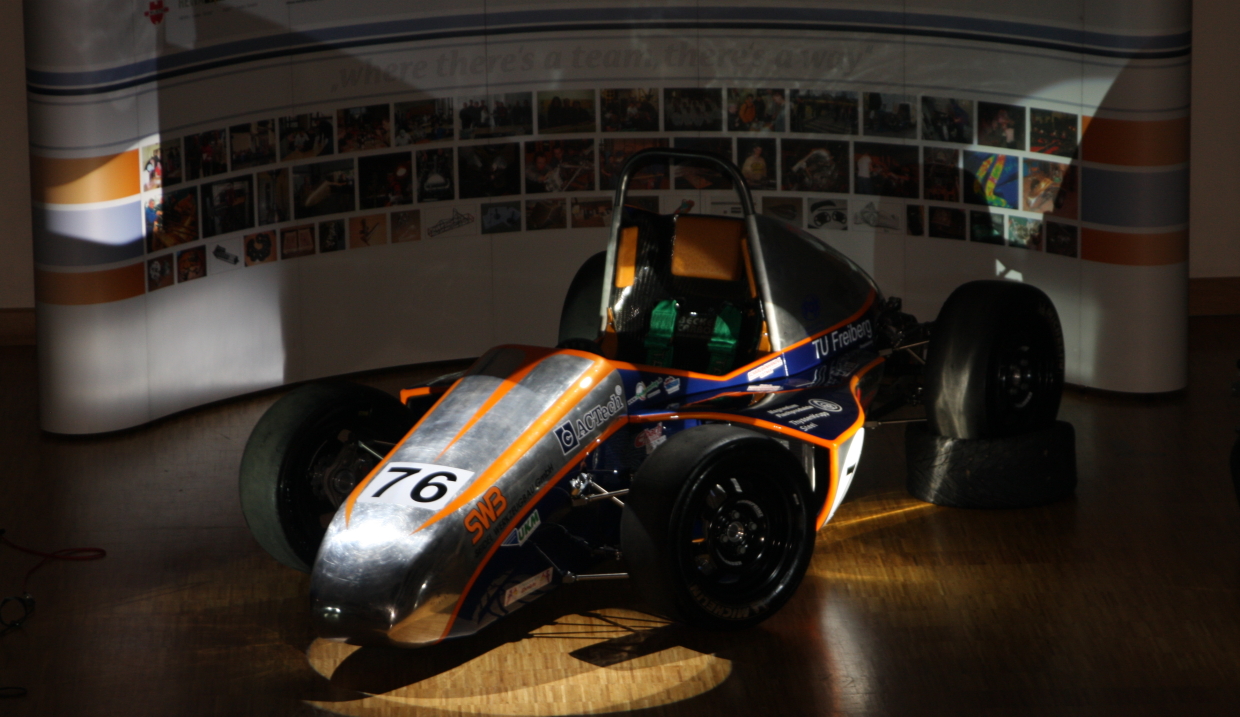

At beginning there were a union of students to build the idea to regulate a driving-ready racer. So the Racetech Racing Team TU Freiberg e.V. was founded on 20th of April, 2005 with the discharge of our statute. Since then we can exist regardless of the university and operate independently.After 1 year of hard work we attended to Formula Student Germany 2007. Although our RT01 did not go on overtaking lane at first time we were very proud of our achievement building an exceeding race car.Today our team passes approximately 34 motivated students, which study vehicle construction, mechanical engineering, economic engineering, geotechnics and many other subjects. Meanwhile with our many-sided knowledge we have improved and developed our RT02. The team’s main focus is lying on high end materials and its production technologies such as magnesium-, aluminium- and steel- castings besides composite materials.We would like to thank our University, our Sponsors but especially our Families.

Car Specifications

General

Frame Construction	Tubular steel frame
Material	25CrMo4 steel, round and square tubing, 16mm to 30mm diameter or side length
Overall Length (mm)	3030
Overall Width (mm)	1440
Overall Height (mm)	1075
Wheelbase (mm)	1700
Track Front (mm)	1240
Track Rear (mm)	1240
Weight Front (kg)	145
Weight Rear (kg)	178
Suspension	Double unequal length A-Arm. Push rod actuated horizontally oriented Cane Creek Double Barrel spring and damper
Tyres	20.0x7.0 R13, Avon A15 / 20.0x7.0 R13, Avon A15
Wheels	7.0x13, 57mm offset, 2 pc Steel Rim / 7.0x13, 57mm offset, 2 pc Steel Rim
Drive Type	DID 525 chaindrive
Differential	Drexler Formula Student, 25 Nm preload
Cooling	single side pod mounted radiators with electric fans
Brake System	4-discs, self designed floating rotors with 220mm diameter, adjustable brake balance, front/rear AP-Racing 4/2 piston calipers
Electronics	multifunctional display for status infos, electromagnetic shifting system, infrared fuel level sensor

Powertrain

Engine	2003 Honda PC37
Bore (mm)	67.0
Stroke (mm)	42.5
Cylinders	4
Displacement (ccm)	599
Compression Ratio	12.0:1
Fuel System	Student des/built ,fuel injection, sequential
Fuel	100 octane unleaded gasoline
Max Power (kW)	11000
Max Torque (Nm)	10000

2007

Car #85

No media information available for this year.
