Team Details
YTU Racing
| University | Yıldız Technical University
TR Istanbul YTU short 899 |
 |
|---|---|---|
| Location | Istanbul, Türkiye | |
| Homepage | https://www.yturacing.com/ | |
| Social Media |

|
|
| EV Team | YTU Racing | |
| Short Link | tid.fsg.one/691 | |
Event Profile
Past Events

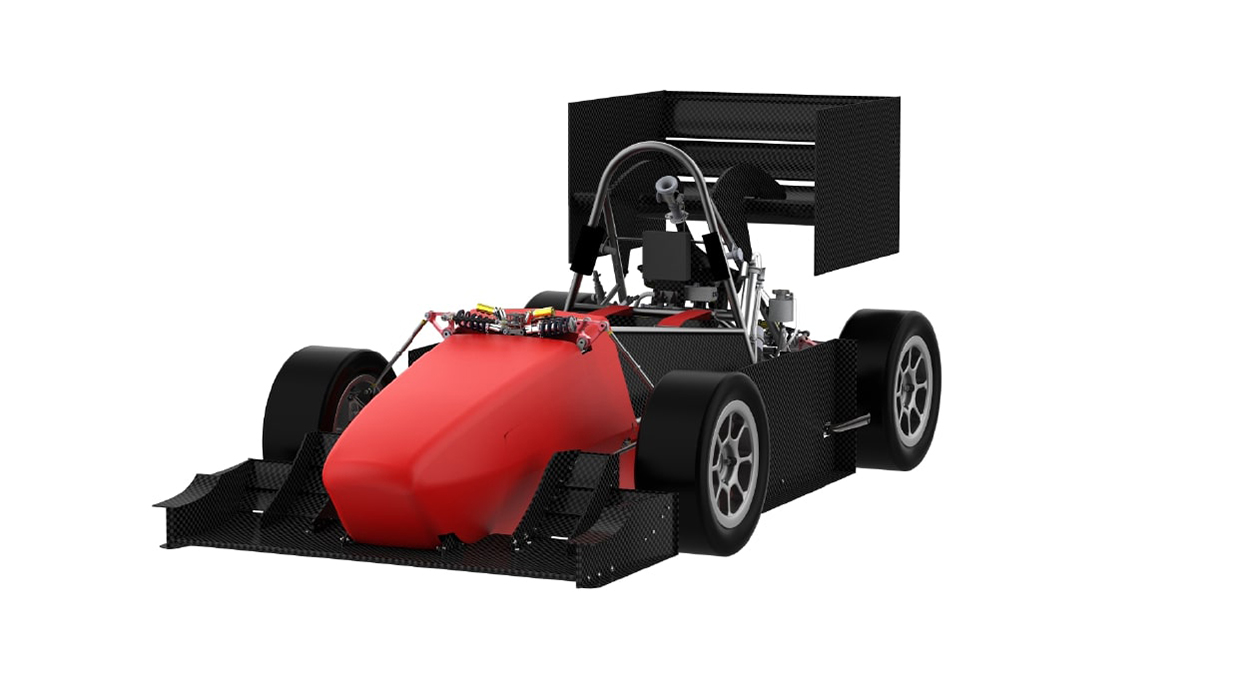

2019
Info
YTU Racing, founded in 2011, within TU Yıldız, one of the most significant and oldest universities of Turkey. YTR-06 built on the experience of prior five cars and their glories, once again competing in Formula Student Germany. Runner-up of last year’s acceleration event has come with more sophisticated aerodynamics, changes in base concept, a better suspension geometry, shorter and more rigid chassis and a total of 91 hp. Beating this beast, YTR-06, is going to be a lot harder than before.
Engineering Design Priorities:
Effective Powertrain
Vehicle Dynamics Concept
Aerodynamic Effect
Gear Shift Improvement
Basic Design
Car Specifications
General
| Frame Construction | Tubular Space Frame |
|---|---|
| Material | S460MC, FE E355, E235 |
| Overall Length (mm) | 2943 |
| Overall Width (mm) | 1441 |
| Overall Height (mm) | 1180 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 122 |
| Weight Rear (kg) | 149 |
| Suspension | Double unequal length converging AArm, Push rod actuated |
| Tyres | 175X55 R13, Hoosier R25B / 195X45 R13, Hoosier R25B |
| Wheels | 7.0X13,30 mm negative offset / 7.0X13,30 mm negative offset |
| Drive Type | Chain Drive |
| Differential | Limited Slip Differential |
| Cooling | Two symetric radiators located behind the chassis and between rear wheels. |
| Brake System | 4-Disk system, self developed rotors, adjustable brake balance |
| Electronics | Traction Control, Launch Control, Automatic Gear Shifting, Monitored Via Telemetry |
Powertrain
| Engine | 2008 Honda CBR600RR |
|---|---|
| Bore (mm) | 67 |
| Stroke (mm) | 42.5 |
| Cylinders | 4 |
| Displacement (ccm) | 599 |
| Compression Ratio | 12.2:1 |
| Fuel System | Multipoint injection with low pressure common rail system |
| Fuel | 98 Octane Unleaded Gasoline |
| Max Power (kW) | 10250 |
| Max Torque (Nm) | 10250 |

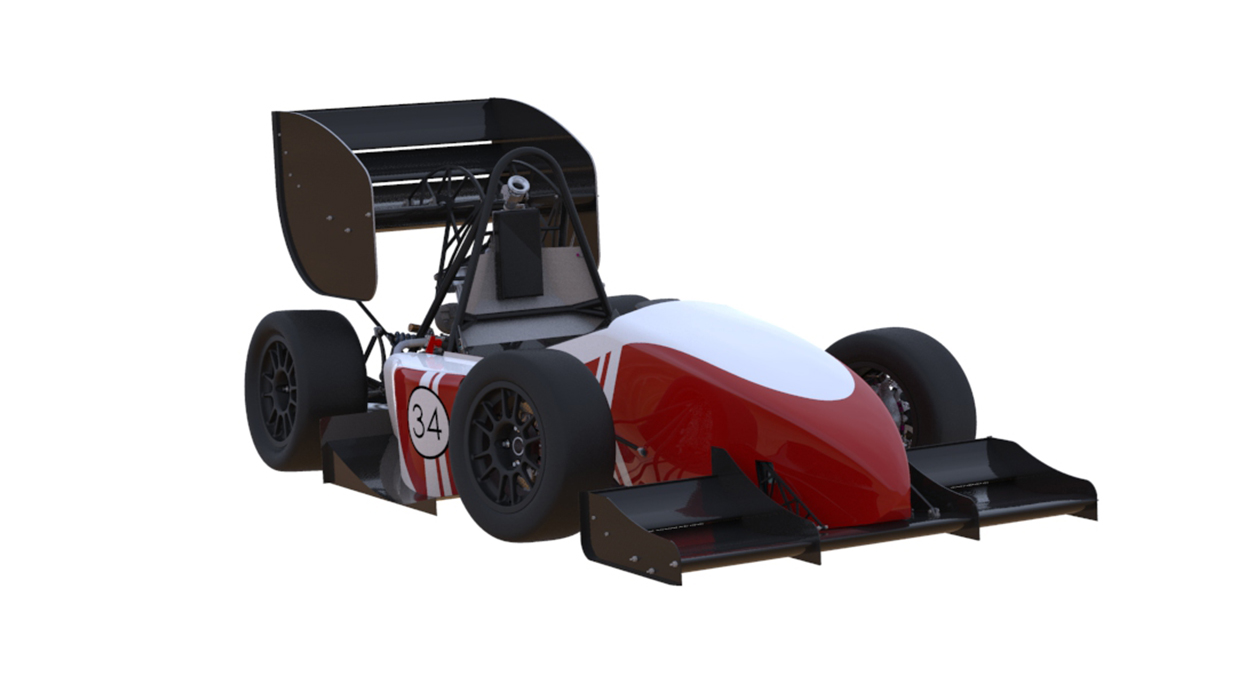

2017
Info
Behold the YTR04, fourth car of the most successful Turkish team. With already having a reliable engine unit, which made it possible to finish all the dynamic events last year, the main emphasis for this year had been to increase grip. The never-ending quest for finding speed leads to development of first ever aero package of the team. Various driving aids are added to tame this beast by upgrading the electronics. We can’t wait to visit free Magnum stand.PS: It is Yildiz TU, not Istanbul TU
Engineering Design Priorities:
vehicledynamics
aerodynamics
carbonfiber
shifting
traction
horsepower
Car Specifications
General
| Frame Construction | One piece tubular steel spaceframe |
|---|---|
| Material | St44-2, E420, DP600 and ST52 steel round tubing 14mm to 28mm diameter |
| Overall Length (mm) | 3072 |
| Overall Width (mm) | 1389 |
| Overall Height (mm) | 1182 |
| Wheelbase (mm) | 1620 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 137 |
| Weight Rear (kg) | 156 |
| Suspension | Double unequal length A-Arm. Pull rod actuated horizontally oriented spring and damper |
| Tyres | 175x55 R13 (20.5 x 7.0-13) Hoosier / 195x45 R13 (20.0 x 7.5-13) Hoosier |
| Wheels | 7x13, 22mm offset, 1 pc Al rim / 7x13, 22mm offset, 1 pc Al rim |
| Drive Type | 520 Chain Drive |
| Differential | Drexler Clutch Pack Limited Slip. with internal preload adjustment |
| Cooling | Twin side pod mounted radiators with thermostatic controlled electric fans |
| Brake System | 4-Disk system, self developed rotors with ont 240mm, rear 210mm diameter, adjustable brake |
| Electronics | Electropneumatic Shifting System |
Powertrain
| Engine | 2008 Honda CBR 600RR |
|---|---|
| Bore (mm) | 67 |
| Stroke (mm) | 42,5 |
| Cylinders | 4 |
| Displacement (ccm) | 599 |
| Compression Ratio | 12.2:1 |
| Fuel System | Student des/built multipoint injection |
| Fuel | 98 octane unleaded gasoline |
| Max Power (kW) | 11500 |
| Max Torque (Nm) | 10500 |

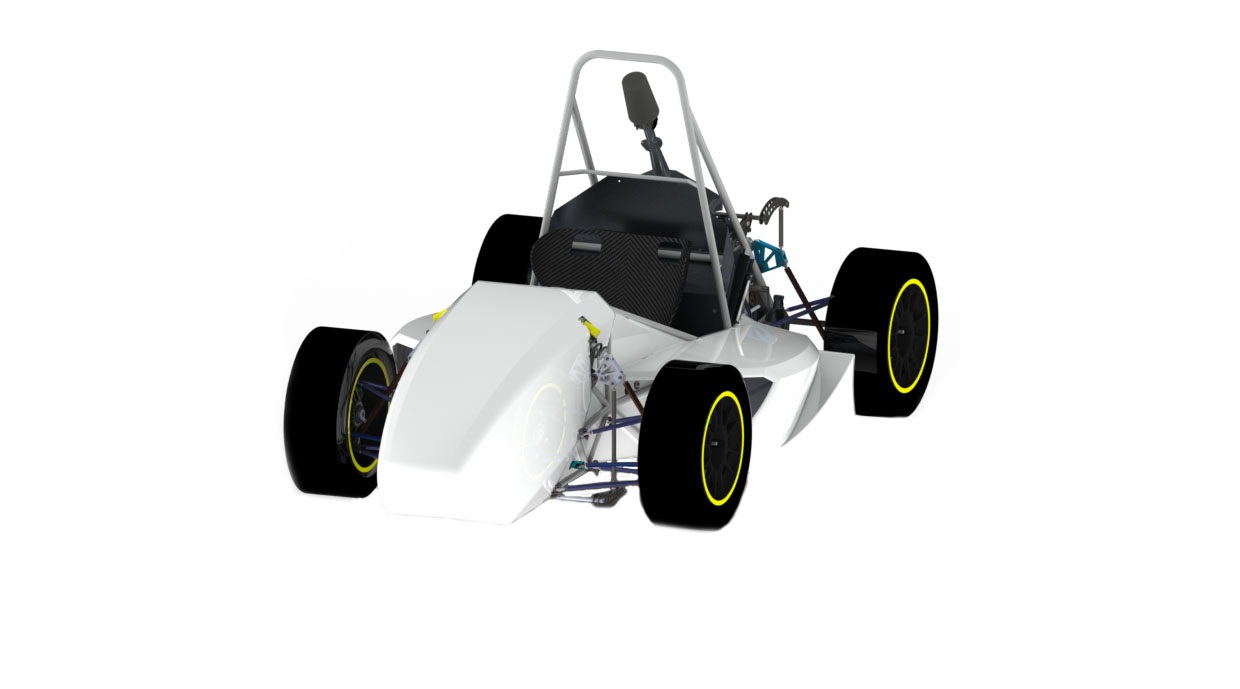

2016
Info
YTU Racing has founded in 2011. The team has a three years of Formula Student experience and it is it’s maiden year on FSG competition. We have a desire for simplicity and reliability. We set two main goals for this season: Weight reduction and to see the chequered flag on endurance. With our third car YTR03, we we did not try to make giant steps but instead choose to achieve a steady progress with slower pace. The car stands out with its lightweight ‘made-in-garage’carbonfibre parts
Engineering Design Priorities:
#yturacing
#whatacar
#becauseracecar
#ytr03
#workforendurance
#formulastudentgermany
Car Specifications
General
| Frame Construction | One piece tubular steel spaceframe |
|---|---|
| Material | Non Alloy Steel |
| Overall Length (mm) | 2724 |
| Overall Width (mm) | 1400 |
| Overall Height (mm) | 1270 |
| Wheelbase (mm) | 1600 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 156 |
| Weight Rear (kg) | 162 |
| Suspension | Double unequal unparallel wishbone. Pushrod actuated horizontally orianted spring and damper |
| Tyres | 180x530 R13 Pirelli DM / 180x530 R13 Pirelli DM |
| Wheels | 7x13, 25mm Offset, 1 pc Al Rim / 7x13, 25mm Offset, 1 pc Al Rim |
| Drive Type | Sequential GearBox |
| Differential | Drexler Limited Slip Differential , 30 Nm preload |
| Cooling | Left side pod mounted radiators with electronic controlled electric fans |
| Brake System | 4-Disk system, self developed rotors with ont 240mm, rear 210mm diameter, adjustable brake balancefr |
| Electronics | Wiring harness, Steering Wheel |
Powertrain
| Engine | 2008 Honda CBR600RR |
|---|---|
| Bore (mm) | 67 |
| Stroke (mm) | 42.5 |
| Cylinders | 4 |
| Displacement (ccm) | 599 |
| Compression Ratio | 12.2:1 |
| Fuel System | Student design ,fuel injection, full sequential |
| Fuel | 98 octane unleaded gasoline |
| Max Power (kW) | 13000 |
| Max Torque (Nm) | 9000 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.10 | 4 |
1. |
2. |
1. |
1. |
1. |
- |
1. |
- |
1. |
1. |
1. |
0.00 |
961.00 |
|
| 2025.08 | 21 |
7. |
9. |
6. |
10. |
1. |
- |
2. |
- |
1. |
- |
- |
0.00 |
484.09 |
|
| 2025.08 | 15 |
1. |
9. |
6. |
4. |
3. |
- |
1. |
- |
3. |
2. |
2. |
0.00 |
875.56 |
|
| 2024.08 | 16 |
9. |
10. |
11. |
13. |
7. |
- |
1. |
- |
3. |
- |
- |
0.00 |
356.30 |
|
| 2022.07 | 24 |
9. |
4. |
6. |
7. |
14. |
- |
2. |
- |
6. |
14. |
- |
0.00 |
457.02 |
|
| 2022.07 | 18 |
11. |
2. |
12. |
12. |
9. |
- |
2. |
- |
9. |
- |
- |
-10.00 |
363.94 |
|
| 2021.08 | 19 |
5. |
15. |
9. |
14. |
11. |
- |
1. |
- |
5. |
3. |
6. |
0.00 |
665.83 |
|
| 2019.08 | 60 |
18. |
31. |
38. |
35. |
- |
- |
8. |
- |
24. |
15. |
12. |
0.00 |
492.12 |
|
| 2019.07 | 40 |
7. |
22. |
7. |
15. |
15. |
- |
7. |
- |
4. |
9. |
12. |
0.00 |
684.75 |
|
| 2019.07 | 25 |
15. |
14. |
19. |
16. |
16. |
- |
6. |
- |
15. |
8. |
- |
0.00 |
339.33 |
|
| 2018.07 | 28 |
25. |
23. |
20. |
15. |
- |
- |
- |
- |
11. |
- |
- |
0.00 |
266.25 |
|
| 2018.07 | 46 |
20. |
38. |
30. |
10. |
18. |
- |
2. |
- |
9. |
29. |
- |
0.00 |
429.56 |
|
| 2017.08 | 64 |
20. |
45. |
39. |
49. |
- |
- |
21. |
- |
43. |
15. |
14. |
0.00 |
410.81 |
|
| 2017.08 | 33 |
14. |
23. |
29. |
30. |
20. |
- |
4. |
- |
11. |
10. |
11. |
-25.00 |
515.19 |
|
| 2017.07 | 38 |
18. |
36. |
33. |
27. |
23. |
- |
11. |
- |
19. |
11. |
13. |
0.00 |
385.00 |
|
| 2016.08 | 73 |
41. |
47. |
67. |
53. |
48. |
- |
31. |
- |
45. |
26. |
28. |
0.00 |
289.62 |
|
| 2016.07 | 106 |
34. |
73. |
63. |
96. |
35. |
- |
25. |
- |
29. |
19. |
24. |
0.00 |
402.80 |
|
| 2015.07 | 92 |
76. |
76. |
78. |
57. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
121.40 |
|
| 2014.07 | 90 |
85. |
76. |
82. |
86. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
63.30 |
|
| x 19 | |||||||||||||||
