Team Details
UVigo Motorsport
| University | Universidad de Vigo
ES Vigo U short 937 |
 |
|---|---|---|
| Location | Vigo, Spain | |
| Homepage | https://uvigomotorsport.com/ | |
| Social Media |

|
|
| EV Team | E-UVigo Motorsport | |
| Short Link | tid.fsg.one/676 | |
Team Description
Founded in 2014, UVigo Motorsport is the only Formula Student team in Galicia, Spain. Since its founding, the team has produced a prototype every year to compete in various Formula Student competitions all across Europe.
Event Profile
Past Events

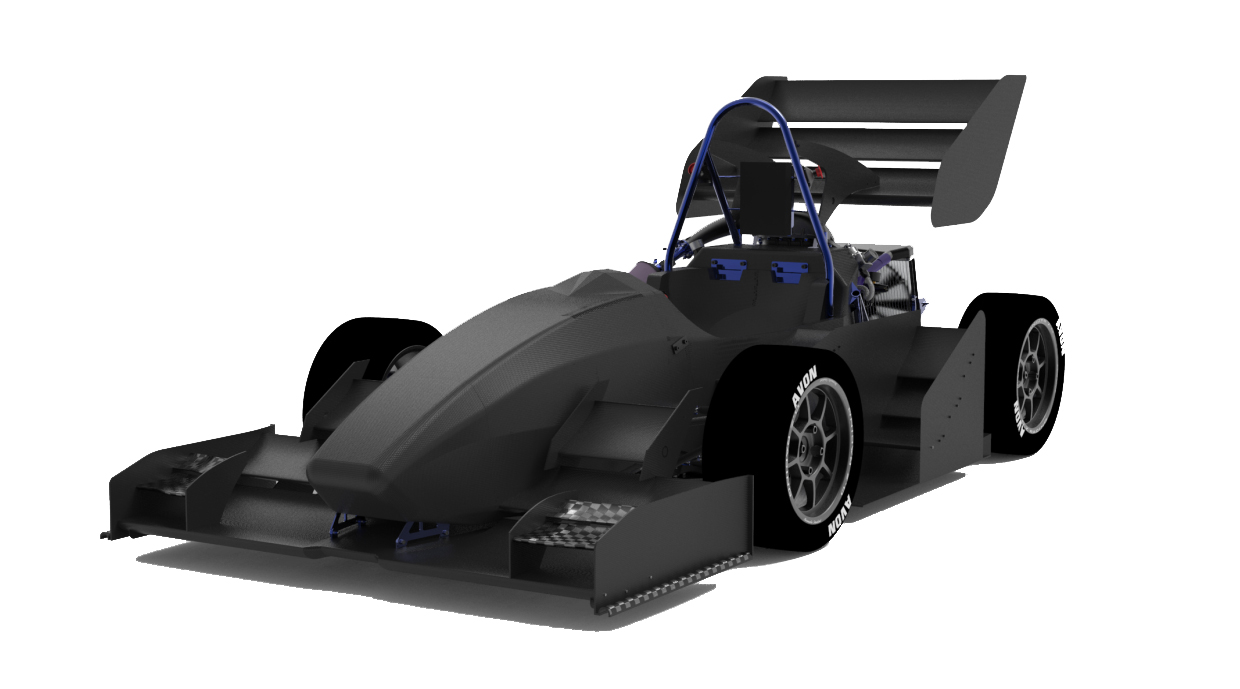

2019
Info
UVigo Motorsport is the first Formula Student team in the Spanish region of Galicia, which faces the fifth season since our formation. After having completed all the dynamic tests of the FS with the UM18 for the first time, we want to continue improving our prototype in order to gain a foothold in the competition and be able to compete with the best teams in the Formula Student.
Engineering Design Priorities:
Hybridchassis
Security
Kawasakier6-f
Telemetry
Car Specifications
General
| Frame Construction | Hibrid frame compoused by a monocoque and a rear subframe |
|---|---|
| Material | Carbon fiber monocoque and steel subframe |
| Overall Length (mm) | 2960 |
| Overall Width (mm) | 1402 |
| Overall Height (mm) | 1174 |
| Wheelbase (mm) | 1533 |
| Track Front (mm) | 1214 |
| Track Rear (mm) | 1260 |
| Weight Front (kg) | 120 |
| Weight Rear (kg) | 157 |
| Suspension | Double unequal length A-Arm. Pull rod actuated horizontally oriented spring and adjustable |
| Tyres | 200x72 R13, AVON |
| Wheels | Mg CAST 7x13, 4-Stud (4x100), ET = 30 mm |
| Drive Type | metallic chain |
| Differential | clutch pack Drexler LSD |
| Cooling | one radiator back mounted with thermostatic controlled electric fan |
Powertrain
| Engine | 2016 Kawasaki er6 two inline cylinders |
|---|---|
| Bore (mm) | 83 |
| Stroke (mm) | 60 |
| Cylinders | 2 |
| Displacement (ccm) | 649 |
| Compression Ratio | 11.3:1 |
| Fuel System | self with electronic sequential injection |
| Fuel | Gasoline |
| Max Power (kW) | 10000 |
| Max Torque (Nm) | 7000 |

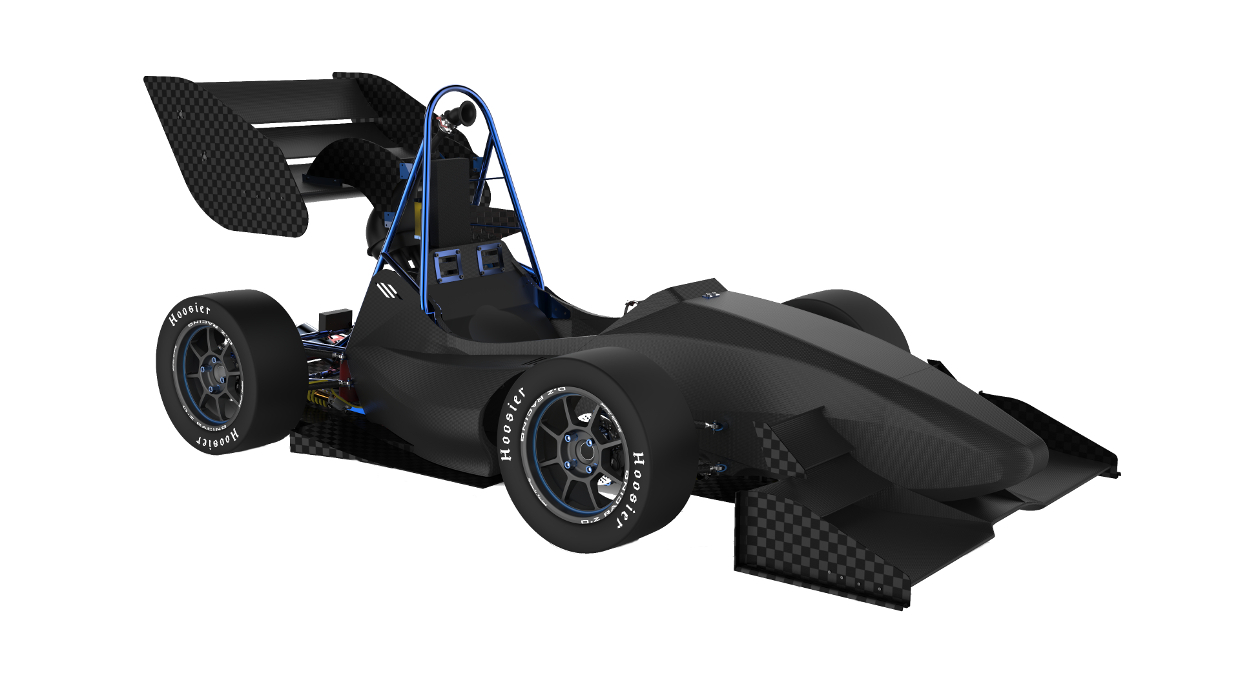

2017
Info
UVigo Motorsport is the first Formula Student team in the Spanish region of Galicia, facing the third season since our formation. Despite of being so new, we already attended the FSG in 2015 with our first vehicle, the UM15. Then, with the UM16 we jumped to a top vehicle in terms of design, with carbon fiber monocoque and a complete aerodynamic pack. This season, with the UM17 our goal is to combine complex design, high performance and maximum reliability, in order to get our highest score ever.
Engineering Design Priorities:
Reliability
Hybridchassis
Kawasakier6-f
DRS
Telemetry
Car Specifications
General
| Frame Construction | Front fibre monocoque with tubular steel sub-frame |
|---|---|
| Material | PVC DIAB D/60 core and prepreg sandwich panel (15mm core, sides 1.3mm and 1. |
| Overall Length (mm) | 3044 |
| Overall Width (mm) | 1422 |
| Overall Height (mm) | 1187 |
| Wheelbase (mm) | 1540 |
| Track Front (mm) | 1210 |
| Track Rear (mm) | 1100 |
| Weight Front (kg) | 125 |
| Weight Rear (kg) | 153 |
| Suspension | Double unequal length A-Arm. Pull rod actuated horizontally oriented spring and adjustable |
| Tyres | 20.5 x 7 - 13 |
| Wheels | Mg CAST 7x13, 30mm offset / Mg CAST 7x13, 30mm offset |
| Drive Type | Manual sequential gearbox |
| Differential | Limited sleep differential with internal preload adjustment |
| Cooling | Lateral mounted 800cc dual radiator and 130 mm electric fan at each |
| Brake System | 4-Disk system, selfmade laser cut rotors 220 mm diámeter, adjustable brake balance |
| Electronics | wiring harness sealed to IP66, selfdesigned telemetry system, paddle shift ETC |
Powertrain
| Engine | Modified Kawasaki ER6-n |
|---|---|
| Bore (mm) | 83 |
| Stroke (mm) | 60 |
| Cylinders | 2 |
| Displacement (ccm) | 649 |
| Compression Ratio | 11.3:1 |
| Fuel System | Open-source Motec system with semi-sequential injection and wasted-spark ignition |
| Fuel | 98 octane unleaded gasoline |
| Max Power (kW) | 10000 |
| Max Torque (Nm) | 7000 |

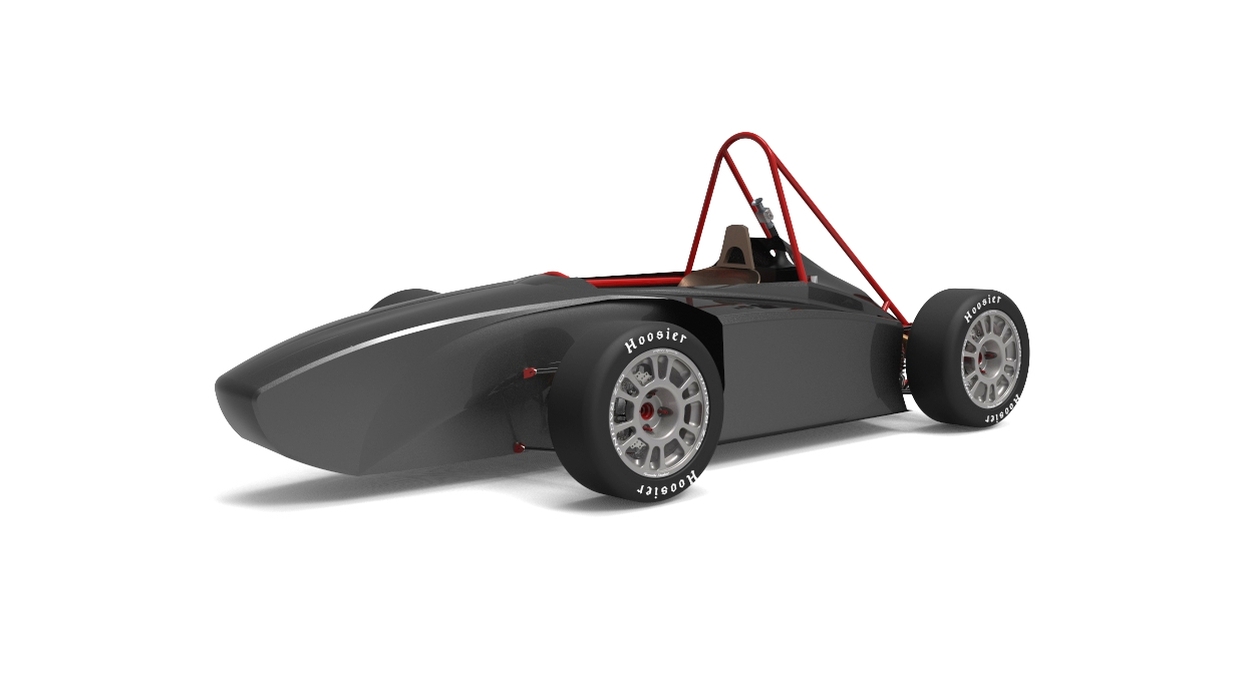

2015
Info
We are a first year FS team composed of 14 engineering students of different disciplines. We have been working very hard the last year and a half to get sponsors, design and build our prototype. Since the beginning, we targeted reducing the car weight as much as possible, and develop electronic systems which will allow us a better understanding of the car dynamics by showing the telemetry to the driver. Our project has a reduced budget, so we have looked for the best prize/performance ratio.
Engineering Design Priorities:
Low weight
7" touchscreen dash
Electric shift actuator
Moderate cost
Cared bodywork design
Double air flow sidepods
Car Specifications
General
| Frame Construction | Tubular frame |
|---|---|
| Material | AISI 4130 steel round tubing 25.4mm O.D. |
| Overall Length (mm) | 2800 |
| Overall Width (mm) | 1480 |
| Overall Height (mm) | 1080 |
| Wheelbase (mm) | 1600 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1100 |
| Weight Front (kg) | 95 |
| Weight Rear (kg) | 115 |
| Suspension | Double Unequal A- Arm pull rod suspension. Coilover 52 N/mm |
| Tyres | 205x45 R13, Hoosier B25B / 205x45 R13, Hoosier B25B |
| Wheels | 7x13 ET30 Magnesium cast rim / 7x13 ET30 Magnesium cast rim |
| Drive Type | Chain (520) with stock gearbox |
| Differential | Drexler Limit Slip Differential (LSD). Fully configurable preload |
| Cooling | Bilateral mounted 150x240mm core radiator , 138 cfm fan mounted in each radiator |
| Brake System | 4 floating disk system, 220mm diam. Valve proportioning. Remote brake bias adjust. |
| Electronics | Electric assisted gear switch. 7" touchscreen dash showing telemetry. Self designed data logger |
Powertrain
| Engine | Aprilia SX55 |
|---|---|
| Bore (mm) | 80 |
| Stroke (mm) | 55 |
| Cylinders | 2 |
| Displacement (ccm) | 553 |
| Compression Ratio | 12:1 |
| Fuel System | Random-sequential electronic injection controlled by PE3 ECU with wasted-spark ignition |
| Fuel | 98 octane unleaded gasoline |
| Max Power (kW) | 10900 |
| Max Torque (Nm) | 8750 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 21 |
13. |
15. |
9. |
9. |
8. |
- |
12. |
- |
10. |
- |
- |
-70.00 |
265.60 |
|
| 2025.08 | 6 |
2. |
4. |
1. |
1. |
2. |
- |
3. |
- |
3. |
- |
- |
-10.00 |
423.78 |
|
| 2024.08 | 18 |
3. |
17. |
3. |
7. |
3. |
- |
6. |
- |
7. |
2. |
2. |
-26.00 |
512.70 |
|
| 2023.08 | 10 |
6. |
7. |
8. |
5. |
5. |
- |
7. |
- |
7. |
3. |
- |
0.00 |
320.10 |
|
| 2023.07 | 60 |
10. |
59. |
40. |
6. |
6. |
- |
11. |
- |
6. |
17. |
- |
0.00 |
344.40 |
|
| 2022.09 | 15 |
13. |
3. |
14. |
13. |
11. |
- |
13. |
- |
9. |
5. |
- |
0.00 |
191.00 |
|
| 2022.08 | 19 |
18. |
14. |
18. |
17. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
126.81 |
|
| 2021.08 | 17 |
17. |
12. |
17. |
15. |
- |
- |
- |
- |
- |
- |
- |
-100.00 |
46.20 |
|
| 2019.08 | 28 |
16. |
10. |
18. |
17. |
- |
- |
- |
- |
18. |
9. |
9. |
-25.00 |
242.30 |
|
| 2019.08 | 60 |
60. |
- |
51. |
58. |
- |
- |
- |
- |
- |
- |
- |
-15.00 |
67.50 |
|
| 2018.08 | 37 |
26. |
26. |
24. |
25. |
23. |
- |
28. |
- |
22. |
13. |
- |
0.00 |
184.60 |
|
| 2017.08 | 31 |
21. |
18. |
3. |
12. |
25. |
- |
24. |
- |
20. |
- |
- |
0.00 |
234.50 |
|
| 2017.08 | 64 |
57. |
55. |
51. |
44. |
- |
- |
- |
- |
- |
- |
- |
-10.00 |
158.85 |
|
| 2016.08 | 36 |
28. |
24. |
30. |
16. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
186.10 |
|
| 2016.08 | 25 |
23. |
23. |
22. |
19. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
156.00 |
|
| 2015.08 | 28 |
25. |
24. |
25. |
18. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
131.68 |
|
| 2015.08 | 71 |
65. |
55. |
61. |
46. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
150.14 |
|
| 2015.07 | 92 |
72. |
60. |
74. |
51. |
- |
- |
- |
- |
- |
- |
- |
-10.00 |
133.10 |
|
| x 18 | |||||||||||||||
