Team Details
Team coolrunnings
| University | Manav Rachna International University
IN Faridabad MRIU short 857 |
 |
|---|---|---|
| Location | Faridabad, India | |
| Social Media |
|
|
| Short Link | tid.fsg.one/593 | |
Event Profile
Past Events
2014
Info
Team Synchromesh was formed in 2011. Since then, we have been participating in various international events like BAJA International and Shell Eco Marathon Asia. The team has been recognized and praised by all. The motto of our team is to DESIGN, DEVELOP and DRIVE. The team received fame when they introduced the MRV-3, a fuel efficient vehicle, in Shell Eco marathon Asia-2014. We now aim to set a benchmark at formula student Germany for all the upcoming engineers of the world.
Engineering Design Priorities:
determined
safety
strength
speed
flawless designs
benchmark

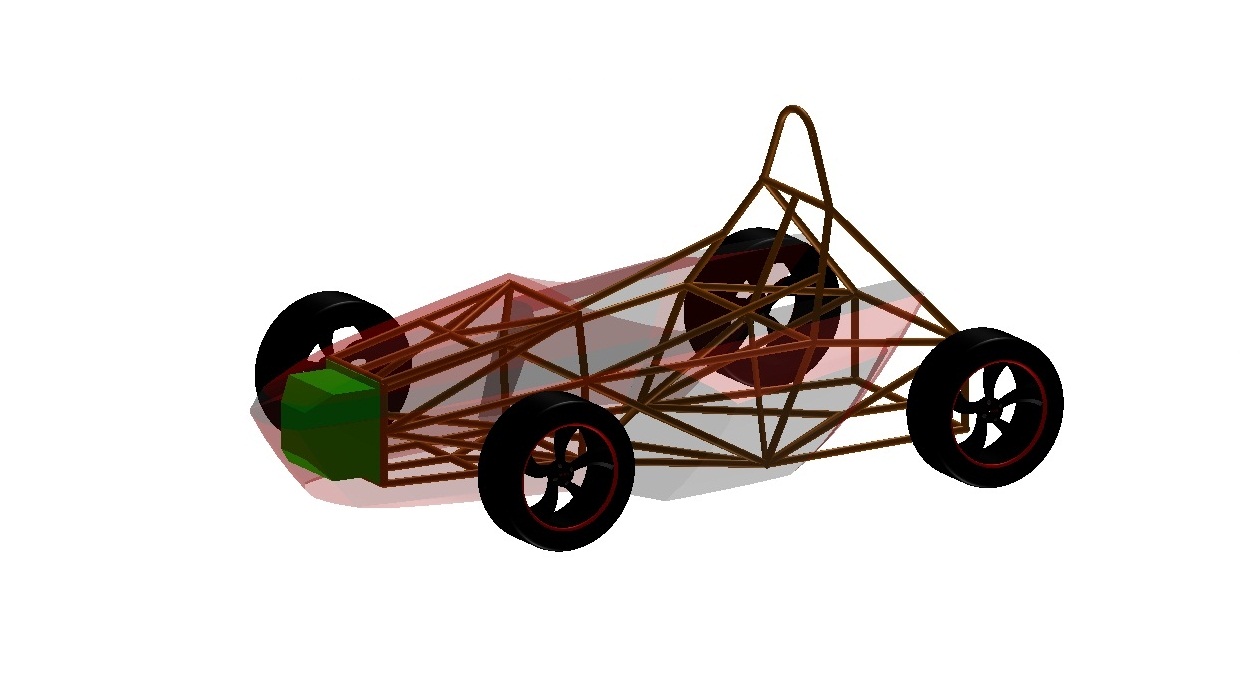

Car Specifications
General
| Frame Construction | Tubular space frame |
|---|---|
| Material | AISI 1010 |
| Overall Length (mm) | 2620 |
| Overall Width (mm) | 1670 |
| Overall Height (mm) | 1168 |
| Wheelbase (mm) | 1650 |
| Track Front (mm) | 1485 |
| Track Rear (mm) | 1385 |
| Weight Front (kg) | 105 |
| Weight Rear (kg) | 210 |
| Suspension | Double unequal length A-Arm. Push rod actuated |
| Tyres | 175x70 R13 Goodyear / 175x70 R13 Goodyear |
| Wheels | 6.5 x 13, 40 mm Offset, Al rim / 6.5 x 13, 40 mm Offset, Al rim |
| Drive Type | CV joints, direct from differential |
| Differential | Limited Slip |
| Cooling | Single side aluminium radiator |
| Brake System | 4-Disk system, 200mm cast iron rotors |
| Electronics | Fan, fuel pump, ECM, RPM meter, shift indicator |
Powertrain
| Engine | Maruti Suzuki F8b,3-cylinder,modified displacement |
|---|---|
| Bore (mm) | 60 |
| Stroke (mm) | 71.5 |
| Cylinders | 3 |
| Displacement (ccm) | 606 |
| Compression Ratio | 10:1 |
| Fuel System | Standard motorized fuel injection |
| Fuel | Gasoline |
| Max Power (kW) | 6000 |
| Max Torque (Nm) | 5500 |
