Team Details
Neftegaz Engineering
| University | Tyumen Industrial University
RU Tyumen TYUIU short 806 |
 |
|---|---|---|
| Location | Tyumen, Russia | |
| Homepage | https://m.vk.com/neftegazengineering | |
| Social Media |

|
|
| Short Link | tid.fsg.one/523 | |
Event Profile
Past Events
2017
Info
Neftegaz Engineering team was organized in 2012 in Tyumen State Oil and Gas University and in the beginning was called Formula Neftegaz. The team has already taken part in 8 Formula Student events in 4 countries (they're Italy, Hungary, China and Russia). The team is also an organizer of a special Formula Student Festival called Formula Tyumen hold in Tyumen city for 4 times.Neftegaz Engineering team has already realized 3 racing cars. New racing car of 2017 will take place in FSG 2017.

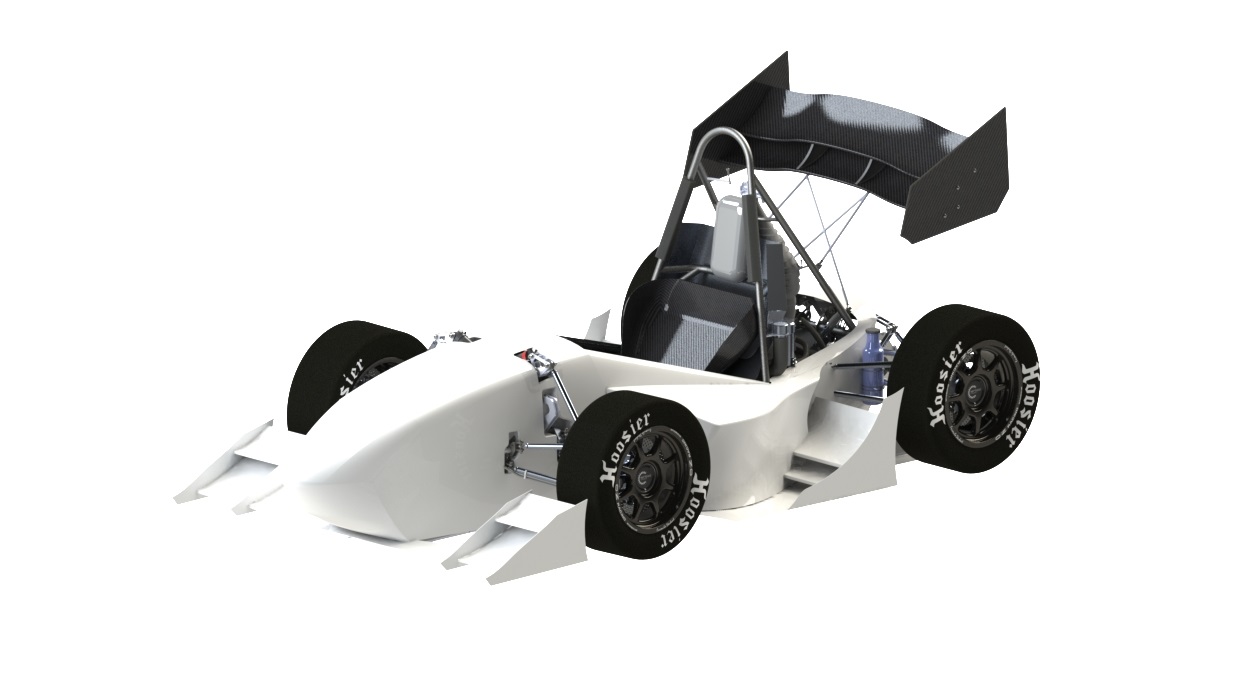

Car Specifications
General
| Frame Construction | Tube Space Frame |
|---|---|
| Material | Steel |
| Overall Length (mm) | 2769 |
| Overall Width (mm) | 1450 |
| Overall Height (mm) | 1120 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1225 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 80 |
| Weight Rear (kg) | 215 |
| Suspension | Double unequal length A-Arm, Push rod and Rocker Arms |
| Tyres | Hoosier R13, 20.5x7 |
| Wheels | OZ Magnesium, 7x13 |
| Drive Type | sequential gearbox |
| Differential | Drexler (SAE) Preloaded |
| Cooling | Radiator, Fan |
| Brake System | 4-Disk, Self Developed |
| Electronics | PowerCommander, QuickShifter, Ignistion Module |
Powertrain
| Engine | Honda CBR600RR |
|---|---|
| Bore (mm) | 67 |
| Stroke (mm) | 42.5 |
| Cylinders | 4 |
| Displacement (ccm) | 599 |
| Compression Ratio | 12.2:1 |
| Fuel System | Dual-Stage Fuel Injection |
| Fuel | 98 oct. gasoline |
| Max Power (kW) | 16000 |
| Max Torque (Nm) | 11250 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2018.07 | 46 |
41. |
42. |
26. |
33. |
- |
- |
- |
- |
34. |
38. |
- |
-60.00 |
91.50 |
|
| 2017.08 | 64 |
63. |
63. |
45. |
63. |
- |
- |
- |
- |
- |
- |
- |
-49.00 |
75.09 |
|
| 2014.09 | 44 |
44. |
25. |
- |
43. |
- |
- |
- |
- |
- |
33. |
- |
-60.00 |
12.44 |
|
| 2013.09 | 42 |
42. |
36. |
- |
38. |
- |
- |
- |
- |
- |
- |
- |
-50.00 |
27.70 |
|
| x 4 | |||||||||||||||
