Team Details
KdG Automotive
| University | Karel de Grote University College
BE Antwerpen KdG short 702 |
 |
|---|---|---|
| Location | Antwerpen, Belgium | |
| Short Link | tid.fsg.one/371 | |
Event Profile
Past Events
2012
Info

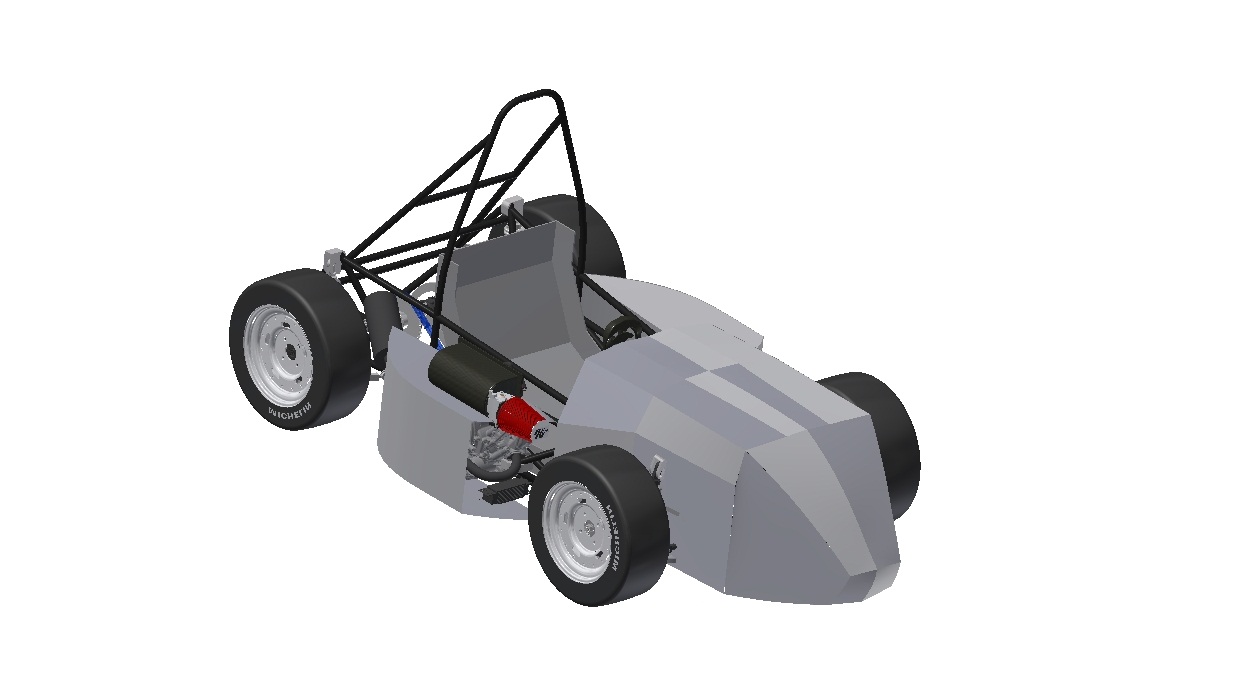

We are a motivated Belgian team with approximately 20 students from different backgrounds but all with an affinity for Racing and cars in general. The concept we chose to further develop is our "Side Engine". The concept was developed by last year's team and we chose to further develop and refine this concept. In this setup we put the motor next to the driver to centralise all mass, giving our car low inertial properties and good handling in the corners. This setup also helps us in creating a relatively short car.
Car Specifications
General
| Frame Construction | Tubular Spaceframe |
|---|---|
| Material | Steel - cold draw, seemless precision tube E355 |
| Overall Length (mm) | 2306 |
| Overall Width (mm) | 1300 |
| Overall Height (mm) | 1200 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1267 |
| Track Rear (mm) | 1267 |
| Weight Front (kg) | 135 |
| Weight Rear (kg) | 165 |
| Suspension | Double unequal length A-Arm. Direct acting spring and damper |
| Tyres | 16/53-13 Michelin S6B |
| Wheels | 13 inch Keizer Wheels (Magnesium) |
| Drive Type | 2 chain drives |
| Differential | Limited Slip differential Drexler FSAE |
| Cooling | Stock Aprilia RXV radiators equiped with fans |
| Brake System | 4 Disk system, self developed, 220mm disks (fr and rr) |
| Electronics | Electropneumatic shifting system, gear indicator and LED's on dashboard |
Powertrain
| Engine | Aprilia RXV 550 |
|---|---|
| Bore (mm) | 80mm |
| Stroke (mm) | 55mm |
| Cylinders | 2 |
| Displacement (ccm) | 550 |
| Compression Ratio | 16:1 |
| Fuel System | Motec, Bosh injectors, selfbuilt system |
| Fuel | E-85 |
| Max Power (kW) | 7000 |
| Max Torque (Nm) | 5000 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2013.09 | 42 |
36. |
- |
- |
34. |
20. |
- |
26. |
- |
28. |
33. |
- |
0.00 |
102.50 |
|
| 2013.07 | 83 |
83. |
- |
76. |
83. |
- |
- |
- |
- |
47. |
30. |
- |
-10.00 |
26.30 |
|
| 2012.08 | 76 |
75. |
73. |
- |
75. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
60.14 |
|
| 2012.07 | 97 |
85. |
72. |
84. |
86. |
- |
- |
- |
- |
- |
- |
- |
-4.00 |
90.70 |
|
| 2011.07 | 77 |
77. |
74. |
- |
- |
- |
- |
- |
- |
- |
- |
- |
-20.00 |
3.50 |
|
| x 5 | |||||||||||||||
