Team Details
Formula Buckeyes
| University | The Ohio State University
US Columbus OSU short 316 |
 |
|---|---|---|
| Location | Columbus, United States | |
| Social Media |

|
|
| Short Link | tid.fsg.one/332 | |
Event Profile
Past Events
2014
Info

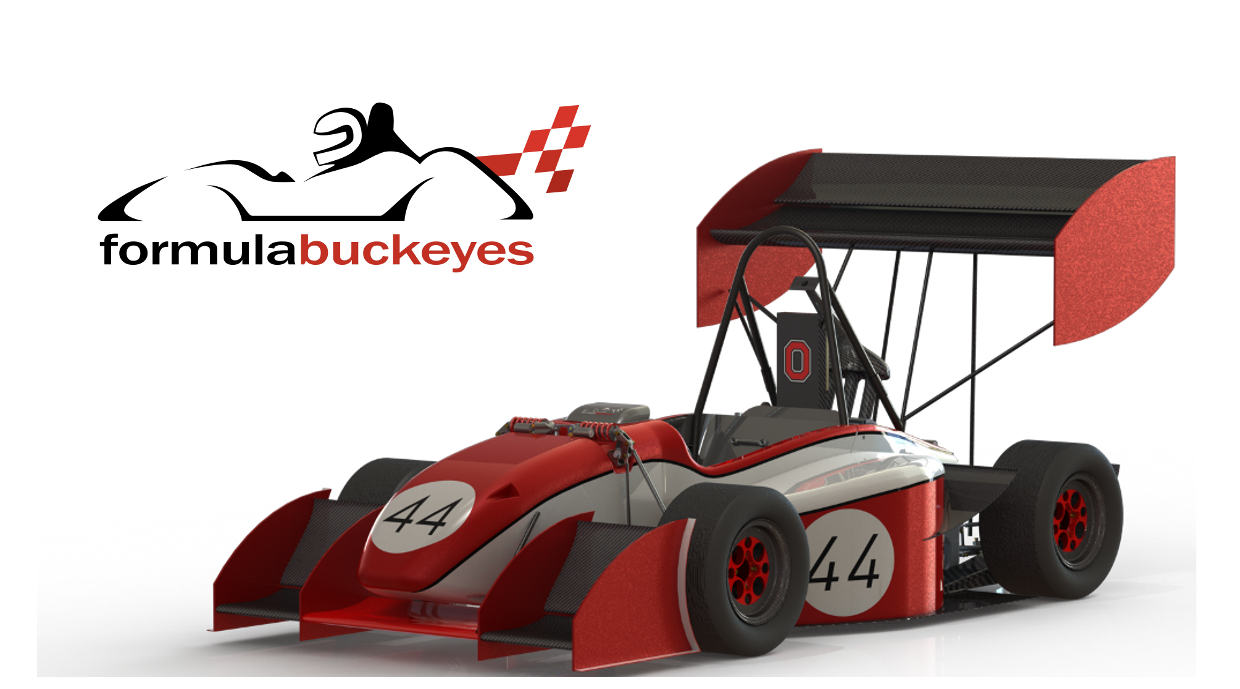

The focus of the Formula Buckeyes 2014 design was weight reduction and lowered CG height. To achieve this, the team has developed 10”, 3 piece carbon fiber wheels to replace the current 13” wheels. This combined with the switch to a Drexler differential and a redesigned two piece monocoque chassis a weight reduction of over 30 kg has been achieved. In addition their new dry sump oil system has allowed the engine to be lowered over 60 mm, helping to lower the overall CG height 27 mm.
Engineering Design Priorities:
weight reduction
carbon fiber wheels
monocoque
dry sump
engine
height
Car Specifications
General
| Frame Construction | 2 Part Carbon Monocoque, integrated roll hoop |
|---|---|
| Material | CFRP with Al and Nomex core, |
| Overall Length (mm) | 2912 |
| Overall Width (mm) | 1412 |
| Overall Height (mm) | 1270 |
| Wheelbase (mm) | 1600 |
| Track Front (mm) | 1168 |
| Track Rear (mm) | 1130 |
| Weight Front (kg) | 115 |
| Weight Rear (kg) | 141 |
| Suspension | Double Unequal Length A-Arm, Push Rod Actuated |
| Tyres | Hoosier 18.0x7.5-10 R25B |
| Wheels | 7x10 3pc, CFRP Shell, Topology optimized Al center |
| Drive Type | Chain |
| Differential | Drexler differential |
| Cooling | Sidepod mounted custom radiator with adjustable RC helicptor fan |
| Brake System | floating 4 disk system. 187.5mm diameter, driver adjustable balance, front GP 200, rear PS-1 |
| Electronics | Self developed CAN based multifunction display and live-telemetry, electropneumatic shifting |
Powertrain
| Engine | Modified Honda CBR600 F4i |
|---|---|
| Bore (mm) | 67 |
| Stroke (mm) | 42.5 |
| Cylinders | 4 |
| Displacement (ccm) | 599 |
| Compression Ratio | 13.4:1 |
| Fuel System | Motec M400 |
| Fuel | E85 |
| Max Power (kW) | 10000 |
| Max Torque (Nm) | 9000 |
2012
Info

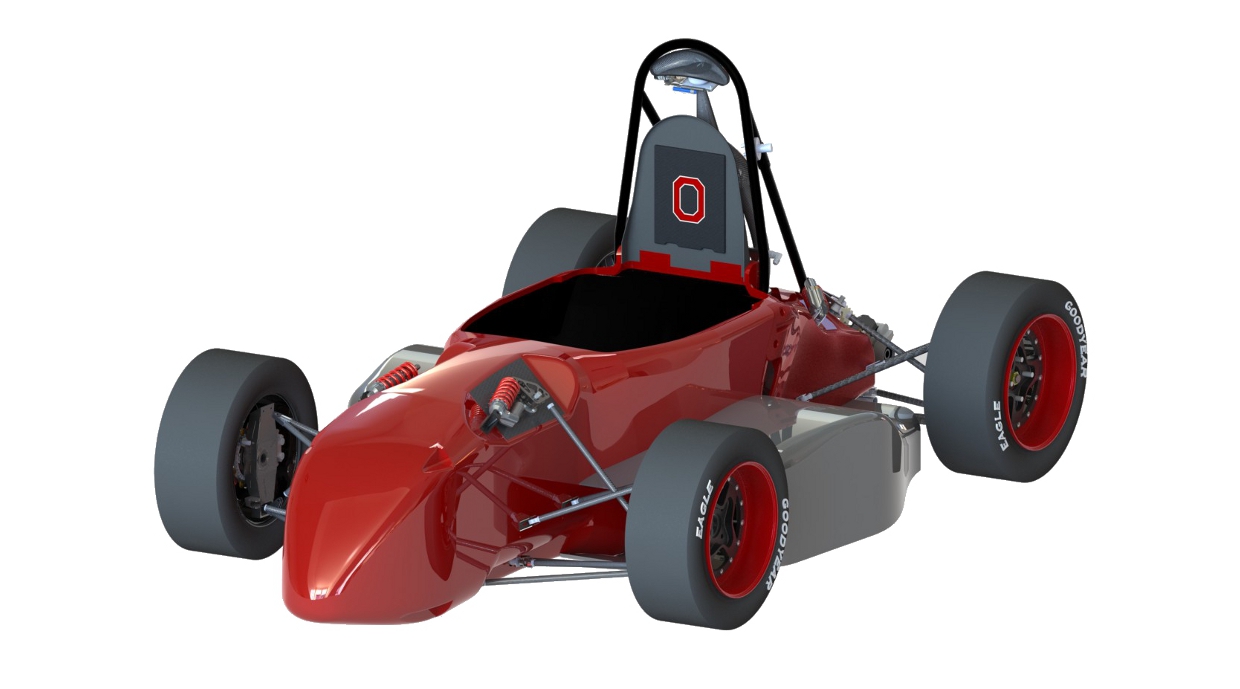

This year is The Ohio State University’s first year competing at Formula Student Germany! After a one-year hiatus, we have successfully completed a ground up redesign with a new focus on serviceability, driver comfort, and performance. “Dirty Thirty” is a two-part carbon fiber monocoque, separated by just 12 bolts, providing easy serviceability. For driver comfort, a multifunction steering wheel with variable position clutch paddles, electronic flat foot shift paddles, and a full color LCD display with driver selectable outputs has been integrated. Further driver-centric features include launch and traction control, remote brake bias control, as well as a 3 stage LED shift indicator. The car also includes countless performance attributes such as custom metal matrix composite brakes, lightweight titanium uprights, carbon fiber control arms and a custom 3-speed gearbox. The Formula Buckeyes are exited to compete this year and wish all of the competing teams good luck!
Car Specifications
General
| Frame Construction | Two part carbon fiber monocoque |
|---|---|
| Material | 2x2 twill 3K (45, 0, 45) with 12.7mm aluminum sandwich panel |
| Overall Length (mm) | 2687 |
| Overall Width (mm) | 1448 |
| Overall Height (mm) | 1160 |
| Wheelbase (mm) | 1600 |
| Track Front (mm) | 1270 |
| Track Rear (mm) | 1219 |
| Weight Front (kg) | 120 |
| Weight Rear (kg) | 153 |
| Suspension | Double unequal length A-Arm. Push rod actuated. Adjustable high and low speed jounce and rebound |
| Tyres | 20x7x13in Goodyear D-2704 all around |
| Wheels | 7x13 |
| Drive Type | Chain |
| Differential | Torsen |
| Cooling | Side mounted diffuser to nozzle radiator with auxiliary fan |
| Brake System | Custom floating metal matrix composite rotors, outboard front, inboard rear. Driver adjustable bias |
| Electronics | Steering wheel mounted color LCD with driver selectable readout, servo clutch, traction/launch cntrl |
Powertrain
| Engine | Honda CBR600f4i |
|---|---|
| Bore (mm) | 67.0 |
| Stroke (mm) | 42.5 |
| Cylinders | 4 |
| Displacement (ccm) | 599 |
| Compression Ratio | 12.0:1 |
| Fuel System | Motec M400 |
| Fuel | 98 octane unleaded |
| Max Power (kW) | 10000 |
| Max Torque (Nm) | 7000 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2024.05 | 108 |
1. |
2. |
14. |
4. |
10. |
- |
2. |
- |
1. |
1. |
18. |
0.00 |
907.60 |
|
| 2023.05 | 114 |
3. |
36. |
21. |
12. |
5. |
- |
12. |
- |
10. |
5. |
23. |
0.00 |
786.40 |
|
| 2022.06 | 43 |
12. |
22. |
14. |
20. |
25. |
- |
3. |
- |
13. |
12. |
11. |
0.00 |
586.90 |
|
| 2022.05 | 89 |
31. |
12. |
86. |
5. |
43. |
- |
18. |
- |
10. |
40. |
15. |
0.00 |
469.90 |
|
| 2019.06 | 22 |
9. |
17. |
22. |
6. |
15. |
- |
7. |
- |
5. |
12. |
5. |
0.00 |
489.70 |
|
| 2019.05 | 108 |
31. |
89. |
103. |
19. |
61. |
- |
35. |
- |
35. |
29. |
14. |
0.00 |
511.60 |
|
| 2018.06 | 23 |
11. |
6. |
17. |
6. |
7. |
- |
4. |
- |
6. |
14. |
- |
0.00 |
487.56 |
|
| 2018.05 | 114 |
36. |
9. |
102. |
17. |
81. |
- |
29. |
- |
45. |
53. |
12. |
0.00 |
411.70 |
|
| 2017.05 | 109 |
13. |
35. |
95. |
18. |
12. |
- |
22. |
- |
19. |
16. |
21. |
0.00 |
647.50 |
|
| 2016.06 | 25 |
10. |
5. |
18. |
4. |
4. |
- |
10. |
- |
8. |
13. |
14. |
0.00 |
557.49 |
|
| 2016.05 | 114 |
44. |
23. |
79. |
12. |
17. |
- |
34. |
- |
12. |
72. |
33. |
0.00 |
492.10 |
|
| 2015.06 | 64 |
25. |
32. |
52. |
4. |
12. |
- |
30. |
- |
9. |
19. |
- |
0.00 |
465.60 |
|
| 2015.05 | 108 |
46. |
3. |
99. |
18. |
13. |
- |
35. |
- |
34. |
71. |
- |
0.00 |
389.70 |
|
| 2014.08 | 74 |
24. |
18. |
59. |
9. |
18. |
- |
17. |
- |
18. |
22. |
24. |
0.00 |
467.08 |
|
| 2014.05 | 107 |
24. |
27. |
76. |
5. |
26. |
- |
11. |
- |
22. |
47. |
12. |
0.00 |
516.20 |
|
| 2013.05 | 104 |
18. |
27. |
100. |
10. |
25. |
- |
42. |
- |
44. |
12. |
37. |
0.00 |
602.70 |
|
| 2012.08 | 76 |
46. |
34. |
34. |
31. |
42. |
- |
50. |
- |
40. |
- |
- |
0.00 |
304.07 |
|
| 2010.05 | 101 |
27. |
57. |
13. |
15. |
46. |
- |
34. |
- |
56. |
19. |
33. |
0.00 |
511.40 |
|
| 2009.05 | 90 |
18. |
60. |
53. |
29. |
49. |
- |
39. |
- |
27. |
10. |
- |
-50.00 |
518.70 |
|
| 2008.05 | 104 |
28. |
56. |
66. |
37. |
- |
- |
- |
- |
38. |
21. |
- |
0.00 |
490.90 |
|
| 2007.06 | 59 |
18. |
15. |
28. |
- |
- |
- |
- |
- |
11. |
10. |
- |
0.00 |
485.46 |
|
| 2006.06 | 49 |
22. |
31. |
3. |
12. |
28. |
- |
10. |
- |
8. |
- |
- |
0.00 |
417.85 |
|
| 2006.05 | 118 |
67. |
12. |
8. |
40. |
28. |
- |
35. |
- |
76. |
- |
- |
0.00 |
275.18 |
|
| 2005.05 | 114 |
67. |
39. |
3. |
43. |
62. |
- |
51. |
- |
72. |
- |
- |
0.00 |
312.77 |
|
| 2004.05 | 129 |
10. |
14. |
3. |
4. |
42. |
- |
46. |
- |
23. |
11. |
- |
0.00 |
737.25 |
|
| 2003.05 | 111 |
25. |
3. |
4. |
15. |
21. |
- |
1. |
- |
21. |
- |
- |
0.00 |
457.62 |
|
| 2002.05 | 121 |
24. |
10. |
9. |
3. |
3. |
- |
6. |
- |
5. |
- |
- |
0.00 |
498.67 |
|
| 2001.07 | 23 |
6. |
1. |
2. |
4. |
5. |
- |
- |
- |
13. |
5. |
- |
0.00 |
712.12 |
|
| 2001.05 | 108 |
3. |
72. |
3. |
2. |
20. |
- |
1. |
- |
6. |
10. |
- |
0.00 |
800.91 |
|
| 2000.05 | 94 |
40. |
39. |
9. |
8. |
- |
- |
45. |
- |
45. |
- |
- |
0.00 |
308.04 |
|
| 1999.05 | 89 |
25. |
8. |
17. |
5. |
22. |
- |
14. |
- |
15. |
- |
- |
0.00 |
464.18 |
|
| 1998.05 | 81 |
9. |
9. |
40. |
6. |
36. |
- |
25. |
- |
15. |
9. |
- |
0.00 |
716.10 |
|
| 1997.05 | 66 |
6. |
8. |
44. |
7. |
15. |
- |
26. |
- |
4. |
3. |
- |
0.00 |
725.56 |
|
| 1996.05 | 68 |
12. |
8. |
45. |
59. |
11. |
- |
18. |
- |
8. |
15. |
- |
0.00 |
523.17 |
|
| 1995.05 | 69 |
25. |
24. |
- |
16. |
36. |
- |
11. |
- |
27. |
24. |
25. |
0.00 |
461.39 |
|
| 1994.05 | 58 |
14. |
17. |
- |
18. |
8. |
- |
30. |
- |
32. |
10. |
33. |
0.00 |
527.14 |
|
| x 36 | |||||||||||||||
