Formula Student Germany
International Design Competition - 18th to 24th of August 2025 in Hockenheim

Team Details

University of Alberta FSAE

University University of Alberta
CA Edmonton U Alberta short 406
LocationEdmonton, Canada
Homepagehttps://www.ualbertafsae.com/
Short Linktid.fsg.one/329

Event Profile

Past Events

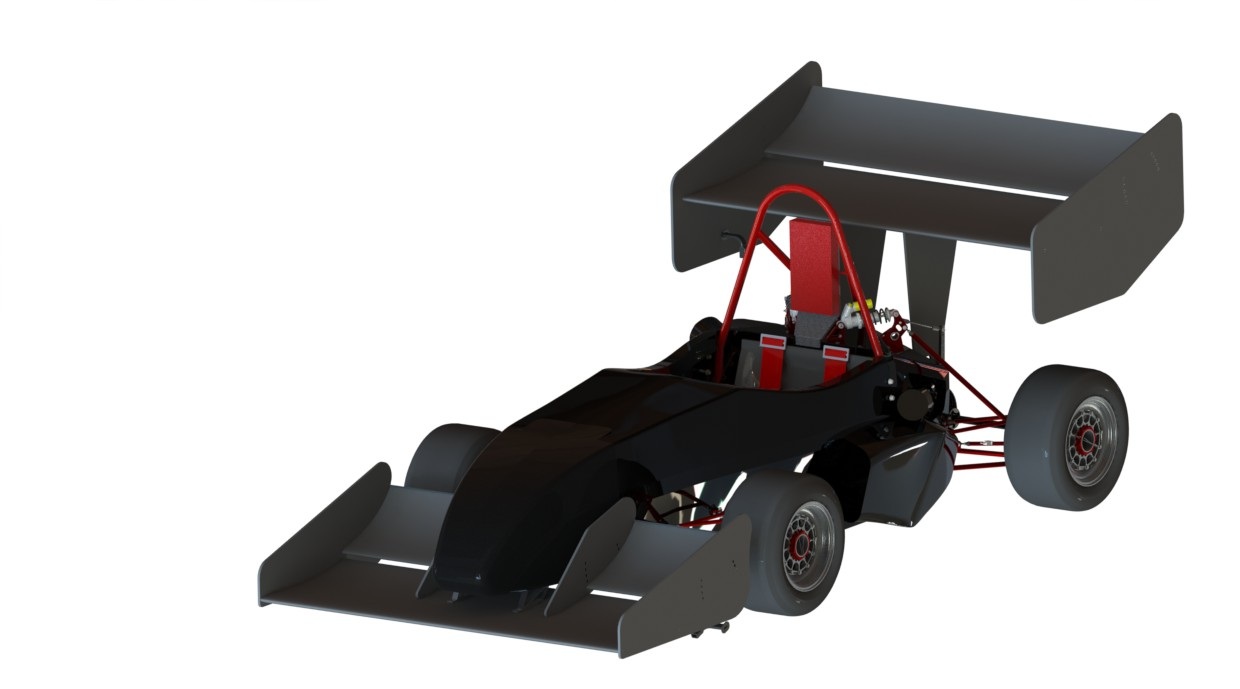

Car 16 – 2013
2013
Car #16
Info
A performance-at-all-costs approach was taken to create a car capable of winning. This was made possible through the use of a custom lap time simulator. The 2013 car is affectionately named "Sexy Beast". Come stop by our paddock to see the "Sexy Beast" and have a friendly chat! We would like to thank all of our sponsors and our Faculty advisor for making another season of racing possible. For more details please see our website: http://www.ualbertafsae.com
Car Specifications
General
Frame Construction Carbon fiber monocoque
Material Oxeon TeXtreme, Toray T800, Aluminium honeycomb thicknesses vary
Overall Length (mm) 3042
Overall Width (mm) 1388
Overall Height (mm) 1141
Wheelbase (mm) 1524
Track Front (mm) 1168
Track Rear (mm) 1162
Weight Front (kg) 104
Weight Rear (kg) 110
Suspension up (All about the Aero!)
Tyres Hoosier 6.0/18-10.0 LC0
Wheels 6.5x10, 3 pc Al
Drive Type 420 Chain to Drexler differentain
Differential Salisbury
Cooling Dual side mounted Al radiators. Single oil cooler and electric fan.
Brake System Floating rotors, Tilton 77 series MC, AP racing calipers
Electronics Custom Datalogger, Custom power PCB, Custom Clutch/Shift controller
Powertrain
Engine Modified Yamaha WR450F
Bore (mm) 98.0
Stroke (mm) 63.4
Cylinders 1
Displacement (ccm) 478
Compression Ratio 13,5:1
Fuel System Single port fuel injection, MAP based, dynamometer calibrated
Fuel 98 octane unleaded gasoline
Max Power (kW) 8100
Max Torque (Nm) 7100

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2023.05
FSAE MI
114
104.
91.
95.
90.
-
-
-
-
-
-
-
-10.00
109.80
2022.06
FSAE MI
43
21.
23.
20.
8.
20.
-
14.
-
10.
29.
-
0.00
413.30
2022.05
FSAE MI
89
53.
18.
26.
7.
-
-
49.
-
58.
55.
-
0.00
264.70
2019.06
FSAE LN
76
18.
21.
64.
29.
33.
-
11.
-
31.
17.
15.
0.00
538.20
2019.06
FSAE North
22
18.
13.
5.
11.
18.
-
16.
-
18.
14.
-
0.00
335.60
2018.06
FSAE LN
66
54.
59.
7.
25.
-
-
-
-
-
-
-
0.00
205.00
2017.06
FSAE LN
70
59.
54.
12.
41.
-
-
-
-
-
41.
-
0.00
194.40
2016.06
FSAE LN
69
55.
53.
13.
32.
-
-
-
-
-
-
-
0.00
175.90
2015.06
FSAE LN
64
51.
43.
11.
32.
-
-
-
-
-
46.
-
0.00
197.30
2013.08
FS DE
74
46.
20.
44.
33.
41.
-
54.
-
37.
-
-
0.00
317.90
2013.06
FSAE LN
60
26.
12.
14.
7.
31.
-
30.
-
33.
32.
17.
0.00
470.60
2012.06
FSAE LN
65
41.
6.
3.
27.
-
-
-
-
-
-
-
0.00
218.50
2011.06
FSAE CA
60
7.
1.
1.
8.
28.
-
9.
-
22.
13.
13.
0.00
657.30
2010.06
FSAE CA
56
4.
5.
1.
7.
7.
-
5.
-
11.
6.
6.
0.00
766.60
2009.06
FSAE CA
45
11.
19.
2.
14.
11.
-
20.
-
22.
13.
-
0.00
587.40
2008.06
FSAE CA
59
15.
23.
14.
17.
30.
-
5.
-
37.
15.
-
0.00
491.00
2007.06
FSAE CA
59
36.
35.
28.
28.
30.
-
15.
-
40.
-
-
0.00
305.03
2006.06
FSAE CA
49
37.
21.
4.
38.
32.
-
38.
-
34.
-
-
0.00
242.70
2005.05
FSAE MI
114
81.
40.
35.
77.
79.
-
65.
-
-
-
-
0.00
242.97
2004.05
FSAE MI
129
105.
83.
92.
48.
-
-
-
-
-
-
-
0.00
185.35
2003.05
FSAE MI
111
59.
33.
99.
90.
56.
-
74.
-
74.
22.
-
0.00
293.87
2002.05
FSAE MI
121
91.
17.
113.
46.
-
-
-
-
-
-
-
0.00
182.65
2001.05
FSAE MI
108
54.
58.
69.
88.
-
-
71.
-
12.
-
-
0.00
284.06
2000.05
FSAE MI
94
92.
-
86.
-
-
-
-
-
-
-
-
0.00
36.04
1999.05
FSAE MI
89
30.
2.
32.
46.
54.
-
-
-
51.
25.
-
0.00
397.65
