Team Details
Unitus Racing Team
| University | Università degli Studi della Tuscia
IT Viterbo U Tuscia short 597 |
|
|---|---|---|
| Location | Viterbo, Italy | |
| Short Link | tid.fsg.one/278 | |
Event Profile
Past Events

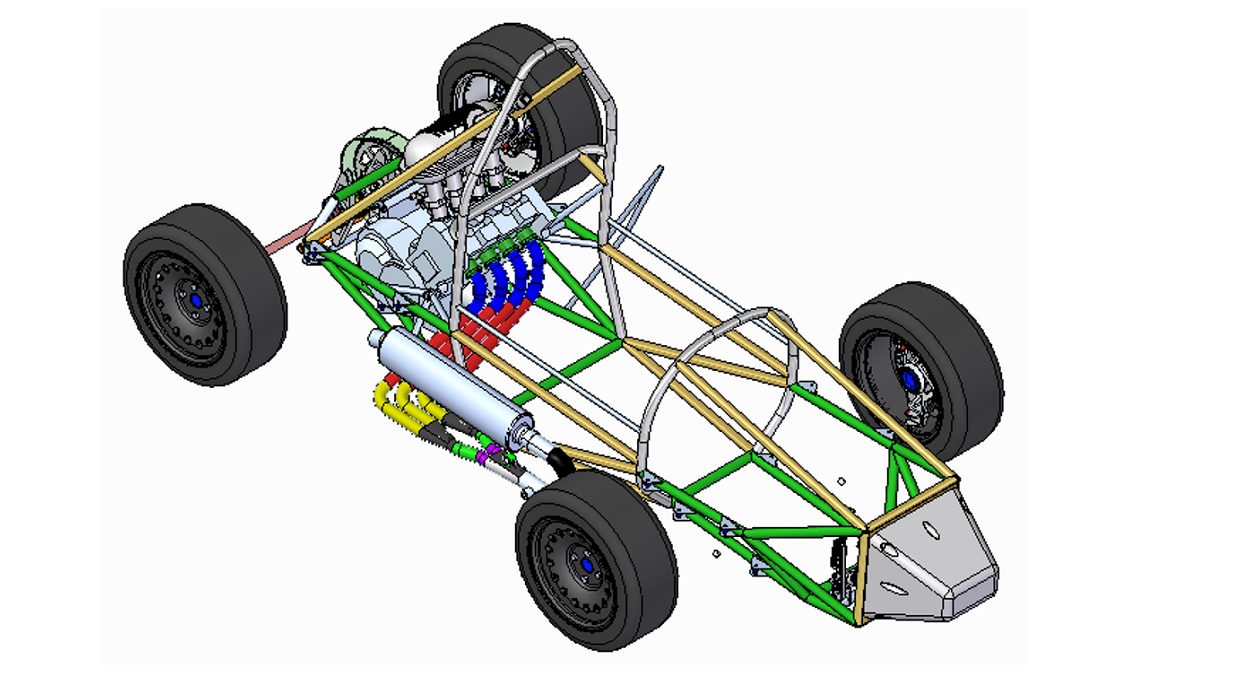

2012
Info
TUSCIA Reparto Corse has been participating in Formula SAE since 2009. The team took part in European official events in 2010 and 2011 with encouraging results. Year after year, the team has gained higher standing as regards its debut season. The philosophy behind the 2012 project involves the design and implementation of a reliable, light, powerful, easy to drive car with a low cost of construction and maintenance. In developing the project, extensive use of CAE software was made, for the mechanical design and for the tuning of the powertrain. The main specifications in 2012 of the TUSCIA RC car consist of: optimized steel tube chassis, Honda CBR F Sport engine, intake manifolds in Polyamide nylon and exhaust manifolds in titanium, aluminum wheel group, lighter shafts with tri-pod joints, limited slip differential, data logging system with sensors for vehicle dynamics, carbon fiber bodywork for an overall car weight of 220 kg, 60 kW @ 11.500 rpm and 58 Nm @ 8.000 rpm.
Car Specifications
General
| Frame Construction | Front and rear tubular space frame with Aluminium and CFRP panels |
|---|---|
| Material | 4130 steel round tubing 1.000 |
| Overall Length (mm) | 2702 |
| Overall Width (mm) | 1423 |
| Overall Height (mm) | 1206 |
| Wheelbase (mm) | 1600 |
| Track Front (mm) | 1240 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 143 |
| Weight Rear (kg) | 155 |
| Suspension | Double unequal length A-Arm. Push rod actuated spring / damper. Adj. Roll bar |
| Tyres | 20x7.2-13 A45 Avon |
| Wheels | 20x7.2-13 A45 Avon or 20x8.2-13 A45 Avon |
| Drive Type | DID 520 steel chain |
| Differential | Drexler limited slip differential, Pre load: 20-25 Nm on delivery, 10 Nm after initial run in |
| Cooling | left side pod mounted radiator with ECU controlled electric fan |
| Brake System | 4-disk, floating, Cast Iron, hub mounted, 220mm dia. X 4mm, drilled, with phonic wheel function |
| Electronics | wiring harness sealed to IP67, GET MD3 datalogger, can bus, GPS, Gyro, traction and lunch controls |
Powertrain
| Engine | Honda CBR F Sport year 2002 4 cylinder |
|---|---|
| Bore (mm) | 67 |
| Stroke (mm) | 42.5 |
| Cylinders | 4 |
| Displacement (ccm) | 599 |
| Compression Ratio | 13:1 |
| Fuel System | GET HPUH sequential injection and spark ignition, 3-D map, 74 deg BTDC ma |
| Fuel | 98 octane unleaded gasoline |
| Max Power (kW) | 11500 |
| Max Torque (Nm) | 9000 |

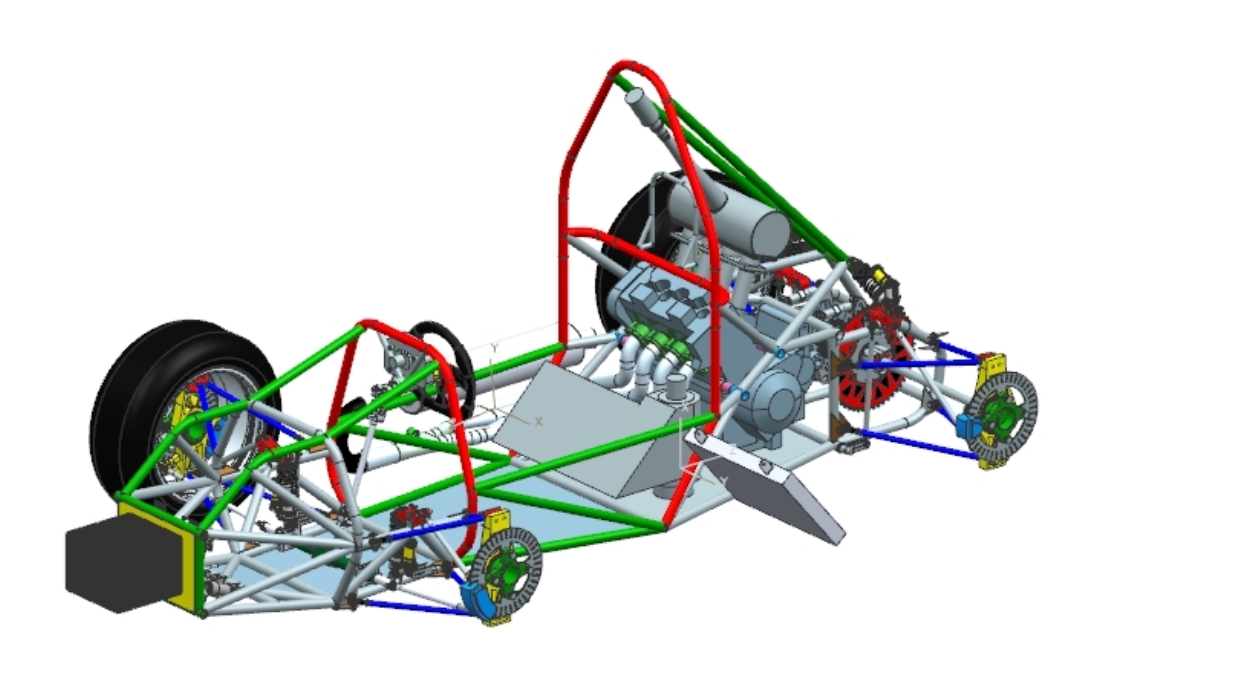

2011
Info
The philosophy behind the 2011 project involves the design and implementation of a reliable car, powerful, easy to ride and with low cost of implementation and ownership. In developing the project an extensive use of CAE software has made, for mechanical design and for the design and tuning of the powertrain.The 2010 car had shown a high reliability, going to points in all tests of endurance, and a powerful and tuned powertrain. The main defects of the car 2010 were still high weight and not optimal handling.The cornerstones of the 2011 project then are to reduce weight, optimize handling and the adoption of anti-roll bars, not in the vehicle 2010.For the powertrain developments have focused on getting a power increase of about 5 HP earned by working on cam timing and reducing consumption, optimizing the fuel mixture in relation with the temperature of the exhaust gases.
Car Specifications
General
| Frame Construction | Steel tubolar space frame with carbon fiber panels |
|---|---|
| Material | Steel tubes and Epoxy resin with 380 gr/m2 carbon fiber panels |
| Overall Length (mm) | 2450 |
| Overall Width (mm) | 1350 |
| Overall Height (mm) | 1160 |
| Wheelbase (mm) | 1600 |
| Track Front (mm) | 1240 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 143 |
| Weight Rear (kg) | 162 |
| Suspension | Double unequal length A-Arm. Push rod actuated spring and damper. Adjustable in compres./rebound. |
| Tyres | 20x7.2-13 A45 Soft Avon |
| Wheels | 13" X 7 ", 108 PCD, +31 ET, Braid FormRace |
| Drive Type | 11/52 drive-driven sprockets |
| Differential | Drexler Limited Slip Differential V1 |
| Cooling | Lateral mounted 1000cc Honda radiator with 220mm electric fan |
| Brake System | 4-Disk system, self developed rotors with 230mm diameter, proportioning valve, AP racing calipers |
| Electronics | wiring harness sealed to IP67, electronic dashboard with datalogging, exaust gas thermocouples, GPS |
Powertrain
| Engine | Modified Honda CBR F Sport year 2002 |
|---|---|
| Bore (mm) | 67 |
| Stroke (mm) | 42.5 |
| Cylinders | 4 |
| Displacement (ccm) | 599 |
| Compression Ratio | 12.1 |
| Fuel System | GET HPUH-4 ECU Renesas SH2 microcontroller 32 Bit RISC 80 MHz 100,with sequential injection |
| Fuel | 98 octane unleaded gasoline |
| Max Power (kW) | 12500 |
| Max Torque (Nm) | 10500 |

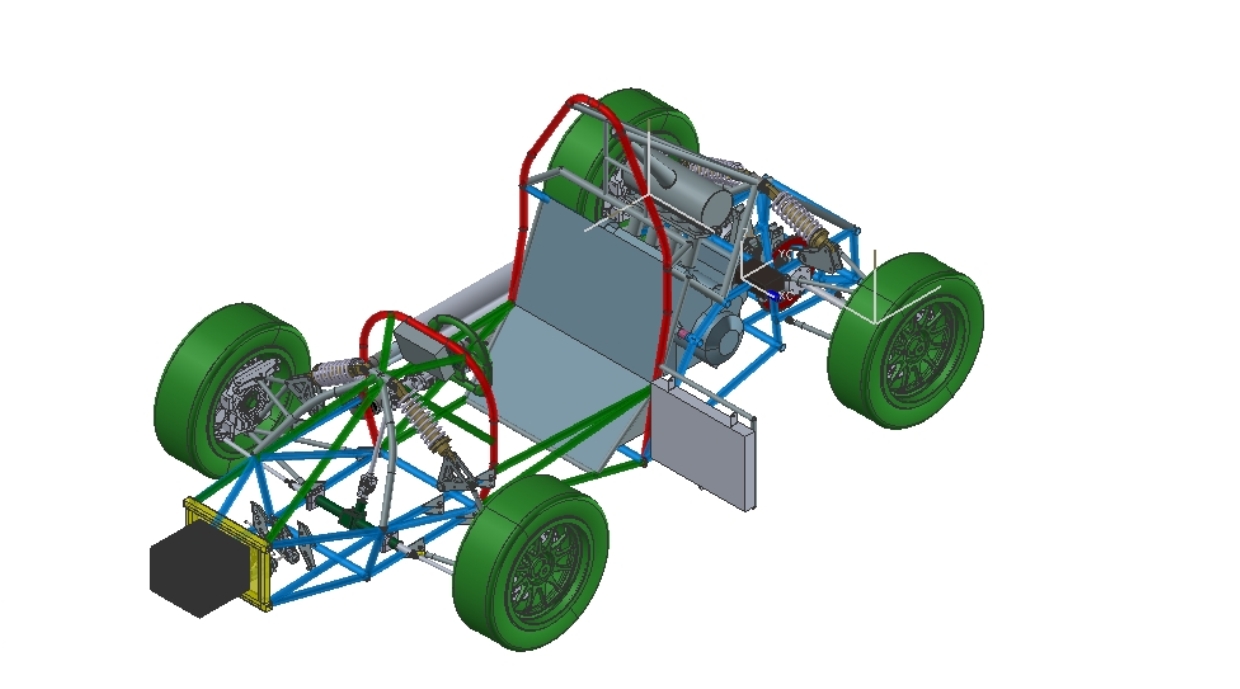

2010
Info
POMOS Reparto Corse is the racing team of Sustainable Mobility Centre of Regione Lazio, POMOS, and organizes the participations to motorsport events and competitions with an ecologic and educational feeling.POMOS laboratories are equipped for the design, construction and testing of innovative and educational prototypes.POMOS Reparto Corse participates directly to the Formula SAE Championship, after a collaboration with Sapienza and Tor Vergata Universities in 2007 and 2008. Formula SAE is an important tool to prepare the young engineer to know and solve the typical problems of technical and economical management of a work group. The great agonistic feeling typical of Formula SAE events makes easier and deeper the learning process of students.The participations to these motorsport events confers great visibility in national and international media.POMOS searches for technical or economical partners and sponsors in order to support adequately the team efforts.
Car Specifications
General
| Frame Construction | cold drawn steel tube construction |
|---|---|
| Material | Stainless Steel 1020 |
| Overall Length (mm) | 2688 |
| Overall Width (mm) | 2080 |
| Overall Height (mm) | 1138 |
| Wheelbase (mm) | 1650 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1250 |
| Weight Front (kg) | 121 |
| Weight Rear (kg) | 138 |
| Suspension | Double unequal length A-Arm. Push rod actuated spring and damper |
| Tyres | 180/530-13 Kumho |
| Wheels | 180/530-13 Kumho |
| Drive Type | Chain |
| Differential | Qaife TorSen LSD |
Powertrain
| Engine | KTM LC4 |
|---|---|
| Bore (mm) | 101 |
| Stroke (mm) | 78 |
| Cylinders | 1 |
| Displacement (ccm) | 609 |
| Compression Ratio | 10,5:1 |
| Fuel System | MPI, 1 injector, Bosch fuel pump, Trijekt ECU |
| Fuel | 98 Octane Gasoline |
| Max Power (kW) | 7500 |
| Max Torque (Nm) | 4000 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2012.09 | 37 |
16. |
24. |
6. |
10. |
- |
- |
- |
- |
9. |
14. |
- |
0.00 |
409.91 |
|
| 2012.09 | 16 |
7. |
12. |
6. |
10. |
10. |
- |
4. |
- |
6. |
7. |
- |
0.00 |
537.24 |
|
| 2012.08 | 76 |
56. |
38. |
39. |
70. |
- |
- |
7. |
- |
35. |
- |
- |
-5.00 |
243.06 |
|
| 2012.07 | 97 |
63. |
49. |
69. |
84. |
40. |
- |
30. |
- |
29. |
56. |
- |
-3.00 |
178.00 |
|
| 2011.09 | 49 |
39. |
47. |
8. |
45. |
32. |
- |
19. |
- |
23. |
28. |
- |
-100.00 |
204.00 |
|
| 2011.08 | 74 |
31. |
71. |
70. |
47. |
43. |
- |
20. |
- |
43. |
18. |
28. |
0.00 |
365.75 |
|
| 2010.09 | 41 |
26. |
32. |
29. |
31. |
26. |
- |
16. |
- |
22. |
22. |
- |
-55.00 |
397.53 |
|
| 2010.08 | 75 |
58. |
51. |
70. |
68. |
- |
- |
- |
- |
57. |
20. |
- |
0.00 |
229.95 |
|
| 2010.07 | 72 |
36. |
44. |
58. |
53. |
42. |
- |
14. |
- |
32. |
23. |
- |
-30.00 |
236.20 |
|
| 2009.09 | 36 |
35. |
- |
25. |
36. |
27. |
- |
25. |
- |
26. |
- |
- |
0.00 |
112.07 |
|
