Team Details
Formula Student Team Darmstadt
| University | Hochschule Darmstadt, UAS
DE Darmstadt UAS short 548 |
![]() |
|---|---|---|
| Location | Darmstadt, Germany | |
| Homepage | https://fastda-racing.de | |
| Social Media |
|
|
| EV Team | FaSTDa Racing | |
| Short Link | tid.fsg.one/199 | |
Event Profile
Past Events

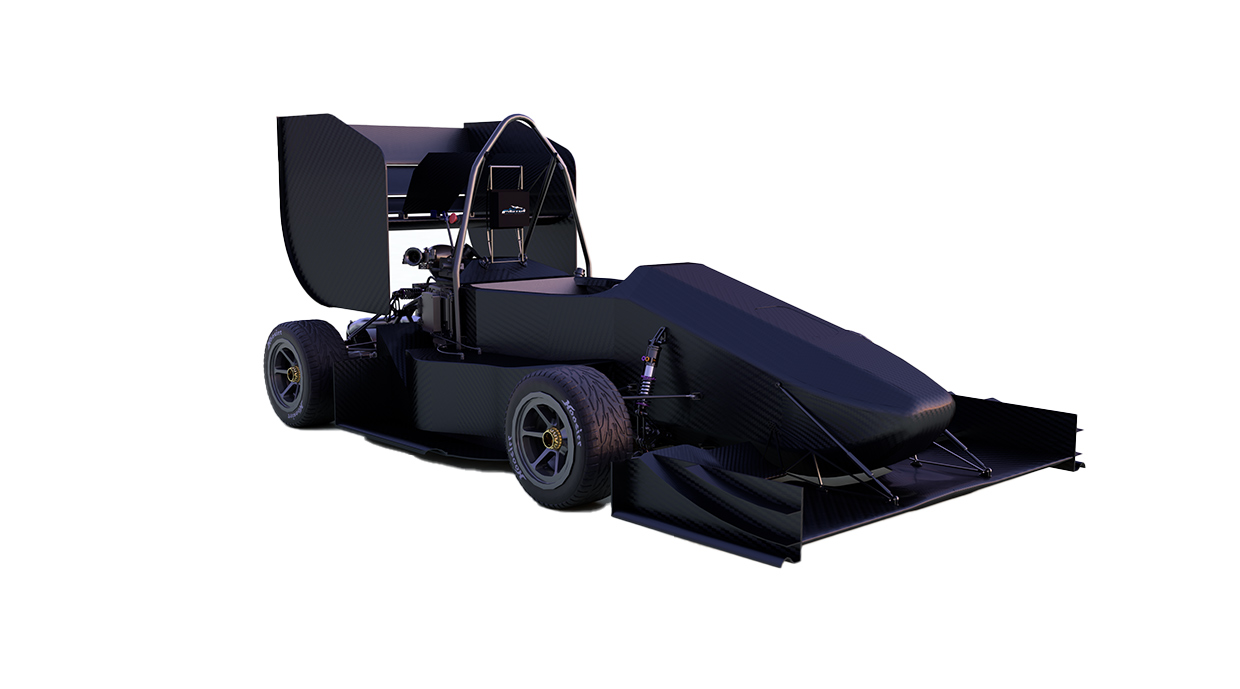

2021
Info
The F20 aka Eva, is the 12th combustion race car of our team. With 74 hp and 63 Nm, the F20 is the most powerful vehicle in FaSTDa history. Through new production methods, such as the use of pre-preg or the switch to low-profile tires, we were able to reduce our overall weight by more than 20 kg compared to the previous model.With 50 team members from more than 10 study programs, the team is more diverse than ever and therefore was able to prepare for all disciplines with lots of motivation.
Engineering Design Priorities:
light weight
efficiency
monoqocue
CFD
steering system
small tires
Car Specifications
General
| Frame Construction | Monocoque with tubular space frame |
|---|---|
| Material | CFRP with aluminium honeycomb + S235 |
| Overall Length (mm) | 2896 |
| Overall Width (mm) | 1452 |
| Overall Height (mm) | 1184 |
| Wheelbase (mm) | 1540 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 118 |
| Weight Rear (kg) | 118 |
| Suspension | Double wishbone unequal length with pull rod (front) and push rod actuation (rear) |
| Tyres | 16.0 x 6.0-10 Hoosier LC0 |
| Wheels | 7.0x10 OZ Magnesium Rims |
| Drive Type | Chain driven RWD motorcycle-type gearbox |
| Differential | Drexler LSD |
| Cooling | Vertically mounted 12x8 core water radiator at the sides with controlled fans |
| Brake System | 4-disk system with 200mm diameter (front/rear), fixed calipers, adjustable brake balance |
| Electronics | self-designed Power Distribution Unit, sensorboards, display unit, live-telemetry |
Powertrain
| Engine | KTM 450SX-F (2016) |
|---|---|
| Bore (mm) | 95 |
| Stroke (mm) | 72 |
| Cylinders | 1 |
| Displacement (ccm) | 510 |
| Compression Ratio | 15,46:1 |
| Fuel System | Single port injection system with fuel pump integrated in fuel tank |
| Fuel | E85 |
| Max Power (kW) | 9000 |
| Max Torque (Nm) | 7500 |

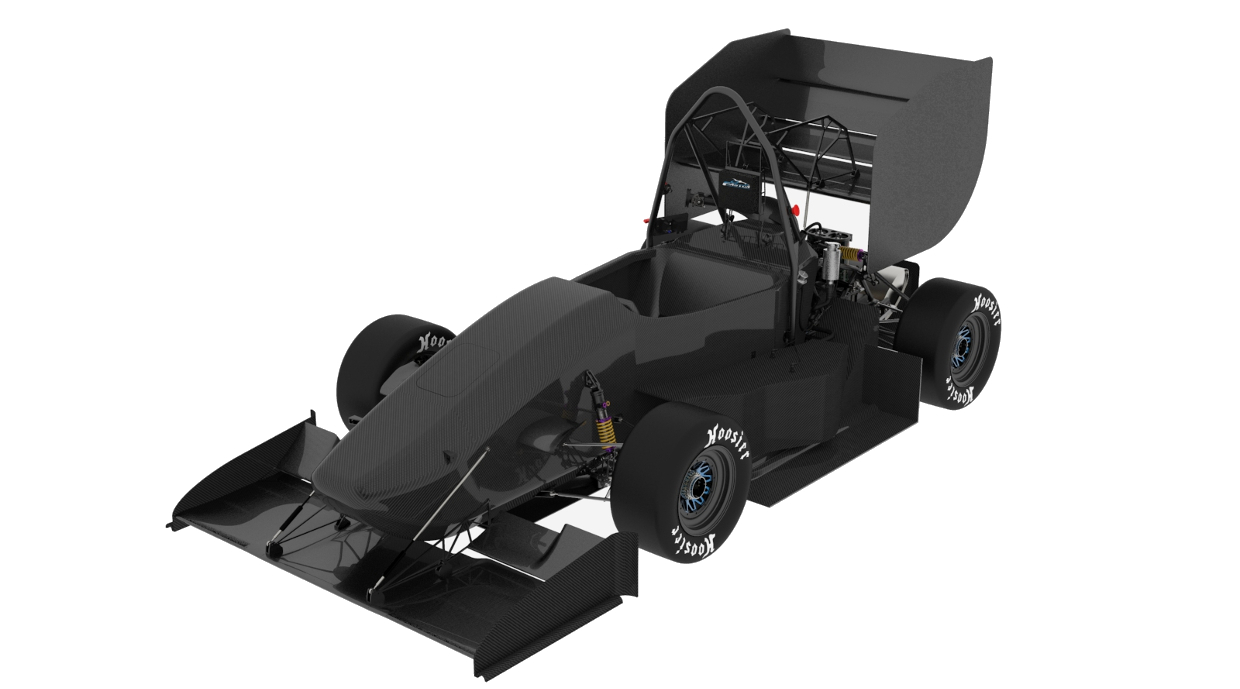

2019
Info
Having gathered knowledge and lots of experience over the past years, the team is aiming higher than ever. To help improve overall performance, we redesigned our monocoque and the aerodynamics package. We're incredibly excited to experience Formula Student Germany once again. Now, we are ready to compete with the best teams of the world and are looking forward to a great event! A special thanks goes to our supporters, who make this amazing experience possible!
Engineering Design Priorities:
monocoque
steering system
more efficient packaging
engine & cooling
cfd
guesswhosback
Car Specifications
General
| Frame Construction | Monocoque + rear tubular steel space frame |
|---|---|
| Material | CFRP + S235 |
| Overall Length (mm) | 2940 |
| Overall Width (mm) | 1430 |
| Overall Height (mm) | 1170 |
| Wheelbase (mm) | 1540 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 130 |
| Weight Rear (kg) | 128 |
| Suspension | Double wishbone unequal length with pull/push rod actuation, 3-way adjustable dampers |
| Tyres | Hoosier R25B, Hoosier R25B |
| Wheels | Keizer 10×6.25, Keizer 10×6.25 |
| Drive Type | Chain driven RWD motorcycle-type gearbox |
| Differential | Drexler LSD, 30Nm pre-load, adjustable locking ratio |
| Cooling | Vertically mounted 12x8 core water radiator at the sides with controlled fans |
| Brake System | 4-disk system with 200mm diameter (front/rear), fixed calipers, adjustable brake balance |
| Electronics | self-designed: Power Distribution Unit, Sensorboard, Display Unit, Live-Telemetry |
Powertrain
| Engine | Modified KTM 450 SXF |
|---|---|
| Bore (mm) | 95 |
| Stroke (mm) | 72 |
| Cylinders | 1 |
| Displacement (ccm) | 510 |
| Compression Ratio | 13,35:1 |
| Fuel System | Bosch single port injection EV14 |
| Fuel | E85 |
| Max Power (kW) | 8800 |
| Max Torque (Nm) | 6600 |

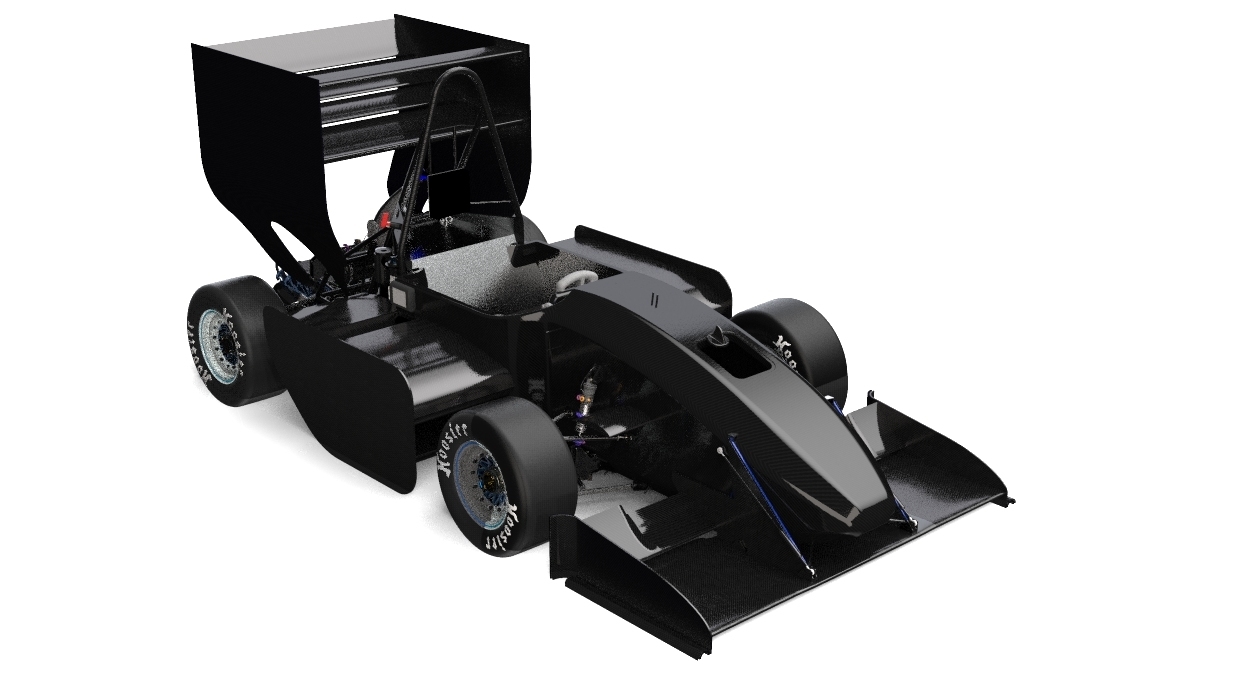

2018
Info
Our car, the F18, is a completely new invention. For the first time ever, we designed and manufactured a carbon fiber monocoque instead of a steel grid frame. In addition, there were inevitable changes to the chassis, aerodynamics and ergonomics. Now, we are ready to compete with the best teams of the world and looking forward for a great event! A special thanks goes to our supporters, who make this amazing experience possible!
Engineering Design Priorities:
monocoque
engine frames
improved cooling system
more efficient packaging
guesswhosback
Car Specifications
General
| Frame Construction | Monocoque + rear tubular steel space frame |
|---|---|
| Material | CFRP + S235 |
| Overall Length (mm) | 2940 |
| Overall Width (mm) | 1430 |
| Overall Height (mm) | 1170 |
| Wheelbase (mm) | 1540 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 120 |
| Weight Rear (kg) | 147 |
| Suspension | Double unequal length A-arm, actuation via pullrods, adjustable dampers, anti-roll bar |
| Tyres | Hoosier 190/55 R10 (front and rear) |
| Wheels | Keizer 10×7 |
| Drive Type | Chain/RWD |
| Differential | Limited Slip |
| Cooling | right side mounted |
| Brake System | 4-disk system with 200mm diameter (front/rear), fixed calipers, adjustable brake balance |
| Electronics | FPGA based display unit, central power distribution unit, CAN sensor boards |
Powertrain
| Engine | KTM SXF 450 custom modifications |
|---|---|
| Bore (mm) | 95 |
| Stroke (mm) | 72 |
| Cylinders | 1 |
| Displacement (ccm) | 510 |
| Compression Ratio | 14.35:1 |
| Fuel System | Bosch single port injection EV14 |
| Fuel | E85 |
| Max Power (kW) | 9500 |
| Max Torque (Nm) | 6500 |

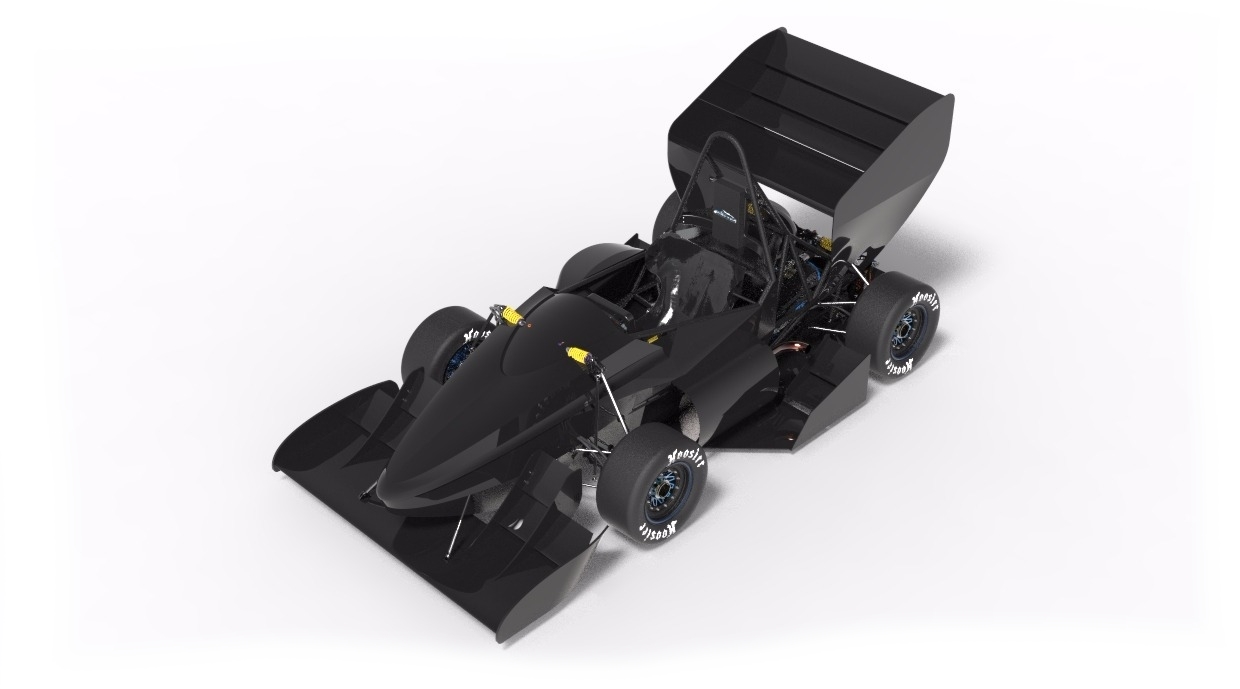

2017
Info
After a great 12th place at FSG 2016, we're back for more!Building on its successful predecessor, the F17 offers many technical improvements in all areas of the car. New pneumatic shifter, new airbox, new sidepods, new electronics, new steering wheel... the list goes on. With a lighter and more performant car, we're ready to compete with the best teams of the world and look forward to a great event!A special thanks goes to our sponsors and supporters, who make this amazing experience possible!
Engineering Design Priorities:
#guesswhosback
Reliability
Quality
#backformore
Car Specifications
General
| Frame Construction | Tubular space frame |
|---|---|
| Material | E235 |
| Overall Length (mm) | 2940 |
| Overall Width (mm) | 1430 |
| Overall Height (mm) | 1170 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1205 |
| Track Rear (mm) | 1205 |
| Weight Front (kg) | 136 |
| Weight Rear (kg) | 126 |
| Suspension | Double unequal length A-Arm, actuation via push rods, adjustable dampers, anti-roll bar |
| Tyres | 18 x 8,5 R10 Hoosier R25B/18 x 8,5 R10 Hoosier R25B |
| Wheels | Aluminium center lock wheel star, CFRP rim shells |
| Drive Type | Sequential 4 speed gear box, 428 chain |
| Differential | Drexler Limited Slip Differential, custom made preload adjustment |
| Cooling | Side mounted radiator, thermostatic controlled electric fan |
| Brake System | 4 disk system, self-developed floating rotors, adjustable brake balance |
| Electronics | 4,2'' touch display, self-developed FPGA board and CAN measurement system |
Powertrain
| Engine | KTM SX-F 450 (modified) |
|---|---|
| Bore (mm) | 95 |
| Stroke (mm) | 72 |
| Cylinders | 1 |
| Displacement (ccm) | 510 |
| Compression Ratio | 14,3:1 |
| Fuel System | Dual injection (1x port, 1x inside plenum), dash fittings |
| Fuel | E85 |
| Max Power (kW) | 9500 |
| Max Torque (Nm) | 7000 |

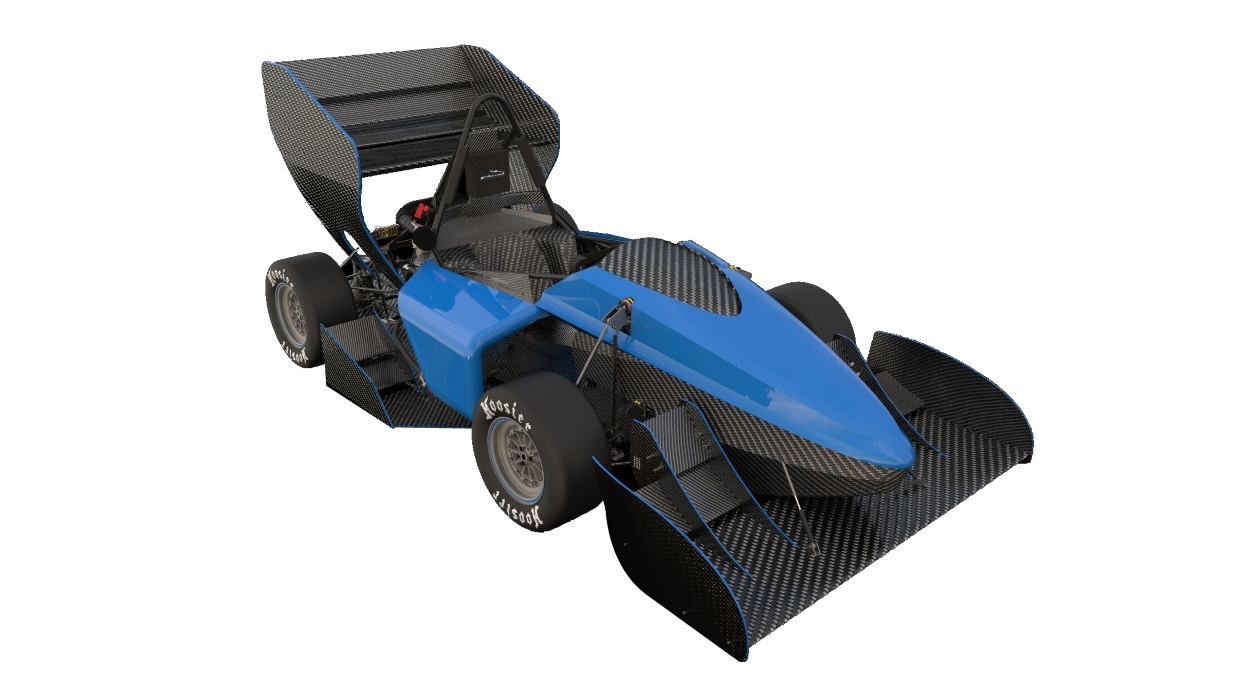

2016
Info
"Evolution instead of revolution" - the motto of this year's racecar engineered and built by FaSTDa Racing. Our new F16 is based on its predecessor and packed with a bunch of technical highlights. Our main goal for 2016 was to improve existing designs rather than to reinvent them. With better aerodynamics, an improved suspension and our modified single-cylinder engine we plan to race with the best!A special thanks goes to our sponsors and supporters, who make this amazing experience possible!
Engineering Design Priorities:
EvolutionStattRevolution
Reliability
Precision
Quality
Design
Car Specifications
General
| Frame Construction | Tubular space frame |
|---|---|
| Material | E235 |
| Overall Length (mm) | 2940 |
| Overall Width (mm) | 1430 |
| Overall Height (mm) | 1170 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1205 |
| Track Rear (mm) | 1205 |
| Weight Front (kg) | 136 |
| Weight Rear (kg) | 126 |
| Suspension | Double unequal length A-Arm, actuation via push rods, adjustable dampers, anti-roll bar |
| Tyres | 18 x 8,5 R10 Hoosier R25B/18 x 8,5 R10 Hoosier R25B |
| Wheels | Three-piece aluminium rim |
| Drive Type | Sequential 6 speed gear box, 428 chain |
| Differential | Drexler Limited Slip Differential, custom made preload adjustment |
| Cooling | Side mounted radiator, thermostatic controlled electric fan |
| Brake System | 4 disk system, self-developed floating rotors, adjustable brake balance |
| Electronics | 4,2'' touch display, self-developed FPGA board and CAN measurement system |
Powertrain
| Engine | KTM SX-F 450 (modified) |
|---|---|
| Bore (mm) | 95 |
| Stroke (mm) | 72 |
| Cylinders | 1 |
| Displacement (ccm) | 510 |
| Compression Ratio | 14,3:1 |
| Fuel System | Dual injection (1x port, 1x inside plenum), dash fittings |
| Fuel | E85 |
| Max Power (kW) | 9500 |
| Max Torque (Nm) | 7000 |

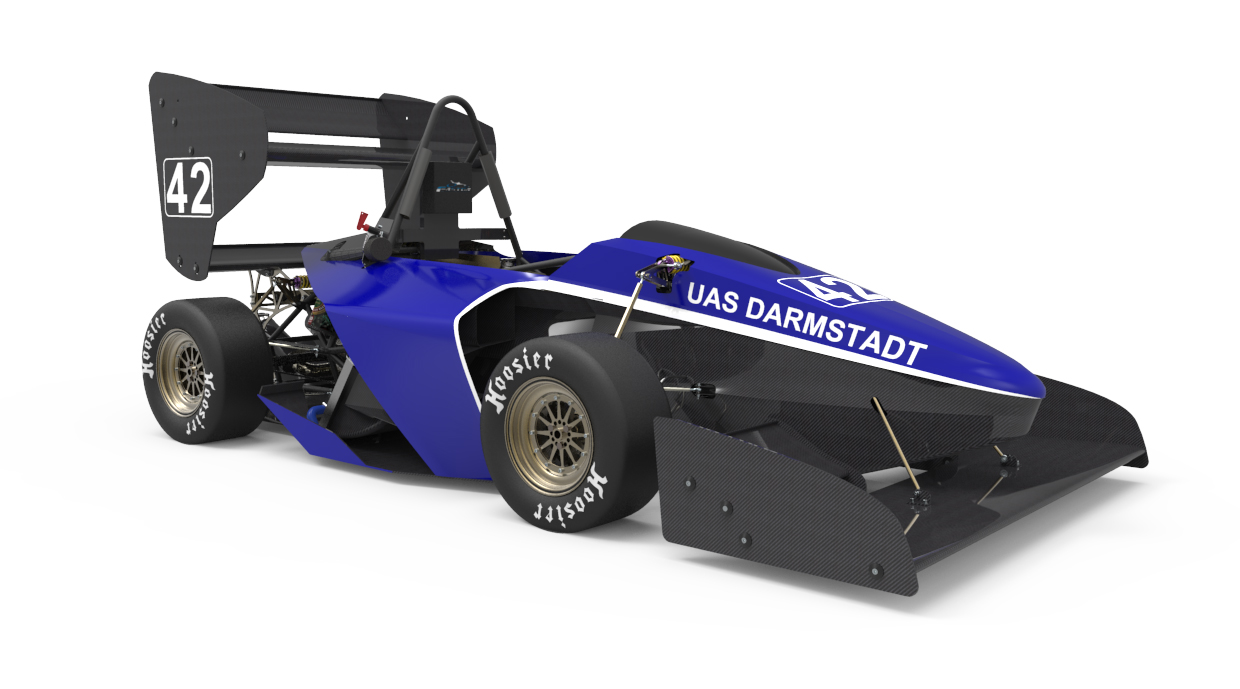

2015
Info
F15: 10 inch, full aerodynamic package, custom engine and adjustable ergonomics. These are the words that describe this years’ F15 the best! With a motivated team that mixed old and experienced members with young and spirited newcomers we are prepared to give our best on FSG2015! Unlike the other teams, we have a few years of experience with the trending single-cylinder engines which we will prove on the race track. A big thank you to our sponsors who made this beautiful car possible!
Engineering Design Priorities:
F15
success is teamwork
10
wings
custom engine
Car Specifications
General
| Frame Construction | Steel Tube Frame |
|---|---|
| Material | Steel |
| Overall Length (mm) | 2950 |
| Overall Width (mm) | 1410 |
| Overall Height (mm) | 1195 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1206 |
| Track Rear (mm) | 1206 |
| Weight Front (kg) | 149 |
| Weight Rear (kg) | 167 |
| Wheels | 6,25" Aluminum |
| Drive Type | 6 speed gear box, final drive with 428 V |
| Differential | Drexler Limited Slip Differential for FSAE |
| Cooling | 1 radiator on each side |
| Brake System | 4-disk system, self developed rotors, adjustable brake balance |
| Electronics | ECU Syvecs S8, self-developed FPGA-Board for Data Logging and Display Control |
Powertrain
| Engine | Modified KTM SX-F 450 |
|---|---|
| Bore (mm) | 95 |
| Stroke (mm) | 72 |
| Cylinders | 1 |
| Displacement (ccm) | 510 |
| Compression Ratio | 14,5:1 |
| Fuel System | dual injection, 1x port injection, 1x inside plenum |
| Fuel | E85 |
| Max Power (kW) | 9500 |
| Max Torque (Nm) | 7000 |

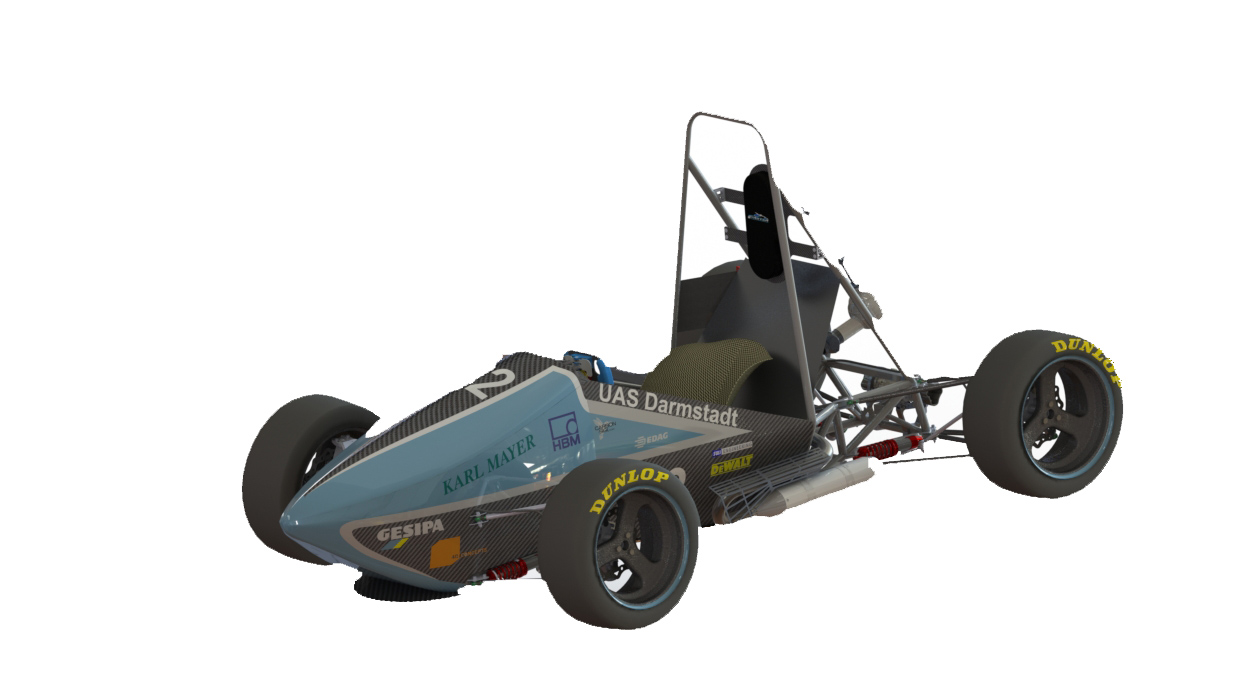

2014
Info
„Back to the Roots“ is our this year’s slogan! This means a light and powerful single cylinder combustion-engine and a simple but effective car to challenge the other teams. Our most prominent features are our carbon-fibre rims and many rapid-prototyped parts which allow us to make our car as light as possible.Of course we give a big thank you to our sponsors and supporters who made this beautiful car and the enormous experiences possible!
Engineering Design Priorities:
single cylinder
weight to power ratio
Car Specifications
General
| Frame Construction | tubular steel standard construktion |
|---|---|
| Material | E355 |
| Overall Length (mm) | 2900 |
| Overall Width (mm) | 1600 |
| Overall Height (mm) | 1200 |
| Wheelbase (mm) | 1650 |
| Track Front (mm) | 1260 |
| Track Rear (mm) | 1260 |
| Weight Front (kg) | 113 |
| Weight Rear (kg) | 133 |
| Suspension | Double A-Arm with |
| Tyres | Dunlop 175/505R13 Slick |
| Wheels | 6x13 Steel or 7x13 Carbon |
| Drive Type | chaindrive |
| Differential | Drexler SAE (2010) |
| Cooling | sidemounted radiator |
| Brake System | 4 Disk system with AP Brake-Balancer,AP Masterbrake-Cylinder and AP Caliper |
| Electronics | electric-magnetic shifting system, LED cockpit with rev signal and warning LED's |
Powertrain
| Engine | KTM SX-F450 (2013) |
|---|---|
| Bore (mm) | 95 |
| Stroke (mm) | 63.4 |
| Cylinders | 1 |
| Displacement (ccm) | 449 |
| Compression Ratio | 12.6:1 |
| Fuel System | wasted spark ignition |
| Fuel | 98 octane |
| Max Power (kW) | 12000 |
| Max Torque (Nm) | 7600 |

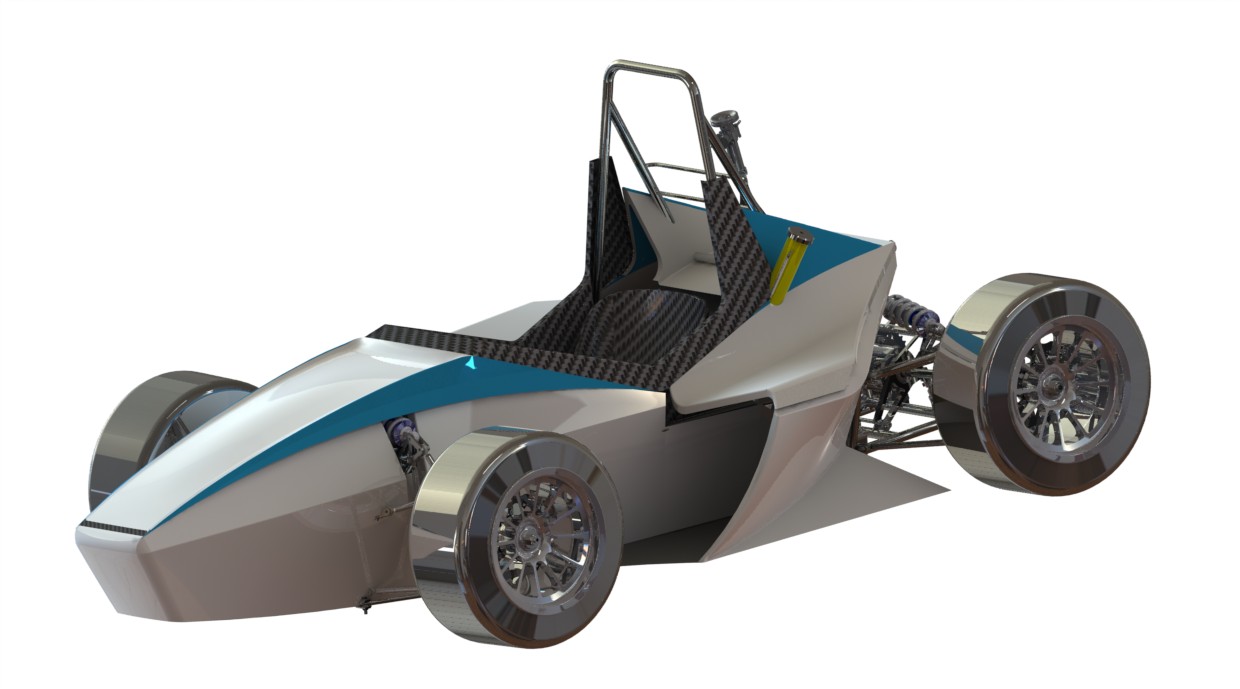

2012
Info
This year the Formula Student Team Darmstadt (FaSTDa) is taking part in the annual event of Formula Student Germany for the second time with its completely new racing car, "F12". Our last year achievements, perfectly established and shown in Italy 2011, were significant weight reduction, up to 190 kg approximately (-10% compared to cars of the previous years), with an increase in engine power and torque. Consequently we have improved our vehicle with innovative components. Those characteristic features are the following: completely revamped suspension geometry with carbon fiber A-Arms and bespoke upright/wheel hubs, an optimized tube frame with increased stiffness, plus a custom pedal unit and steering wheel for the high-level driver ergonomics. The whole team appreciates much internal help and would like to sincerely thank all our sponsors for the great support this year! Regards FaSTDa
Car Specifications
General
| Frame Construction | Front and rear tubular space frame |
|---|---|
| Material | 1020 steel round tubing .75 |
| Overall Length (mm) | 2685 |
| Overall Width (mm) | 2079 |
| Overall Height (mm) | 1141 |
| Wheelbase (mm) | 1650 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1250 |
| Weight Front (kg) | 112 |
| Weight Rear (kg) | 142 |
| Suspension | Double unequal length A-Arm. Push rod actuated spring and damper |
| Tyres | 8x13, 65mm offset Keizer |
| Wheels | 175/505R13, Dunlop SP Sport |
| Drive Type | chain drive |
| Differential | Drexler Formula Student 2010 V.1 bevel differential gear |
| Cooling | side mounted |
| Brake System | 4-Disk System self developed rotors with 240 mm diameter, adjustable brake balance, AP Racing CP2623 |
| Electronics | -- |
Powertrain
| Engine | KTM LC4 |
|---|---|
| Bore (mm) | 101 |
| Stroke (mm) | 76 |
| Cylinders | 1 |
| Displacement (ccm) | 609 |
| Compression Ratio | 10,5:1 |
| Fuel System | MPI,1 injector, Bosch fuel pump, MoTeC ECU |
| Fuel | 98 octane unleaded gasoline |
| Max Power (kW) | 8500 |
| Max Torque (Nm) | 6900 |
2010
Info
The Formula Student Team Darmstadt (FaSTDa) will attend this year's Formula Student Germany event for the first time with its completely new race car, the "F10". Despite a budget cut by nearly 70% and a reduction of man-power we were able to design and build a completely new vehicle. Our major achievements were a significant weight reduction down to approximately 250kg (-20% compared to last year’s car) and an increase in engine power and torque. Furthermore, the vehicle features a variety of innovative components, such as a completely revamped suspension geometry with carbon fiber A-Arms and bespoke uprights/wheel hubs, an optimized tube frame with increased stiff-ness and a custom pedal unit and steering wheel for top-level driver ergonomics.The whole team would like to thank all our sponsors for this year's great support!Regards FaSTDa
Car Specifications
General
| Frame Construction | cold drawn steel tube construction |
|---|---|
| Material | Stainless Steel 1020 |
| Overall Length (mm) | 2688 |
| Overall Width (mm) | 2080 |
| Overall Height (mm) | 1138 |
| Wheelbase (mm) | 1650 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1250 |
| Weight Front (kg) | 121 |
| Weight Rear (kg) | 138 |
| Suspension | Double unequal length A-Arm. Push rod actuated spring and damper |
| Tyres | 180/530-13 Kumho |
| Wheels | 180/530-13 Kumho |
| Drive Type | Chain |
| Differential | Qaife TorSen LSD |
Powertrain
| Engine | KTM LC4 |
|---|---|
| Bore (mm) | 101 |
| Stroke (mm) | 78 |
| Cylinders | 1 |
| Displacement (ccm) | 609 |
| Compression Ratio | 10,5:1 |
| Fuel System | MPI, 1 injector, Bosch fuel pump, Trijekt ECU |
| Fuel | 98 Octane Gasoline |
| Max Power (kW) | 7500 |
| Max Torque (Nm) | 4000 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2022.07 | 24 |
5. |
10. |
21. |
16. |
6. |
- |
8. |
- |
4. |
6. |
1. |
-10.00 |
663.40 |
|
| 2022.07 | 24 |
2. |
13. |
4. |
4. |
5. |
- |
9. |
- |
2. |
2. |
1. |
0.00 |
795.49 |
|
| 2022.07 | 18 |
1. |
15. |
5. |
2. |
5. |
- |
4. |
- |
1. |
1. |
1. |
-10.00 |
915.15 |
|
| 2021.08 | 21 |
5. |
2. |
6. |
6. |
6. |
- |
5. |
- |
8. |
6. |
6. |
0.00 |
764.22 |
|
| 2021.08 | 17 |
5. |
1. |
7. |
2. |
- |
- |
5. |
- |
3. |
7. |
2. |
0.00 |
546.40 |
|
| 2021.08 | 19 |
8. |
1. |
5. |
3. |
5. |
- |
10. |
- |
3. |
- |
- |
0.00 |
436.41 |
|
| 2019.08 | 60 |
7. |
36. |
20. |
26. |
16. |
- |
35. |
- |
18. |
10. |
2. |
0.00 |
664.08 |
|
| 2019.08 | 34 |
24. |
25. |
24. |
22. |
- |
- |
- |
- |
13. |
- |
- |
0.00 |
238.80 |
|
| 2019.07 | 25 |
16. |
18. |
4. |
11. |
15. |
- |
15. |
- |
- |
- |
- |
0.00 |
290.55 |
|
| 2018.08 | 37 |
10. |
2. |
14. |
18. |
17. |
- |
27. |
- |
12. |
10. |
4. |
0.00 |
594.30 |
|
| 2018.08 | 57 |
16. |
23. |
40. |
19. |
29. |
- |
43. |
- |
16. |
14. |
8. |
0.00 |
606.33 |
|
| 2017.08 | 64 |
24. |
25. |
7. |
28. |
25. |
- |
37. |
- |
18. |
- |
- |
0.00 |
374.75 |
|
| 2017.08 | 33 |
17. |
18. |
5. |
6. |
4. |
- |
21. |
- |
3. |
- |
- |
0.00 |
471.90 |
|
| 2017.07 | 38 |
10. |
26. |
23. |
15. |
21. |
- |
21. |
- |
12. |
9. |
1. |
0.00 |
617.80 |
|
| 2016.08 | 36 |
19. |
28. |
25. |
20. |
14. |
- |
23. |
- |
11. |
- |
- |
0.00 |
299.40 |
|
| 2016.08 | 73 |
12. |
53. |
68. |
39. |
34. |
- |
36. |
- |
11. |
12. |
4. |
0.00 |
572.85 |
|
| 2016.08 | 25 |
7. |
6. |
18. |
12. |
6. |
- |
9. |
- |
6. |
4. |
- |
0.00 |
677.36 |
|
| 2015.09 | 43 |
21. |
28. |
42. |
25. |
2. |
- |
20. |
- |
9. |
24. |
- |
0.00 |
367.93 |
|
| 2015.08 | 20 |
17. |
19. |
19. |
14. |
13. |
- |
13. |
- |
13. |
13. |
- |
0.00 |
258.90 |
|
| 2015.08 | 71 |
53. |
33. |
- |
34. |
- |
- |
33. |
- |
29. |
- |
- |
0.00 |
208.40 |
|
| 2014.09 | 44 |
17. |
30. |
26. |
32. |
19. |
- |
27. |
- |
21. |
9. |
3. |
-50.00 |
498.07 |
|
| 2014.08 | 19 |
14. |
6. |
9. |
16. |
17. |
- |
14. |
- |
15. |
9. |
- |
0.00 |
282.00 |
|
| 2014.08 | 74 |
54. |
58. |
60. |
40. |
27. |
- |
56. |
- |
41. |
- |
- |
0.00 |
214.73 |
|
| 2013.09 | 42 |
27. |
20. |
29. |
21. |
- |
- |
30. |
- |
20. |
26. |
- |
0.00 |
245.30 |
|
| 2013.08 | 39 |
39. |
34. |
- |
- |
- |
- |
- |
- |
- |
- |
- |
-5.00 |
32.50 |
|
| 2012.08 | 76 |
71. |
55. |
71. |
70. |
- |
- |
- |
- |
57. |
- |
- |
0.00 |
113.14 |
|
| 2012.07 | 37 |
17. |
20. |
18. |
31. |
13. |
- |
26. |
- |
14. |
14. |
11. |
-5.00 |
477.30 |
|
| 2011.09 | 49 |
9. |
36. |
39. |
32. |
31. |
- |
36. |
- |
18. |
8. |
1. |
0.00 |
567.00 |
|
| 2011.07 | 27 |
23. |
25. |
25. |
25. |
17. |
- |
18. |
- |
19. |
- |
- |
0.00 |
150.50 |
|
| 2010.09 | 41 |
32. |
24. |
25. |
33. |
33. |
- |
- |
- |
29. |
- |
- |
0.00 |
206.65 |
|
| 2010.08 | 75 |
68. |
59. |
51. |
64. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
149.45 |
|
| 2009.09 | 36 |
34. |
19. |
- |
33. |
23. |
- |
29. |
- |
26. |
- |
- |
0.00 |
128.81 |
|
| x 32 | |||||||||||||||
