Team Details

Aristotle Racing Team

University	Aristotle University of Thessaloniki Αριστοτέλειο Πανεπιστήμιο Θεσσαλονίκης local GR Thessaloniki U short 141
Location	Thessaloniki, Greece
Homepage	https://aristotleracing.gr/
Social Media
DV Team	Aristotle University Racing Team Electric & Driverless
EV Team	Aristotle University Racing Team Electric
Short Link	tid.fsg.one/144

Team Description

In summer of 2006, a group of ambitious and imaginative friends, students of the Mechanical Engineering Department at the Faculty of Engineering of Aristotle’s University of Thessaloniki, decided to create a team that could output their knowledge into reality. They managed to design, manufacture, assembly and run a single-seated racecar that complied with FSAE rules. This was the first ever running car constructed in Thessaloniki by students.

ART’s first participation was in the racetrack of Fiorano de Modenese in Italy. During the past five years, ART can name 5 successful participations in the Formula SAE series, including three awards (2009 FS Class 3 Design Winners, 2010 Formula ATA Most Friendly Team and 2011 Acceleration Run-off Winners).

Aristotle Racing Team’s route these past few years has been successful, obtaining various distinctions and building our reputation worldwide. Some of the most important achievements have been the 3rd place in overall classification in September 2012, in Italy’s competition (Varano de Melegari Circuit), as well as the 4th place overall in a total of 45 participants from various countries in the same competition last summer. After a fruitful season in 2014 with three successful participations in European competitions, the team has been renewed and is following a two-year plan, aiming to design, manufacture and assemble a new car for 2016. Part of this plan was to compete in Italy’s competition for 2015, where the designs of the new car were presented, along with some of its parts constructed. The team managed to take the 2nd place overall, receiving positive feedback for its work..

Event Profile

Past Events

2018

Car #312

Info

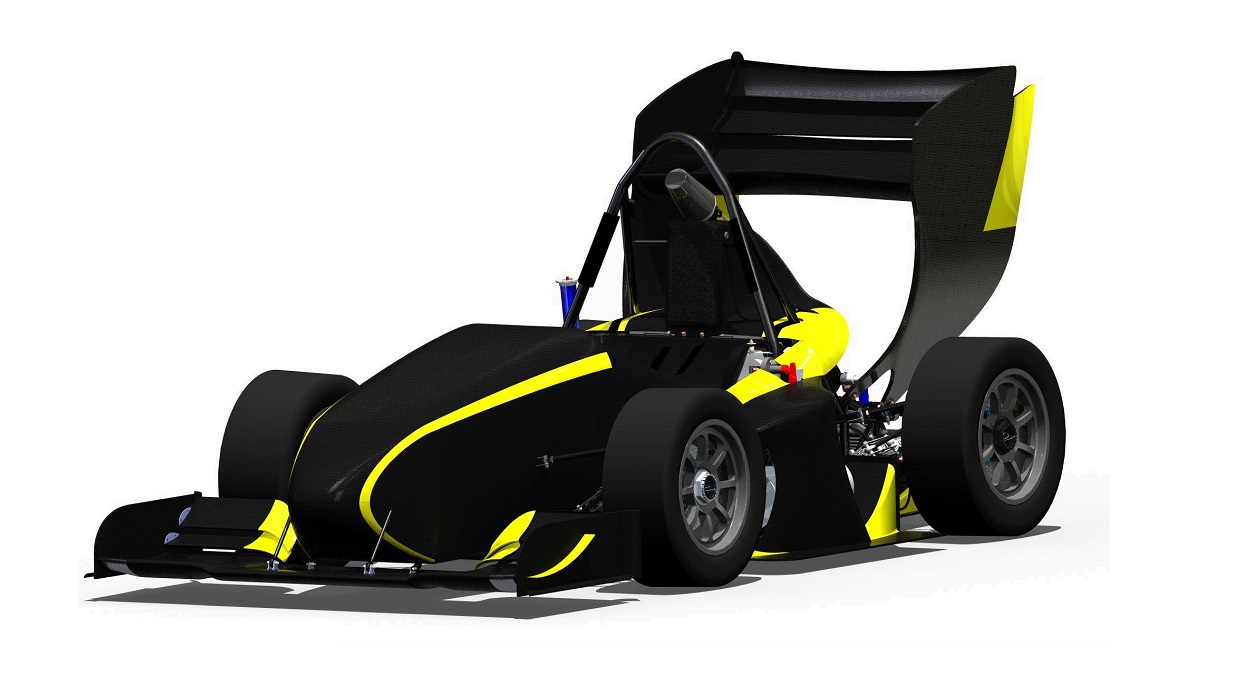

Aristotle Racing Team (ART) was founded in 2006 by a group of mechanical engineering students in Aristotle University of Thessaloniki . The 18 members of the team constructed the race car ART18, the 6th car of the team. ART18 is going to participate in three FSAE competitions, FSAE Italy, FS East and FS Germany. Having gathered knowledge and experience over the past years, the team is aiming higher than ever, trying to surpass past achievements and surpass its limits.

Car Specifications

General

Frame Construction	Steel Spaceframe
Material	4130 Steel Tubing 12.7 to 30mm dia, Sheet metal 4130 and Domex 700
Overall Length (mm)	2978
Overall Width (mm)	1394
Overall Height (mm)	1188
Wheelbase (mm)	1535
Track Front (mm)	1170
Track Rear (mm)	1140
Weight Front (kg)	143
Weight Rear (kg)	148
Suspension	Double unequal length A-Arm. Pull Rod actuated. Spring and damper placed on the side
Tyres	20.5x7.0 R13, Hoosier R25B / 20.5x7.0 R13, Hoosier R25B
Wheels	7.0x13, 32mm Offset, 1 piece Mg Rim / 7.0x13, 32mm Offset, 1 piece Mg Rim
Drive Type	Chain 520 X-ring, 4-speed gearbox
Differential	Drexler Limited Slip clutch type, Bias Ratio 3.082:1 power-side, 25 Nm preload
Cooling	Side mounted radiator, 37 degrees inclination, two electric fans, mounted in shroud, electric pump
Brake System	Fully floating ISR discs, 230mm front, 220mm rear, hub mounted, ISR calipers
Electronics	Custom built data logger and telemetry system, 2-way team radio

Powertrain

Engine	Honda CBR 600cc RR (PC 40)
Bore (mm)	67.2
Stroke (mm)	42.5
Cylinders	4
Displacement (ccm)	603
Compression Ratio	12.2:1
Fuel System	Student Designed/Built primary
Fuel	Gasoline
Max Power (kW)	10500
Max Torque (Nm)	8500

2016

Car #312

Info

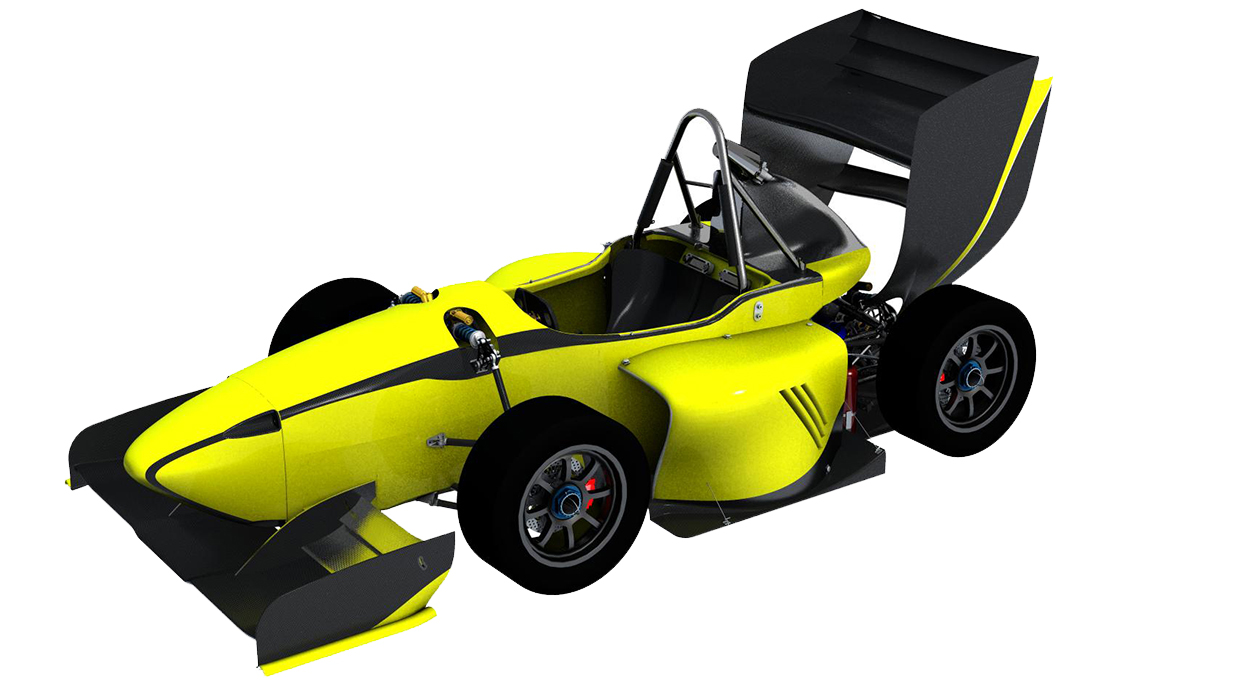

Aristotle Racing Team(ART) celebrates its 10th anniversary with the manufacture of ART16, the 5th car of the team. The team consists of 33 members from the Aristotle University of Thessaloniki. ART16 is going to participate in three FSAE races, FSAEI, FSG and FSH 2016 events, and hopes to repeat past achievements. Basic changes of the new racecar are the wide use of carbon for weight reduction and the use of full aerodynamic package for better grip.

Engineering Design Priorities:

Weight reduction Driveability Maintaning low CoG Reliability Aggresiveness 10 Years Art

Car Specifications

General

Frame Construction	Monocoque front with tubular steel space frame rear
Material	Prepreg Carbon Fiber/Aluminum Honeycomb/Carbon And Aluminum inserts
Overall Length (mm)	3032
Overall Width (mm)	1400
Overall Height (mm)	1192
Wheelbase (mm)	1535
Track Front (mm)	1170
Track Rear (mm)	1140
Weight Front (kg)	136
Weight Rear (kg)	143
Suspension	Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper
Tyres	Hoosier 20.5x7.0-13 R25B/ Hoosier 20.5x7.0-13 R25B
Wheels	7.0x13-32mm offset-1 pc Mg OZ Racing Rim/ 7.0x13-32mm offset-1 pc Mg OZ Racing Rim
Drive Type	Chain 520 X-Ring, 4 speed Gearbox
Differential	Drexler Limited Slip Differential Formula Student 2010
Cooling	Side mounted radiator, 37 degrees inclinatio, two electric fans, mounted in shroud, electric pump
Brake System	Fully floating ISR discs, 230mm front, 220mm rear, hub mounted, ISR calipers, AP RacIing cylinders
Electronics	Custom built data logger and telemetry system, 2-way team radio.

Powertrain

Engine	Honda CBR 600RR PC-40
Bore (mm)	67
Stroke (mm)	42.5
Cylinders	4
Displacement (ccm)	599
Compression Ratio	12.2:1
Fuel System	Student design/build
Fuel	Gasoline
Max Power (kW)	11500
Max Torque (Nm)	8500

2014

Car #12

Info

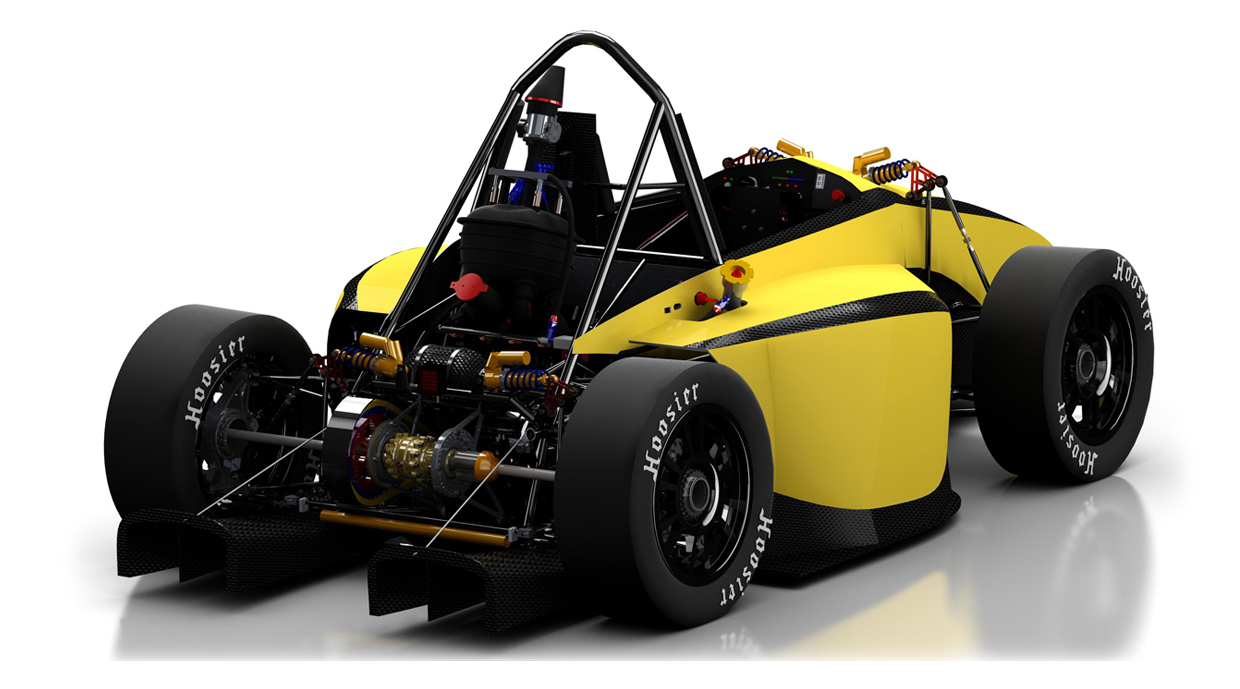

Aristotle Racing Team (ART) was formed in 2006 by a group of mechanical engineering students at the Aristotle University of Thessaloniki, Greece. Having gathered knowledge and experience over the past years, ART managed -among others- to achieve a 3rd place overall at FSAEI 2012, with its third car. The current team consists of 18 members and is developing its fourth single-seater for the racing tracks of FSG, FSH and FSAEI 2014 events, with main targets the weight reduction and reliability.

Engineering Design Priorities:

Weight reduction Reliability Improved dynamic behavior Drivability Maintaining low CoG

Car Specifications

General

Frame Construction	Front and rear Tubular space frame
Material	4130 steel round tubing 12,7mm to 30mm diameter
Overall Length (mm)	2920
Overall Width (mm)	1420
Overall Height (mm)	1081
Wheelbase (mm)	1575
Track Front (mm)	1180
Track Rear (mm)	1150
Weight Front (kg)	146
Weight Rear (kg)	152
Suspension	Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper.
Tyres	20.5x7.0-13 / 20.5x7.0-13 Hoosier
Wheels	7.0x13, +22mm offset, 1 pc Al rim / 7.0x13, +22mm offset, 1 pc Al rim
Drive Type	Chain 520 X-Ring, 4-speed gearbox
Differential	Drexler Limited Slip Formula Student 2010
Cooling	side mounted radiator, 844 cfm fan mounted to shroud, electric water pump
Brake System	4-Disk system, self developed floating, Hardox, hub mounted rotors, AP Racing cylinders, ISR caliper

Powertrain

Engine	2007 Honda CBR 600 RR (PC40)
Bore (mm)	67
Stroke (mm)	42.5
Cylinders	4
Displacement (ccm)	599
Compression Ratio	12.2:1
Fuel System	Student designed/built, primary and secondary
Fuel	Gasoline
Max Power (kW)	11000
Max Torque (Nm)	7700

2012

Car #12

Info

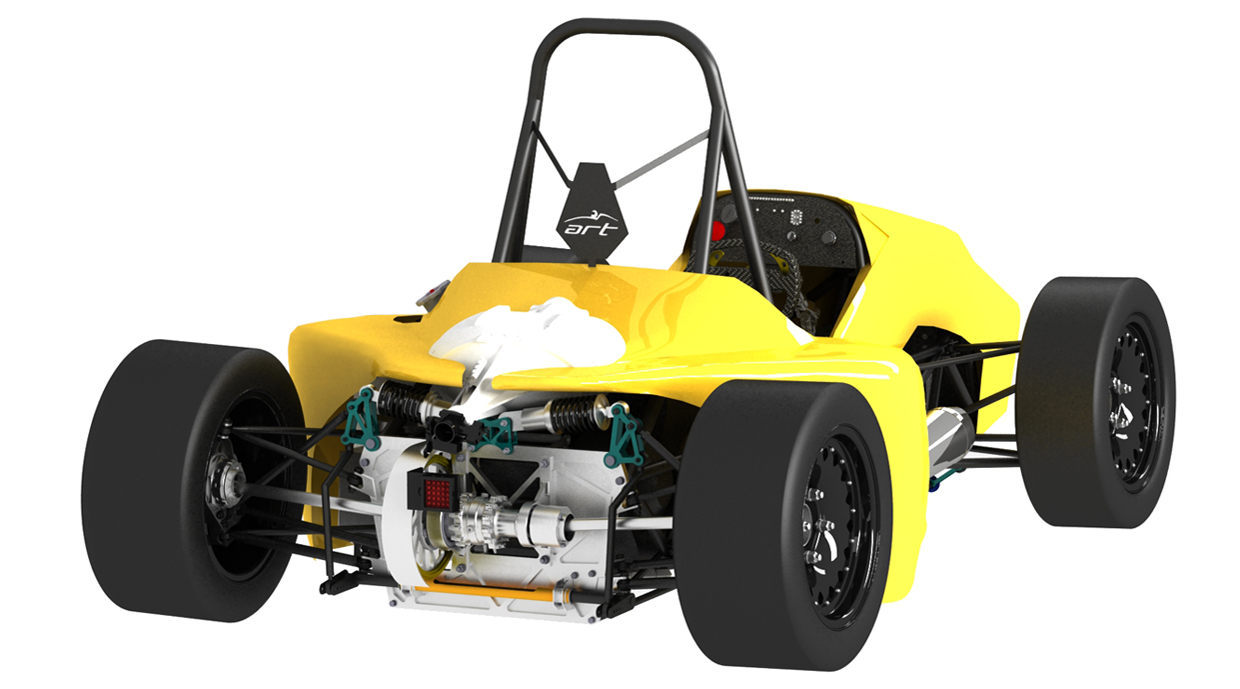

Aristotle Racing Team (ART) was formed in 2006 by a group of mechanical engineering students at the Aristotle University of Thessaloniki, Greece. Since its creation ART has managed to develop two racing vehicles which competed in several European FSAE events. Having gathered knowledge and experience over the past years, ART has set forth on designing its third project. The current team consists of 26 members and aims at developing a competitive single-seater for the racing track of Hockenheimring in Germany. The team’s design philosophy is centered around a lightweight and reliable construction. The latest vehicle features a chromo-moly tubular frame and redesigned suspension geometry. The frame houses a HONDA CBR engine accompanied by a team-built dry sump lubrication system. It is the ambition of the team to succeed in its first FSG appearance by achieving a good overall position.

Car Specifications

General

Frame Construction	Tubular space frame with rear aluminum plate
Material	25CrMo4 steel round tubing 14mm to 30mm and 7075 T651 aluminum plate
Overall Length (mm)	2691
Overall Width (mm)	1387
Overall Height (mm)	1082
Wheelbase (mm)	1600
Track Front (mm)	1230
Track Rear (mm)	1180
Weight Front (kg)	138
Weight Rear (kg)	162
Suspension	Double unequal length A-Arm. Pull(Fr)-Push(Rr) rod actuated horizontally oriented spring and damper
Tyres	6.2x20 R13 Avon A45 / 7.2x20 R13 Avon A45
Wheels	6.0x13, +18mm offset, 2 pc Alloy Rim / 8.0x13, +31mm offset, 2 pc Alloy Rim
Drive Type	chain #525
Differential	Drexler Limited Speed Formula Student 2010
Cooling	1 radiator with electric water pump and 1 fan both thermostatic controlled
Brake System	4-Disk system self designed rotors with 240(Fr)-220(Rr)mm outer diameter,adjustable brake balance
Electronics	Student design/built Dashboard ECM,Traction-Launch control,Electromagnetic Shifting System,MOTEC ECU

Powertrain

Engine	Modified Honda CBR 600 RR(2007) 4 cylinder ( PC40)
Bore (mm)	67
Stroke (mm)	42.5
Cylinders	4
Displacement (ccm)	599
Compression Ratio	13.5:1
Fuel System	Student des/built, fuel injection, sequential injection
Fuel	ethanol
Max Power (kW)	10400
Max Torque (Nm)	7600
