Team Details

Ashwa Racing

University	R.V.College of Engineering IN Bangalore RVCE short 100
Location	Bangalore, India
DV Team	ASHWA RACING
EV Team	Team Chimera
Short Link	tid.fsg.one/103

Team Description

Nov 22, 2003 was the day the dream was conceived. Our college campus has a dedicated
coffee shop outlet that markets with the punch line “a lot can happen over coffee”. And
that’s just what happened. A group of four seniors thought about having their own
Formula SAE racing team, the first in India
The fire raging, the first obstacles were how the team could generate the finance for such
a large budget tuning to an amount of nearly Rs. 22 lacs. Several door to door knocking
sponsorship drives proved to be unsuccessful. Then the team members realized that they
should contribute funds to the team to setup a working prototype which would generate
interest among people.
When work commenced, the team was divided into different sub modules giving it a
flavour of a corporate environment. The basic modules were categorized into
administration, sponsorship & marketing, finance, design management, engineering
management, logistics & procurement and Workshop management. Further the team was
divided into various technical areas (i.e) chassis team, brakes & wheel team, suspension
team, engine team and drive-train team.

Event Profile

Past Events

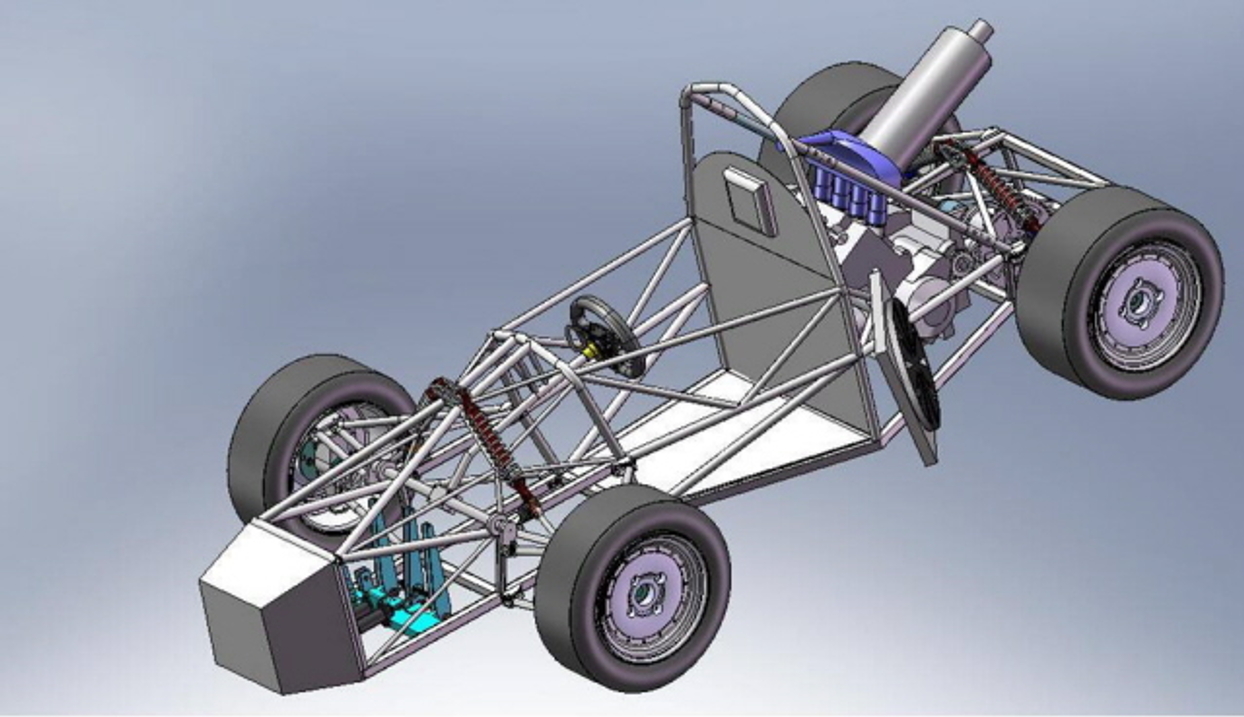

2008

Car #45

Info

Ashwa Racing at RV College of Engineering, Bangalore, India is a team of about 30 members from various technical disciplines. Since the team's inception in 2003,we have participated twice in FSAE Australasia and also in FSG 2007. After pinpointing the areas for improvement in our designs, we have come up with the RZ08 for FSG 2008. The major keynote this season has been design optimisation for extensive data acquisition by making use of ANSYS for CFD and FEA analysis and incorporation the Motec M800 ECU.Moreover we have made significant improvement by incorporating racing-specific components in our designs thus improving our performance. The team is a fine blend of experience and fresh members and is very eager to perform at FSG 2008. Our technical advancement and incorporation of high-end components is mainly attributed to the encouragement, trust and support of all our sponsors.

Car Specifications

General

Frame Construction	Tubular space frame using square and circular tubing
Material	Mild steel tubes
Overall Length (mm)	2693
Overall Width (mm)	1488
Overall Height (mm)	1320
Wheelbase (mm)	1803
Track Front (mm)	1302
Track Rear (mm)	1109
Weight Front (kg)	160
Weight Rear (kg)	200
Suspension	Double unequal length A-Arm. Push rod actuated spring and ZF Sachs damper units
Tyres	20.5x6 R13, Hoosier / 20.5x7.5 R13, Hoosier
Wheels	6x13, 3 pc Al Rim / 8.5x13, 3 pc Al Rim
Drive Type	Chain
Differential	Torsen T1 LSD - University SAE Type - TBR 5.0:1
Cooling	Side pod mounted radiator with thermostatic controlled electric fan
Brake System	4-disk system hub mounted 1040 Steel alloy-240mm outer dia,self-offset,vented,Willwod PS1 dual piston calipers
Electronics	Motec M800 Engine Management System with custom wiring harness

Powertrain

Engine	2003 HONDA F4i 600cc
Bore (mm)	42.5
Stroke (mm)	67
Cylinders	4
Displacement (ccm)	599
Compression Ratio	12.0:1
Fuel System	student des/built,Motec tuned programable fuel injection,sequential
Fuel	97 Octane Unleaded gasoline
Max Power (kW)	9000
Max Torque (Nm)	7200

2007

Car #45

No media information available for this year.

Car Specifications
